Adtran T1 TSU ACE

Single V.35 DTE interface, Nx56 or Nx64 operation for data rates to 1.536 Mbps, Auto and Manual D4(SF) or ESF framing support, B8ZS or AMI line coding, Easy-to-use front panel keypad for unit configuration, Remote configuration from host TSU via FDL or 8k in-band

LOW-COST T1/FT1 DSU/CSU



Product Features

  • Single V.35 DTE interface
  • Nx56 or Nx64 operation for data rates to 1.536 Mbps
  • Auto and Manual D4(SF) or ESF framing support
  • B8ZS or AMI line coding

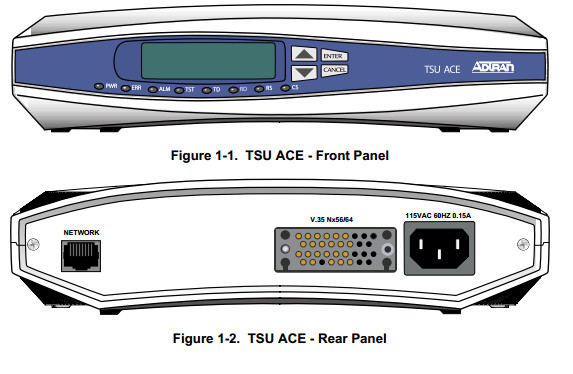

  • Easy-to-use front panel keypad for unit configuration
  • Remote configuration from host TSU via FDL or 8k in-band
  • Local and remote loopback capability
  • Extensive built in test capabilities
  • Standard 5-year warranty



The ADTRAN TSU ACE is a low-cost, full-featured T1/FT1 data service unit/ channel service unit (DSU/CSU). The TSU ACE provides an interface between T1 or Fractional T1 service and the end user's data terminal equipment (DTE) for applications such as LAN-to-LAN bridging, Frame Relay circuit termination and video-conferencing. The TSU ACE provides access to traditional dedicated point-to-point T1 services as well as network termination for Frame Relay.

Housed in a compact, durable plastic housing the TSU ACE supports synchronous data rates from 56 kbps to 1.536 Mbps at Nx56 or Nx64 kbps. A single V.35 physical interface provides a connection to the end user's DTE equipment.

For configuration and testing, the TSU ACE provides the capability for remote control from a host TSU through the T1 FDL channel. If the FDL channel is unavailable, the host TSU can use 8 kbps of the data traffic to provide configuration and control of the remote TSU ACE. The in-band control channel is used on an as-needed basis and is automatically controlled by the host TSU.

The TSU ACE responds to standard local and remote loopback commands from the telephone company central office. In addition, the user has several built-in test capabilities including V.54 remote loopback and 511 BERT test patterns. Complete configuration and performance data is available from the front panel keypad and two-line by 16-character LCD display.

ADTRAN provides several T1 DSU/CSUs for a variety of customer applications. Additional products in the TSU family include the TSU LT, TSU ESP, TSU 100, TSU 120, TDU 120e and the TSU 600. These T1/FT1 DSU/CSUs offer flexibility, modularity and end user configuration. The modular approach allows the ADTRAN TSU family to serve in point to point T1 applications with a mixture of voice, data and video.

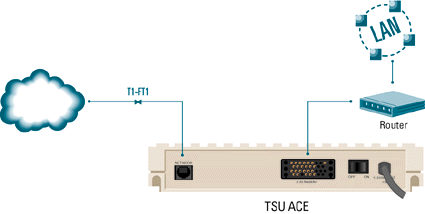

TSU ACE APPLICATION EXAMPLE








Product Specifications
Product Name TSU ACE 2nd Gen T1/FT1 DSU/CSU Single V.35 Connector
Product Type T1 CSU/DSU
Ports 1 x 34-pin Serial V.35 Mechanical

8-pin RJ-48C
Form Factor Desktop

Wall Mountable
Data Transfer Rate 56 Kbps to 1.54 Mbps DTE

1.54 Mbps Network
Dimensions 1.5" Height x 9.0" Width x 6.3" Depth
Electrical Interface CCITT V.35
Certifications & Standards
  • FCC part 15
  • Class A
  • FCC Part 68
  • Industry Canada CS03
  • UL
  • CUL
Frequency 60 Hz
Humidity Up to 95% Non-condensing Relative Humidity
Data Encoding AMI/B8ZS
Power Consumption 5 W
Diagnostic Features
  • Local: Payload/Line Loopback, DTE Loopback
  • Remote: Payload/Line Loopback, V.54 (DTE) Loopback
  • Network: CSU and DSU loopbacks
Temperature 32F (0C) to 122F (50C) Operating

-4F (-20C) to 158F (70C) Storage
Input Voltage 115 V AC
Additional Information
  • Auto and Manual D4(SF) or ESF framing support
  • Easy to use front panel keypad for unit configuration
  • Remote configuration from host TSU via FDL or 8k in-band
  • Local and remote loopback capability
  • Extensive built in test capabilities
  • IEC standard power connection
  • DTE Transmit Clock: Automatic
  • Performance Monitor & Data: BPVs/CRCs, ES, SES, UAS, % AS, % EFSEC, Alarms, Errors
  • Reports: NI information stored for last 24 hours in 15 minute increments
  • PRMS: ANSI Performance Report Messages (User selectable)
  • Framing:
    - SF/ESF
    - Auto Detection
  • ESF Format:
    - AT&T 54016
    - ANSI T1.403
  • DSO Assignment:
    - Contiguous
    - Alternating
  • T1 Transmit Timing:
    - Network Loop Timed
    - Internal
    - DTE
  • Built-In Test Patterns:
    - 511 (active DS0s) with error insert available
    - 1:8 (all DS0s)
    - All 1's (all DS0s)
    - All 0's (all DS0s)
System Requirements
  • Remote Configuration:
    - Required Software:
    - ADTRAN T-Watch Pro
    - Required Hardware (one of the following)
    - TSU LT (1203060L1)
    - TSU (1200060L2)
    - TSU RM (1202077L1)
    - TSU ESP (1200169L1)
Standard Warranty 5 Year - North American




Ordering Information
