Harden Fiber RS232-RS422 modem AC/VDC

Industrial rated/grade  Fiber Optic modem
temperature rated, 12 to 230 VAC or DC power

DESCRIPTION

The IFS D1010 series data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS-422 data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. The transceivers are also compatible with the IFS D2100 series drop and repeat data transceivers when used as line terminating devices. Models within this series are available for use with multimode or single-mode optical fiber. Plug and Play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power and transmit/receive data status indicating LED’s for monitoring proper system operation. The modules are available in either stand-alone or rack mount versions.



• Access Control Systems

• Building Automation and
   Environmental Control Systems

• Computer/Data Equipment

• Fire & Alarm Systems

• Traffic Signal Control Equipment

FEATURES


• Meets EIA RS-232/422 Specifications (Simplex or Duplex)

• Meets NEMA TS-1/TS-2 & Caltrans Specifications
   (Temperature/Humidity, Shock/Vibration, and Voltage Transient Protection)

• Point-to-Point Topology

• Transparent to Data Encoding / Compatible with Major Data Protocols

• Data rates up to 100 kbps

• No In-field Electrical or Optical Adjustments Required

• Power, Transmit and Receive Data Status LED Indicators

• Integrated WDM for Greater Product Reliability

• Automatic Re-settable Solid-State Current Limiters

• Hot-Swappable Rack Modules

• Distances up to 26 Miles (49 km)

• Lifetime Warranty



SPECIFICATIONS







DATA



Data Interface:

RS-232 (data lines only) or



RS-422 (See note)









Data Rate:

DC-1.5 Mbps (NRZ)

Operating Mode:

Asynchronous, simplex or full duplex

Bit Error Rate:

<1 in 109





WAVELENGTH



D1010:

850 nm

D1020:

1300 nm (Multimode)

D1025:

1300 nm (Single mode)

D1010WDMA:

850/1300 nm

D1010WDMB:

1300/850 nm





NUMBER OF FIBERS



D1010/D1110/D111:

2

D1020/D1120:

2

D1025/D1125:

2

D1010/D1110WDMA:

1

D1010/D1110WDMB:

1





CONNECTORS



Optical:

ST

Data and Power:

Terminal Plug with screw clamps


ELECTRICAL& MECHANICAL


Surface Mount: 12 VDC @ 150 mA
Rack: Power From Rack
Number of Rack Slots: 1
Current Protection:  Automatic Re-settable Solid-State Current Limiters
Circuit Board:  Meets IPC Standard
Size (in./ cm.)  (LxWxH):
Surface Mount:  4.2 x 3.5 x 1.0 in., 10.7 x 8.9 x 2.5 cm.
Rack Mount:  7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm.
Shipping Weight:  < 2 lbs./0.9 kg


ENVIRONMENTAL


MTBF:  > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity:  0% to 95% (non-condensing)*

NOTE: The D1010 Series is compatible with some RS-485 (4 wire) systems.

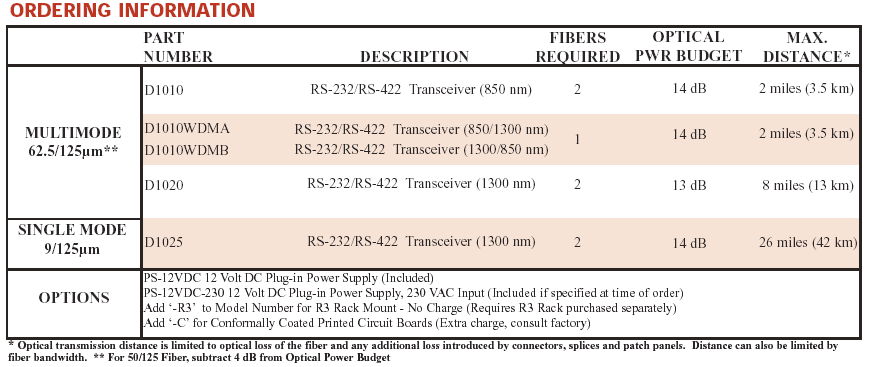

* May be extended to condensation conditions by adding suffix ‘C’ to model
  number for conformal coating.
