Yagi and Panel Directional Antennas:
GREAT FOR REMOTE AND RURAL LOCATIONS!

These antennas can improve your signal strength drastically. Install it on a pole and point the antenna in the direction of the cellular tower.  If you can't see it, then rotate the antenna on the pole until your connected cell phone obtains maximum signal.


Cell & Nextel Yagi     CLR8354 Antenna 7 dB Gain  806-896 Mhz


Image unavailable


4 element yagi. with 7dB (9dBi) directional gain. All exposed elements are coated with ultraviolet resistant polyester giving superior weather protection. Has 8" Female TNC pigtail for connection.   Can withstand 125 mph winds, Easy to install on a pole up to 1-5/8" diameter.  Weighs 1.4 lbs and is 15" long. Includes 14' of RG58 Cable with a Male TNC to connect to the Yagi pigtail and a Male MiniUhf connector to connect to an adapter or booster at the other end. Can be used with  Nextel ATT, Verizon, Cingular and any other cell service in the 824-896 MHZ band. (see other antenna connect options)

CABLE OPTIONS

   33' of RG8X Ultra Cable with TNC Male and FME Female Connectors
   50' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
   100' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors

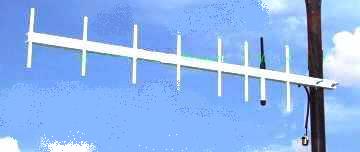

Cell Yagi Antenna    CLR-8358
10 dB Gain  806-896 Mhz



8 element Yagi. 10 dB directional gain. White powder coated antenna, 34" long boom, longest element is 6.8" long. TNC female feedline input on 10cm cable at rear. . Easy to install on a pole.  Weighs 1.25 lbs and is 35" long. Can be used with  Nextel, ATT, Verizon, Cingular and any other cell service in the 806-896 MHZ band. Comes with 14' of RG58 Cable with a Male TNC to connect to the Yagi pigtail and a Male MiniUhf connector to connect to an adapter or booster at the other end. (see other antenna connect options)

CABLE OPTIONS

   33' of RG8X Ultra Cable with TNC Male and FME Female Connectors
   50' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
   100' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors

PCS Panel  Antenna      PC-19013:
10"x10"  11 dB Gain  1850-1990 Mhz






High Quality completely enclosed 11 db (13 dbi)  Gain Panel Antenna for the PCS band service (1850-1990 Mhz). Out performs Yagi PCS Antennas.  Bonded, and sealed in a  UV-stable radome.   TNC female port for easy cabling. Complete with pole mounting bracket for easy installation.
 Weighs 1.73 lbs and is 10"x10"x.75". Can withstand winds up to 140 MPH.   Can be used with Sprint PCS, VoiceStream GSM and  ATT PCS, Verizon PCS, Cingular PCS cell service operating in the 1850-1990 MHZ band. CABLING NOT INCLUDED
(see other antenna connect options)

CABLE OPTIONS

   33' of RG8X Ultra Cable with TNC Male and FME Female Connectors
   50' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
   100' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors

  for Wall Mounting Hardware

Cell Yagi Antenna   CLR-83514Y
15 dBi Gain  824-896 Mhz   63" Long!





Click image to enlarge


14 element Yagi with 13 dB (15 dBi) directional gain. White powder coated antenna, 63" long boom.For the Cellular band service (824-896 Mhz). All elements are welded, Bonded,  Comes with 8" pigtail with a  female TNC connector. Easy to install on a pole up to 2-1/8" diameter.  Weighs 2 lbs.  Can be used with  ATT, Verizon, Cingular and any other cell service in the 824-896 MHZ band.  CABLING NOT INCLUDED
(see other antenna connect options)

CABLE OPTIONS

   33' of RG8X Ultra Cable with TNC Male and FME Female Connectors
   50' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
   100' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors

GSM 900 Yagi Antenna    CLR-8808Y   10dB Gain  880-960 Mhz


8 element Yagi. 10 dB directional gain. White powder coated antenna, 34" long boom, longest element is 6.8" long. TNC female feedline input on 10cm cable at rear. . Easy to install on a pole.  Weighs 1.25 lbs and is 35" long. Can be used with any system operating between 880-960 MHZ including GSM900 and ETACS . Comes with 14' of RG58 Cable with a Male TNC to connect to the Yagi pigtail and a Male MiniUhf connector to connect to an adapter or booster at the other end.
(see other antenna connect options)

CABLE OPTIONS

   33' of RG8X Ultra Cable with TNC Male and FME Female Connectors
   50' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
   100' of LMR400 Low Loss Cable with TNC Male and FME Female Connectors
