Industrial Rated RS-485 Fiber modem

Meets NEMA TS-1/TS-2 & Caltrans Specifications
(Temperature/Humidity, Shock/Vibration, and Voltage Transient Protection)

The IFS D1300 fiber optic modem series data transceivers provide point-to-point transmission of half-duplex (2-wire) EIA RS-485 tri-state data signals over two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. When used as a line-terminating device, these modules are also compatible with the IFS D2300 series drop and repeat data transceivers. Models within this series are available for use with multimode or single-mode optical fiber. Plug and Play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power and transmit/receive data status indicating LED’s for monitoring proper system operation. The modules are available in either stand-alone or rack mount versions.



• Access Control Systems

• Building Automation and Environmental Control Systems

• Computer/Data Equipment

• Fire & Alarm Systems

• Traffic Signal Control Equipment

Features

• Meets EIA RS-485 Specifications

• Meets NEMA TS-1/TS-2 & Caltrans Specifications (Temperature/Humidity, Shock/Vibration, and Voltage Transient Protection)

• Automatic Re-settable Solid-State Current Limiters

• Power, Transmitter and Receiver Data Status LED Indicators

• No In-field Electrical or Optical Adjustments Required

• Data Re-clocking

• Data rates up to 200 kbps NRZ

• Transparent to Data Encoding / Compatible with Major Data Protocols

• Point-to-Point Network Architecture

• 2-Wire (Half-Duplex)

• True Tri-State Output

• Hot-Swappable Rack Modules

• Distances up to 25 Miles (40 km)

• Lifetime Warranty

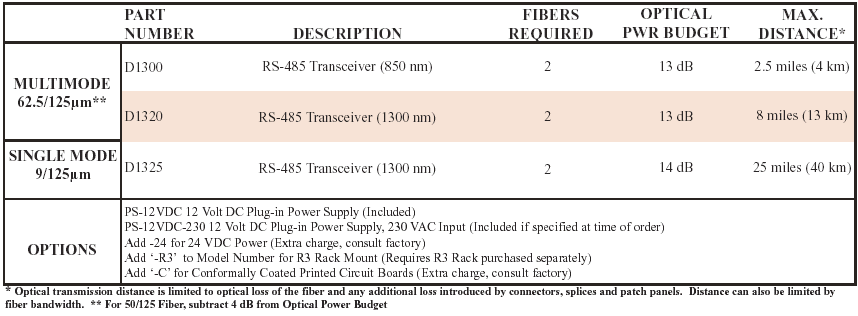

Part Number

                    SPECIFICATIONS

DATA



Data Interface:

RS-485 (2 wire)

Data Rate:

DC - 200 kbps

Total Network



Pulse Distortion:

<1΅s





WAVELENGTH



D1300:

850 nm

All Others:

1300 nm





NUMBER OFFIBERS

2





CONNECTORS



Optical:

ST

Data and Power:

Terminal Plug with screw clamps



DATA



Data Interface:

RS-485 (2 wire)

Data Rate:

DC - 200 kbps

Total Network



Pulse Distortion:

<1΅s





WAVELENGTH



D1300:

850 nm

All Others:

1300 nm





NUMBER OF FIBERS

2





CONNECTORS



Optical:

ST

Data and Power:

Terminal Plug with screw clamps



RS485 4-WIRE TRANSCEIVERS
D1315   MM RS485: (4 WIRE) DATA TCVR, MM, 2 FIBERS
D1315-R3   MM RS485: (4 WIRE) DATA TCVR, MM, 2 FIBERS, RM
D1315-1300   MM RS485: (4 WIRE) DATA TCVR, MM, 2 FIBERS, LD
D1315-1300-R3   MM RS485: (4 WIRE) DATA TCVR, MM, 2 FIBERS, LD, RM
D1315-SM   SM RS485: (4 WIRE) DATA TCVR, SM, 2 FIBERS
D1315-SM-R3   SM RS485: (4 WIRE) DATA TCVR, SM, 2 FIBERS, RM
D1315WDMA   MM RS485: (4 WIRE) DATA TCVR, MM, 1 FIBER, "A" END
D1315WDMA-R3   MM RS485: (4 WIRE) DATA TCVR, MM, 1 FIBER, "A" END, RM
D1315WDMB   MM RS485: (4 WIRE) DATA TCVR, MM, 1 FIBER, "B" END
D1315WDMB-R3   MM RS485: (4 WIRE) DATA TCVR, MM, 1 FIBER, "A" END, RM

RS485 4-WIRE REPEATERS
D2315   MM RS485: (4 WIRE) DATA REPEATER, MM, 2 FIBERS
D2315-R3   MM RS485: (4 WIRE) DATA REPEATER, MM, 2 FIBERS, RM
D2315-1300   MM RS485: (4 WIRE) DATA REPEATER, MM, 2 FIBERS, LD
D2315-1300-R3   MM RS485: (4 WIRE) DATA REPEATER, MM, 2 FIBERS, LD, RM
D2315-SM   SM RS485: (4 WIRE) DATA REPEATER, SM, 2 FIBERS
D2315-SM-R3   SM RS485: (4 WIRE) DATA REPEATER, SM, 2 FIBERS, RM
D2315WDM   MM RS485: (4 WIRE) DATA REPEATER, MM, 1 FIBER
D2315WDM-R3   MM RS485: (4 WIRE) DATA REPEATER, MM, 1 FIBER, RM
