- Extends asynchronous serial transmission from 2km to 120km
over fiber
- In-band management via terminal, GUI or SNMP in AFRM301-CH
chassis
- Software selectable data interface for RS232/ 422/ 485
- Software selectable two wires (half duplex) or four wires
(full duplex) RS485
- Software selectable three or five wires RS232
- Speeds up to 256kbps for RS232 (Async. mode)
- Speeds up to 1Mbps for RS485/422
|
Manual PDF
standalone or
rack mounted
view
racks specs |
Product description

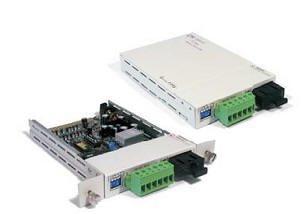

The AFIB1-SERIAL provides a fiber converter
solution to extend RS-232 or RS-485/422 transmission distance up
to 2km over multimode fiber or up to 120km over single mode
fiber. Unit is also available with WDM optical modules for
operation on single strand fiber optic circuits. The converter
is equipped with multiple interface circuits, for connection to
RS-232, RS-423, or RS-485/422 (2 or 4 wire). The AFIB-SERIAL
secures data transmission over EMI resistant fiber at speeds up
to 256kbps for RS-232 or up to 1024kbps for RS-422/485. When the
AFIB1-Serial is linked to the
AFRM301 with AFIB1-SERIAL card, it allows network engineers
to get greater functionality through advanced SNMP features. The
network administrator can manage any converter module from
anywhere on the network, detect any link loss and maintain each
loop.
The uniqueness of AFIB1 series is given by the ability to
convert from standalone media converters to cards for AFRM301
chassis, in matter of minutes. In an always changing and growing
networking environment, such a versatile feature allows network
operators to switch to higher density and aggregation hubs
without the need to purchase new fiber optic converters. This
simple, but so reliable idea, made the AFIB1 series media
converters the perfect choice of media converters by data
carriers and service providers.
There is only one single item (media converter) that does
support all the mentioned serial data interfaces. This provides
customers with an extra level of flexibility when investing in
their network infrastructure.
Specifications
|
Interfaces: |
6 pin screw block
connector for RS-485/RS-232/RS-422 serial
asynchronous port and SC, ST or FC 155M
fiber port |
| Operating
wavelength: |
1310nm or 1550nm, MM,
SM, WDM |
| Operating
distance: |
2Km on 62.5/125um
fiber, up to 120Km on 9/125um fiber |
| Optical connector: |
SC, ST or FC
available |
| Front LEDs: |
PWR, Data, Test,
Fiber Link |
| Power: |
External 90-260V AC
switching adapter 12VDC@1A with NEMA1-15(2
blades only), US type main plug |
| Temperature: |
0 — 50°C (Operating);
0 — 70°C (Storage) |
| Humidity: |
20 — 80% non
condensing (Operating); 0 — 90% (Storage) |
| Consumption: |
less than 5W |
| Dimensions(WxDxH): |
85.6mm x 122.6mm x
20mm |
| Weight: |
310g (without AC
adapter) |
| Compliance: |
CE, FCC Class A |
| MTBF: |
65,000 hours |
Application
Manual PDF
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| AFIB1-SERIAL-ASC2F |
2Km |
1310nm |
-20 |
-31 |
11 |
| AFIB1-SERIAL-ASC15F |
15Km |
1310nm |
-24 |
-35 |
11 |
| AFIB1-SERIAL-ASC30F |
30Km |
1310nm |
-15 |
-35 |
20 |
| AFIB1-SERIAL-ASC50F |
50Km |
1310nm |
-8 |
-36 |
28 |
| AFIB1-SERIAL-ASC80F |
80Km |
1550nm |
-5 |
-34 |
29 |
| AFIB1-SERIAL-ASC120F |
120Km |
1550nm |
0 |
-35 |
35 |
| AFIB1-SERIAL-ASC20AF |
20Km |
Tx:1310nm Rx:1550nm |
-15 |
-32 |
17 |
| AFIB1-SERIAL-ASC20BF |
20Km |
Tx:1550nm Rx:1310nm |
-18 |
-32 |
14 |
| AFIB1-SERIAL-ASC40AF |
40Km |
Tx:1310nm Rx:1550nm |
-7 |
-32 |
25 |
| AFIB1-SERIAL-ASC40BF |
40Km |
Tx:1550nm Rx:1310nm |
-8 |
-32 |
24 |
| AFIB1-SERIAL-ASC60AF |
60Km |
Tx:1310nm Rx:1550nm |
-5 |
-34 |
29 |
| AFIB1-SERIAL-ASC60BF |
60Km |
Tx:1550nm Rx:1310nm |
-5 |
-34 |
29 |
| AFIB1-SERIAL-ASC80AF |
80Km |
Tx:1310nm Rx:1550nm |
-2 |
-34 |
32 |
| AFIB1-SERIAL-ASC80BF |
80Km |
Tx:1550nm Rx:1310nm |
-2 |
-34 |
32 |
