CDMA, TDMA, PCS & GSM 1900

DA4000

Provides amplification of transmit and receive signals for improved cellular phone use, greatly enhancing range and system access while decreasing the number of dropped calls in areas where signals are weak. Increases cellular performance gain up to 20 dB (add our high performance cellular antenna for maximum range and gain).

• Boosts low-power digital cell phone up to 500%
• Increases range
• Reduces dropped calls and signal fades
• Easy installation for boat, vehicle, RV, home or office
• FCC approved, FCC ID: PZODA4000
• Amplifier Dimensions: 4.5" l x 4.0" w x 1.25" h (114mm x 102mm x 32mm)
• Weight: 11.5 oz (.345 kg)
• Power Cord Length: 76" (193 cm)
• Power Cord Termination: Fused cigarette lighter (from 13.5 vdc power source)
• Internal Fuse: 3A
• Frequency:
    Uplink: 824-849 MHz and 1850-1910 MHz
    Downlink: 869-895 MHz and 1930-1990 MHz
• Impedance: 50 ohms
• Max Input Power : 0.6w
• Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz)
• RF Connections:
    Antenna Port: Mini-UHF Female
    Phone Port: Mini-UHF Female
    DC Power: Coaxial ID = 2.1mm, OD = 5.5mm (center positive)
• Indicator: Green LED indicating power on
• Power Switch: Slide switch toward LED = ON

Made to use with cellular systems: CDMA, TDMA, PCS & GSM 1900. Compatible with dual band and tri-mode phones.

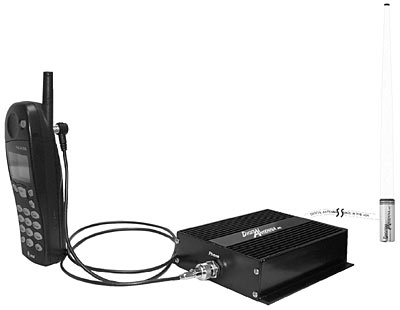

Use an adapter cable to connect cell phone to amplifier.

ordering part #

• DA4000 - Cellular Amplifier
