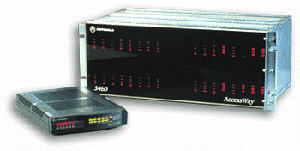

3460Fast'R Modem

Codex/Motorola/Telenetics modem  3460Fast'R - in stock

33.6, 31.2, 28.8, 26.4, 24.0, 21.6, 19.2,16.8, 14.4, 12.0, 9.6, 7.2, 3.8, 2.4, 1.2Kbps 300 bps

 The born again
Telenetics 3460Fast'R
modem family

The T3460 FastR Series of network managed V.34 modems offers the performance and reliability you've come to expect from Telenetics, a worldwide leader in high speed analog technology. Integrating V.34 standard technology, the FastR modems offer optimum performance over any telephone circuit with speeds up to 33.6Kbps and actual throughput up to 230.4Kbps.

Features & Benefits | Specifications| Documentation

New Fax Beta Software
Release 4.0 offers all of the features/functionality of the T3460 Fast'R modem with the addition of fax support. The T3460 Fast'R modem supports Class 1 and Class 2.0 fax interfaces. Class 2.0 support is unique in that it can auto-detect incoming data (RAS) calls from fax calls!

At-a-glance status shows modem performance. Provides configured and actual line rate and throughput. The modem daughter card has two LEDs on the rear panel.

Telenetics Adaptive Rate System (ARS) Automode, Autobaud
Years of Telenetics modem experience have produced one of the industry’s best algorithms for selecting the optimum modulation scheme, the highest DTE rates, and automatically falling forward and back data rates to ensure the highest error free data throughput
Extensive security features
Controls unauthorized access - freezes out hackers
Integral Circuit Quality Monitoring System (CQMS)
Real time line statistics for pro-active network management
V.54 diagnostic test suite
Industry standard tests isolate any degradation in network performance
Telenetics' Customer Support
Service and support worldwide when you need it
Compliance to Industry Standards
Ensures interoperability and compatibility.
Complies to Relevant Safety & Emissions Standards
Available world wide.
Flash Memory
Easy upgrade of T3460 Fast'R software releases.
Fast'RVu Windows based PC Application Software
Simple and quick installation of central sites - in just minutes!
Pull-down, menu driven GUI Interface for configuration, test and real time modem status and line quality of both local and remote modems saves valuable time and costly mistakes - anyone can easily set-up and monitor the T3460 Fast'R modems.
9000 UX or PC SNMP management
Full management including extensive user programmable alarms on a wide variety of operational and performance parameters. Reports and statistics on faults and utilization, facilitates optimization of dial pool resources to maximize user satisfaction.
Fast'R PLUS LCD Front Panel
The 16-character display and four pushbuttons let you view and change configuration parameters. It also allows you to initiate tests and view status.


jump to PDF file of manual   1.8 meg


Transmission Rates:
33.6, 31.2, 28.8, 26.4, 24.0, 21.6, 19.2,16.8, 14.4, 12.0, 9.6, 7.2, 3.8, 2.4, 1.2Kbps (+0.01% sync; +/-2.5% async). 300 bps in async only.
Operating Modes
V.34, V.32bis, V.32, V.23, V.22bis, V.22,V.21, Bell 212, Bell 103
Calling Interfaces
Hayes AT and ITU-T V.25 bis (synchronous only)
Line Types
2-wire dial line or 2/4-wire leased line
Error Correction & Data Compression
V.42, LAP-M & MNP 4; V.42bis & MNP 5
Transmitter Section
  • Output level tolerance: +/- 1.0 Db
  • Output level: country dependent
  • Timing: Selectable internal, external, loopback
  • Operating temperature: +32° to 122°F (0° to 50°C)
  • Storage temperature: -40° to 158°F (-40° to +70°C)
  • Relative humidity: 0 to 95% non-condensing
Certification Compliance/Approvals
  • Safety: UL 1950, CSA 950, IEC 950, EN60950
  • Telecom: Country compliance as required, including FCC Part 68 (U.S.), IC-CS-03 (Canada), JATE
  • EMC Compliance

Standalone - FCC Part 15, Class B; CISPR 22 and EN 55022, Class B; AS 3548, Class B; EN 50082-1

Nest and Dual Modem Cards - FCC Part 15, Class A; CISPR 22 and EN 55022, Class A; AS 3548, Class A; EN 50082-1

  • CE marked for compliance to the EU LVD, EMC and TTE directive
  • AccessWay for T3460 Fast’R
  • Size (H x W x D): 7"x 19"x10.5" (cm: 17.78 x 48.26 x 26.7)
  • Power: 100/120/220/240 VAC nominal (switch-selectable),
  • Frequency: 50/60 Hz or -48V DC nominal (redundant)
  • T3460 Fast'R PLUS Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
  • T3460 Fast’R Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
  • T3460 Fast’R Nest Cards size (H x W x D): 0.9" x 6.75" x 9.6" (cm:2.29 x 17.15 x 24.38)
  • T3460 Fast’R Vanguard Daughter Card size (H x W x D): 0.87" x 2.95" x 8.86" (cm:2.20 x 7.50 x 22.50)
Power Requirements
Standalone: 9V AC, 50/60 Hz, 800 mA
Nest: 100/120/200/240V AC, 50/60 Hz, 1.2/1.0/0.6/0.5 A


Reference Guide for the 3460 Fast'R and Fast'R Plus Modem.

Reference Guide, (manual)  Revision F - 1.8 meg file
current for Release 5.1 (English)


Telenetics own TFast'R Vu configuration software ensures rapid and efficient network deployment. TFast'R Vu allows you to configure, monitor and test both local and remote modems over a separate network control channel - that means no interruptions in data transmission.


Features & Benefits | Specifications

TFast'R Vu is an easy-to-use Windows based application that helps you:
  • View and set modem options without learning AT commands
  • Check device, circuit, and signal status without special tools
  • Copy configurations without leaving your keyboard
  • Execute line and modem test without scopes and meters
  • Upgrade modem software
TFast'R Vu's Functions

You may use TFast'R Vu to:

  • Set options in stand-alone and card modems
  • Copy and save configurationsInitiate and terminate dial calls
  • Monitor modem and line status
  • Initiate line and device tests
  • Maintain your telephone book of stored numbers
  • View real-time negotiated-connection data
  • Download new modem software
TFast'R Vu is especially useful for installations of multiple modems, but it is not required for modem setup and operation.

TFast'R Vu requires a computer with the:
  • Windows 3.1, Windows 95 or Windows NT operating system
  • 486DX2 or Pentium-class processor11 MB of RAM
  • 8-pin DIN to DB25F cable (product code 40384) to connect to a PC comm port
  • CD-ROM drive if installing from CD included with 3460 AccessWay nest and 3460 Fast'R Stack Six stacking kit
Platforms Supported by Fast'RVu3460 Fast'R Modem Familty: 326X Modem Family
TFast'R Vu Release2.0 now supports the 326X platform. This will allow existing customers to take advantage of the ease of use that TFast'R Vu offers. Only features supported on the 3460 are supported on the 326X at this time, including configuration sets and gets, all forms of status gathering, testing, and miscellaneous modem commands. Non-supported features (those unique to the 3260 eg. restoral/SDC commands) can still be configured via the 326X front panel buttons/LCD display.

jump to 3460 modem part numbers

  3460 SLR Accessway Nest, 2/4 Wire Model
  For use with 3460 Fast'R SLR Nest Card Modems.  Includes User Guide, Fast'RVu SW on CD (TEL-39598), & DIN adapter cable (TEL-40384).  AC-powered nests ship from factory with power supply set to 240 VAC.   Power supply is easily reconfigurable to 100/120/220 VAC by changing rotating selector on rear of power supply.
TEL-39726 **REPLACED BY TEL-39729**  110/120 VAC Nest, RJ11/MB 2/4W SLR model w/RJ11 connectors/Make Busy Backplane.  Order power cord separately.
TEL-39728 **REPLACED BY TEL-39729**  220/240 VAC Nest, RJ11/MB 2/4W SLR model w/RJ11 connectors/Make Busy Backplane.  Order power cord separately.
TEL-39729 100/120/220/240 VAC Nest, RJ11/MB 2/4W SLR model w/RJ11 connectors, Make-Busy Backplane.  Order power cord separately.
TEL-39733 **REPLACED BY TEL-39729**   110/120 VAC Nest, RJ11 2/4W SLR model w/RJ11 connectors.  Order power cord separately.
TEL-39734 **REPLACED BY TEL-39729**  220/240 VAC Nest, RJ11  2/4W SLR model w/RJ11 connectors.  Order power cord separately.
TEL-39737 **REPLACED BY TEL-39729**  220/240 VAC Nest, RJ11  2/4W SLR model w/RJ11 connectors.  Order power cord separately.
TEL-39738 **REPLACED BY TEL-39729**  100 VAC Nest, RJ11 2/4W SLR model w/RJ11 connectors. Order power cord separately.
TEL-39739 -48 VDC Nest, RJ11  2/4W SLR model w/RJ11 connectors.
