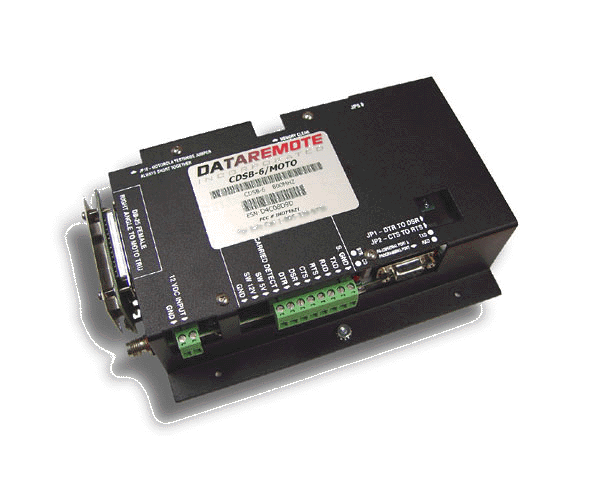

CDSB-6/Moto Cell
modem |
|
Analog cellular RS232
Data Modem
including 3 watt Motorola
cellular modem and radio
|
|
|
|
General Specifications: Motorola AMPS
Transceiver |
|
INPUT VOLTAGE: |
10 –
16.5VDC |
|
RF POWER OUTPUT: |
3.0
Watts nominal into 50 ohms |
|
TEMPERATURE: |
Operating: -30ºC to +60ºC (-22º F to +140º F)
Storage: -40ºC to +85ºC (-40º F to +185º F)
Thermal Shock: -40ºC to +85º C (-40º F to +185º F) |
|
SHOCK: |
EIA
standards R5152B (Section 15) and IS-19 |
|
HUMIDITY: |
90-95% relative
humidity; meets BIA standard IS-19 |
|
VIBRATION: |
EIA standards
R5152B and IS-19 |
|
General Specifications: Controller -
Modem Board |
| ERROR CORRECTION: |
MNP-10EC/TX-CEL |
| CELLULAR THROUGHPUT: |
Up to 16,000 bps (using
V.42BIS) |
| SERIAL INTERFACE: |
Buffered EIA RS-232C |
| FLOW CONTROL: |
Xon / Xoff, RTS/CTS, none |
| MODULATION PROTOCOL: |
V.32BIS (14,400bps)
V.32 (9,600bps)
V.22 (2,400 to 100bps)
212a (1,200bps) |
TOTAL
POWER REQUIREMENTS WITH
TRANSCEIVER INSTALLED: (@13.5VDC) |
Standby: 120ma (Waiting
for call)
Quiescent Standby: 15ma (In sleep mode)
Active: 700ma to 2.2A (Call in progress) |
| DATA CONNECTIONS: |
DB-9 and Phoenix
connector screw terminals |
| ANTENNA CONNECTION: |
Mini-UHF |
|
PHYSICAL SPECIFICATIONS |
| Size: |
8 ¼ L, 5 ½ W, 2 ¼ H |
| Weight: |
Approx. 2 lbs. |
|
PROGRAMMABLE MENU OPTIONS (Local and
Remote) |
- Set clock time
- Up to 4 polling windows
- Initialization AT string
- Set cellular power level, .6 to 3.0 watt
- Program cellular number (NAM)
- Program alarm callout number
- Set DTE/DCE baud rate
|
