Statistical Multiplexer - SR-04

4 channel multiplexer, available with optional DSU

Optional internal 56/64 Kbps DSU/CSU Optional frame relay FRAD firmware Port speeds to 57.6 Kbps Asynchronous composite to 115.2 Kbps Synchronous composite to 128 Kbps Network Management Port Remote set up and testing Composite is full duplex asynchronous, synchronous, analog modem (leased line or dial-up) or digital 4 asynchronous channels Works well with spread spectrum radios Test message generation "Data Scope" functions to allow monitoring of any data port "Copy Command" for remote training Composite link is error corrected

Features

• Optional internal 56 Kbps DSU/CSU
• Optional frame relay FRAD firmware
• Port speeds to 57.6 Kbps
• Synchronous composite to 128 Kbps
• Network Management Port
• Remote set up and testing
• Composite is full duplex asynchronous, synchronous, analog modem (leased line or dial-up) or digital
• 4 async channels
• Test message generation
• "Data Scope" functions to allow monitoring of any data port
• "Copy Command" for remote training
• Composite link is error corrected

The SR-04 statistical multiplexer concentrates 4 asynchronous channels over a synchronous or asynchronous composite. All port parameters are set with an asynchronous terminal connected to the network management port or port 1. Set-up procedures are menu driven and fully explained on screen. All configuration parameters are battery supported through power outages.

The asynchronous ports can be individually set for speeds to 57.6 Kbps. Hardware (CTS/Busy high or low) or software (Xon/Xoff even, odd, mark, space or transparent) flow control is also set on a port by port basis.

The SR-04 composite is asynchronous or synchronous full duplex lines either analog or digital. The composite can be run at speeds up to 128 Kbps synchronous or 115.2 Kbps asynchronous. The composite may be used through analog leased lines, dial-up modems, ISDN TAs, radio modems, digital DSUs, or equivalent links.

The network management port includes local and remote configuration commands. The Show Configuration Commands allow the system manager to view the configuration settings of both the local and remote SR-04 Multiplexers. Network management features include port and composite loopbacks, capture of a remote or local port, send a test message to an individual local or remote port, set multiplexer ID for node identification and a built-in "data line monitor" which allows the monitoring of the transmit or receive lines at the local multiplexer. A unique feature of the SR multiplexer is the Copy Command. This command allows a trainer at the host site to "copy" any local or remote port to view exactly what the user is entering. This feature can save thousands of training dollars by eliminating travel expenses.

The SR-04 multiplexer has a side panel access for firmware cartridge installation. This feature simplifies installation of upgrades for new features and functions.

The SR-04 is compatible with virtually all async terminal-printer/computer links. You can save thousands of dollars by concentrating your terminals on one line while delivering top performance. In addition, with features like the loopback, test message, ID, monitor and copy commands, you can take charge of your network like never before.

SPECIFICATIONS

General

Asynchronous Statistical Multiplexing
4 channels
All ports can be 57,600 bps

Port Specifications

Data Format

1 Start bit
8 Data bits including parity if used
1 Stop bit
10 Bits total

Rates: 300, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57,600 bps individually selectable per port
Interface: CCITT V.24, RS-232-D
Connectors: RJ-45 (8-wire)
Buffering: 64K dynamically allocated
Port Flow Control: Set on an individual port basis

Xon/Xoff
Clear to Send
Busy High
Busy Low

Network Specifications

Rates: Follows modem clock signals to 128 Kbps synchronous, 115.2 Kbps asynchronous
Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (per EIA/TIA 561 spec for RS-232 in a modular 8 position connector)
Error Correction: Automatic retransmission
Network to modem/DSU cable included

Operating Modes

Normal on-line multiplexing
Network loopback

Indicators (front panel)

Power, Multiplexing, Receive Error, Modem Ready, Option, Port 1 Setup, Loopback

Network Management Port

Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (8-wire)
Can be mapped to Port 1
Network Management Port to terminal cable included

Network Management Port Commands

Help Screen
Remote Test Loop
Monitor Transmit
Monitor Receive
Network Loopback
Flow Control Active
Set Time

LOCAL & REMOTE:

Show Configuration
Show Network
Configure Ports
Port Loopback
Device Type
Reset
Capture Port
Copy Port
Send Test Message
Activity Counters

Physical/Electrical

Power requirements: 120 VAC, 30-43 Watts, .25-.36 Amps
10 1/4" x 9 3/4" x 2 1/2"
Operational Temperature: -40 to +75 C

Options

56 Kbps internal DSU/CSU

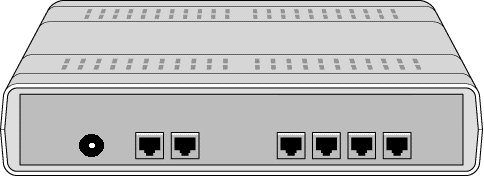

Rear view of DCB SR-04 Multiplexer
