V-Max 5.8 GHz Wireless Video
Audio and Data Transmission System

VMax 5.8 GHz Series Video/Audio/Data Transmission System

WTI’s V-Max series is the ultimate solution when conventional cable installations are impractical or impossible. It can provide simultaneous real time transmission of video, dual-channel audio and/or RS-232 data. It provides exceptional wireless performance in all climates and is unaffected by fog, rain, or snow.

WTI V-Max goes where cable can’t - in all climates and adverse conditions.

A Multitude of Features

• 16 field-selectable channels of operation
• High density co-location potential
• System comes complete. No extras to purchase
• Utilizes high-technology Phase-Array microstrip antennas
• Two sub-carriers for audio or data. Optional transmitter modules provide for input of line-level audio, microphone, RS-232 data, or contact closures. Optional receiver modules provide for output of line-level audio, speaker drive, RS 232 data, or contact closures
• Audio and data interfaces are fully isolated to eliminate ground loop problems
• Seamless operation with any WTI PTZ data system
• Optional thermostatically controlled heater
• No user license required

There are Three V-Max Systems to Choose From:

V-Max I
This system is for moderate range transmission up to two miles. The V-Max I utilizes an internal Phased-Array microstrip antenna on both the transmitter and receiver.

V-Max II
This system is for longer range transmission up to four miles. The V-Max II transmits with an internal, Phased-Array microstrip antenna and receives with an external, mast-mounted, low-gain, dish antenna.

V-Max III
This system is for distance transmission up to six miles The V-Max III transmits with an internal, Phased-Array microstrip antenna and receives with an external, mast-mounted, high-gain, dish antenna.

WTIVideo Transmitter TX-5800

Prime-Power requirement 85 -264 VAC, 50/60 Hz, 25 Watts

System-Power requirement 12 VDC @ 250 mA

Transmit frequency range 5725 to 5875 MHz

Frequency stability 0.005% over –20°C (–4°F) to +45°C (+113°F) (With optional heater) ambient

Antenna gain/beamwidth (microstrip phased array) +20dBi/14°

Radiated field strength 50,000 µV/meter @ 3 meters

Spurious & harmonic output less than –60 dBc

Modulation FM video and FM sub-carriers

Sub-carrier frequencies 6.0 and 6.5 MHz

Video input BNC female connector

Video input format B/W or color, NTSC or PAL, sync negative

Video input level 1.0 V pk-pk

Video input impedance 75Ù

Audio/data inputs Phoenix P/N MTSB 2.5/4-ST-5.08 detachable screw terminal strip

Contact closure I/O: Phoenix P/N MTSB2.5/2-ST-5.08 detachable screw terminal strip

Operating Temperature -20°C (-4°F) to +60°C (+140°F) Standard -40°C (-40°F) to + 60°C (+140°F) Optional – CL-H

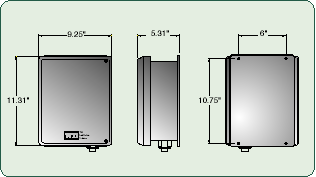

Physical dimensions 9.25" (23.6 cm) W x 11.3" (28.7 cm) H x 5.3" (13.5 cm) D

Weight 6 lbs (2.7 kg)

Optional Transmitter Subcarrier Modules:

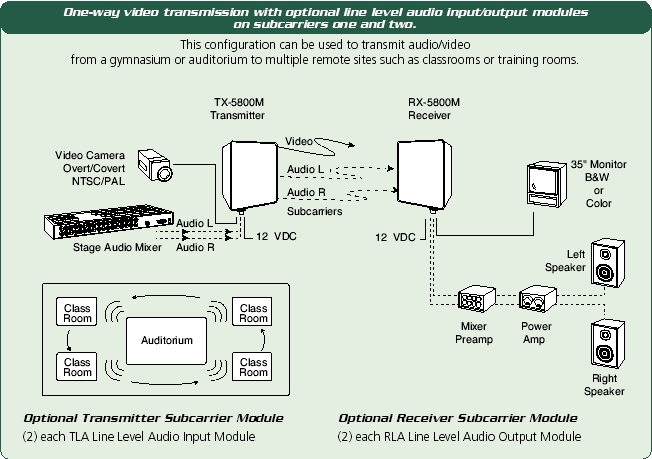

TLA

Line Level Audio Input Module:

Input impedance 10 kÙ

Input voltage 1.6 V RMS (+4 dBV) for 100% modulation

Frequency response –3 dB @ 30 Hz and 16 kHz

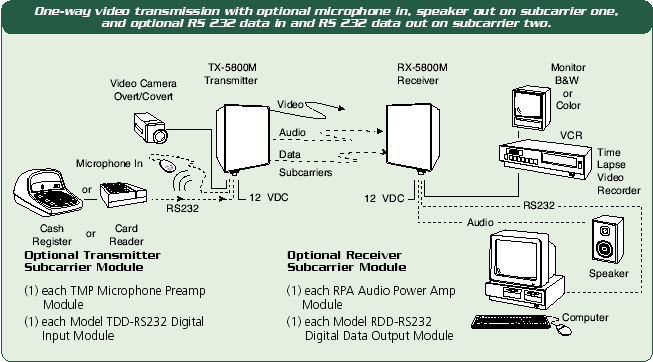

TMP

Mic Preamp Module:

Microphone (jumper selectable) low impedance (under 2 dynamic type or electret type

Input impedance 25 kÙ (dynamic mic) or 3 kÙ (electret mic)

Gain, ALC off manually adjustable from 30 dB to 55 dB

Gain, ALC on automatically adjusts from 10 dB to 55 dB

Frequency response –3 dB @ 100 Hz and 16 kHz

TDDRS-232 Digital Data Input Module:

RS-232 input voltage ±0.25 to ±12 volts peak

RS-232 input impedance greater than 5 kÙ

Maximum data rate 4800 baud

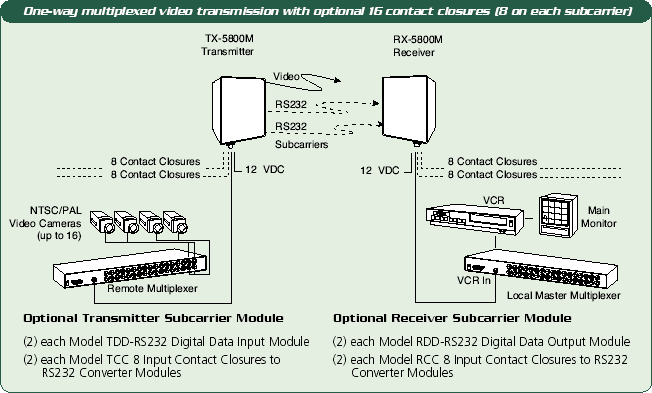

TCC 8 Input Contact Closure to RS-232 Converter Module:

Requires TDD module

Input logic threshold +2.5 V

Voltage at open input +5 volts

Current for shorted input 1 mA

Absolute max. input voltage ±100 volts



WTIVideo Receiver RX-5800

Prime-Power requirement 85 – 264 VAC, 50/60 Hz, 25 Watts

System-Power requirement 12 VDC @ 300 mA

Receive frequency range 5725 to 5875 MHz

Frequency stability 0.02% over –20°C (–4°F) to+45°C (+113°F) (With optional heater) ambient

Receiver sensitivity -89 dBm for 30 dB S/N

Antenna input (V-max II & III only) female N connector

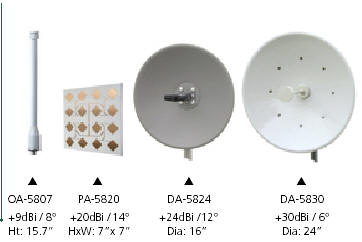

Antenna gain / beamwidth: PA-5820 (microstrip phased array) + 20dBi / 14° DA-5824 (16" dish) +24dBi / 12° DA-5830 (24" Dish) +30dBi / 6°

OA-5807 (omni) +9dBi-360 / 8°

Noise Figure under 4 dB

Video output BNC female

Video output level 1.0 V pk-pk

Video output impedance 75 Ù

Audio/data outputs Phoenix P/N MTSB 2.5/4-ST-5.08 detachable screw terminal strip

Contact closure I/O Phoenix P/N MTSB 2.5/2-ST-5.08 detachable screw terminal strip

Operating Temperature -20°C (-4°F) to +60°C (+140°F) Standard -40°C (-40°F) to + 60°C (+140°F) Optional – CL-H

Physical dimensions 9.25" (23.6 cm) W x 11.3" (28.7 cm) H x 5.3" (13.5cm) D

Weight 6 lbs (2.7 kg)

Optional Receiver Subcarrier Modules:

RLA

Line Level Audio Output Module:

Output impedance 170 Ù

Output voltage 0.9 V RMS (–1 dBV) at 100% modulation

Recommended load impedance 2 kÙ or higher

Frequency response (TX/RX system) –3 dB @ 30 Hz and 16 kHz

Dynamic range (TX/RX system, A-weighted) 79 dB

Distortion (TX/RX system, 1 kHz) 1% @ –15 dB, 2.5% @ 0 dB (100% mod)

RPA Audio Power Amplifier Module:

Recommended load impedance 4 Ù or higher speaker or headphones

Output power (for 10% THD) 2.5 W into 4 Ù, 1.5 W into 8 Ù

Frequency response –3 dB @ 100 Hz and 16 kHz

RDD

RS-232 Digital Data Output Module:

RS-232 output voltage greater than ±3 volts peak

RS-232 load impedance greater than 5 kÙ

Maximum data rate 4800 baud

RCCRS-232 to 8 Output Contact Closure Module:

Requires RDD module

Output SPDT (form C) relay contacts

Contact rating 1 A @ 24 VDC

The V-Max System includes: (1) Video Transmitter, Internal Transmitter Antenna, (1) Video Receiver, (1) Receiver Antenna, (2) Internal Universal Power Supplies, (1) Installation/Operations Manual, (2) Pole Mount Brackets and Mounting Hardware.

These are just a few examples of the flexible options the for remote audio, data, and video transmission and reception for businesses such as gas stations,

WTI V-max 5800 system offers. It is invaluable convenience stores, retail stores, banks and financial

institutions, as well as secured sites such as guard stations, parking lots, homeowners associations, schools and colleges and hotels. The V-max 5800 system has a variety of components that adapt to suit various installations and configurations.
