900 MHz and 2.4 GHz Spread Spectrum

 jump to related pages

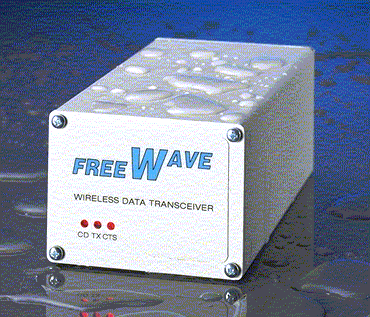

The DGR 115 R and W series of spread spectrum transceivers is available in a ruggedized professional series of enclosures, at both 900 MHz and 2.4 GHz.

The new transceivers are more compact, use standard N type RF connectors, and are available in waterproof and non-waterproof versions. The 900 MHz series are also completely compatible with all other 900 MHz FreeWave transceivers, allowing easy expandability and upgrades.

Professional Series 900 MHz and 2.4 GHz
Spread Spectrum Data Transceivers




Technical Specifications

Specification

DGR-115R/DGR-115W

DGMR-115R/DGMR-115W

Frequency:

902 to 928 MHz

2.400 to 2.4835 GHz

Transmitter:





Output Power

1 W (+30 dBm) at 9.5 to 14.0 V

400 mW (+26 dBm) at 7.5 to 9.5 V

500 mW (+27 dBm) at 9.5 to 14.0 V

400 mW (+26 dBm) at 7.5 to 9.5 V

Range, Line of Sight

20 miles (with unity gain antenna)

20 miles (with 5 dB omni)

Modulation

GFSK, 120 kBs - 170 kBs

GFSK, 120 kBs - 170 kBs

Occupied Bandwidth

230 kHz

230 kHz

RF connector

Type N female

Type N female

Receiver:





Sensitivity

-108 dBm at 10-6 raw BER

-108 dBm at 10-6 raw BER

Selectivity

40 dB at fc ± 230 kHz

60 dB at fc ± 460 kHz

40 dB at fc ± 230 kHz

60 dB at fc ± 460 kHz

Data Transmission:





Error Detection

32 Bit CRC, resend on error

32 Bit CRC, resend on error

Data Encryption

Substitution, dynamic key

Substitution, dynamic key

Link Throughput**

115 KBaud

115 Kbaud

Interface

RS-232 1200 Baud to 115.2 KBaud

Standard DB9 connector (DGR-115R)

11-pin waterproof connector with 6 foot pigtail (DGR-115W)

RS-232 1200 Baud to 115.2 KBaud

Standard DB9 connector (DGMR-115R) 11-pin waterproof connector with 6 foot pigtail (DGMR-115W)

Power Requirements:





Transmit current

650 ma at 12V for 1W

600 ma at 8.5V for 400mW

650 ma at 12V for 500mW

600 ma at 8.5V for 400mW

Receive current

100 ma at 12V

100 ma at 12V

Idle current

65ma at 12 V

65ma at 12 V

Sleep mode current

5 ma at 12V

5 ma at 12V

Operating Modes:

Point-to Point

Point-to-Multipoint

Peer-to-Peer

Store and Forward Repeater

Point-to Point

Point-to-Multipoint

Peer-to-Peer

Store and Forward Repeater

Operating Environment

-40°C - +75°C

-40°C - +75°C

Enclosure:

Extruded aluminum (DGR-115R)

Waterproof extruded aluminum (DGR-115W)

Extruded aluminum (DGMR-115R)

Waterproof extruded aluminum (DGMR-115W)

Dimensions:

56.5mmH x 74.3mmW x 165.1mmL (DGR-115R)

60.3mmH x 78.1 mmW x 165.1mmL (DGR-115W)

56.5mmH x 74.3mmW x 165.1mmL (DGMR-115R)

60.3mmH x 78.1 mmW x 165.1mmL (DGMR-115W)

Weight:

441g (DGR-115R)

496g (DGR-115W)

441g (DGMR-115R)

496g (DGMR-115W)

FCC Identifier

KNY-205-108213

KNY-209228624168

** Uncompressed Throughput Measured Assuming 75% Frequency Availability



Professional Series

Rear Panel & Connector View

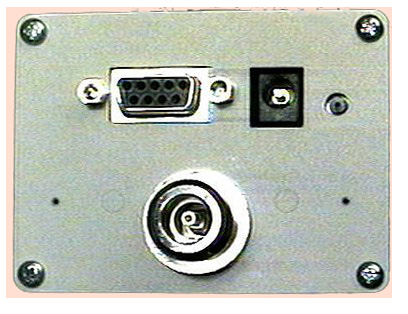

DGR-115R

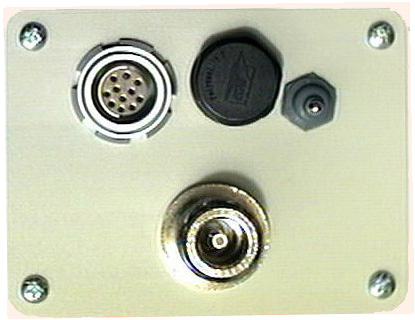

DGR-115W
