Adtran T1 ESF CSU ACE

Adtran
T1 ACE CSU ESF

Stand Alone and Smart 16 T1 CSU
with Network Facility

T1 CSU ACE ESF
T1 CSU (RM) ESF
T1 CSU ACE ESF (4th Gen)


1203025L1
1202066L1
1204025L1


The ADTRAN T1 ACE CSU ESF is a full-featured T1 Channel Service Unit used to connect T1 data terminal equipment (DTE) such as a PBX, switch or channel bank to T1 facilities. Capable of interfacing to both B8ZS or AMI circuits, the Adtran ACE T1 ESF CSU can convert signal formats or line code to integrate older equipment. The ESF CSU is designed to provide alarms, loopbacks, signal regeneration, line build-out, and surge protection, while maintaining 1s density for the DTE and T1 network.

The Adtran T1 CSU ACE ESF is suitable for wall-mounting or desktop use, while the Adtran ESF ACE CSU Smart 16 Card occupies a single slot in the ADTRAN Smart 16 shelf. A front panel LCD and four user keys on the front of the ACE provide easy configuration and unit monitoring from the front panel. The Smart 16 ESF CSU card can be controlled from the shelf controller through a VT 100 interface or the optional Datamate. For SNMP management, the Smart 16 ESF CSU card is supported by the Smart 16e controller and the ADVISION software package.

The T1Adtran  ACE CSU ESF provides a T1 network interface and a DSX-1 DTE connection through modular RJ48C jacks. For testing purposes, the T1 ESF CSU is capable of initiating several built-in local and remote loopback tests and conducting stress testing of the network with built-in test patterns. For more extensive network testing, the unit uses bantam jack access for external test equipment. To aid with circuit monitoring, the T1 ESF CSU gathers ANSI PRMS information in 15 minute intervals for 24 hours, which is fully accessible from the front panel, over the FDL, or via a dial-up modem connection.

Remote configuration is made simple by using the FDL channel of a T1 ESF formatted circuit with the front panel or the Smart 16 controller interface. Using the remote configuration capability of the T1 ESF CSU enables central site control and setup for ADTRAN T1 CSUs or TSU devices. Compatibility with the popular T-Watch PRO software package enables the T1 ESF CSU to integrate easily into ADTRAN TSU environments.

For additional T1 applications, ADTRAN provides several T1 DSU/CSUs and T1 Multiplexers for combining traditional DSX-1 functionality with additional DTE ports. The TSU 100e, TSU 120e and TSU 600e are modular T1 DSU/CSUs with embedded SNMP and are capable of supporting a single DSX-1 interface and up to 22 DTE interfaces for data or video applications.

Features

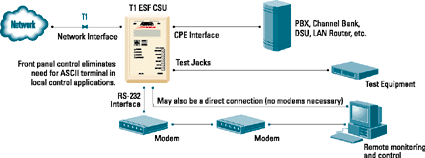

T1 ESF CSU APPLICATION EXAMPLE

application drawing

PRODUCT SPECIFICATIONS

NETWORK INTERFACE

Line Rate

  • T1-FT1 (1.544 Mbps)

Physical Interface

  • RJ48C : 8-Pin Modular

Specifications

  • ANSI T1.403, AT&T TR62411

Framing

  • SF/ESF

Line Code

  • AMI/B8ZS

ESF Format

  • ANSI T1.403, AT&T 54016

Input Signal

  • 0 to -36dB

Transmission Type

  • Regenerative transparent: Network & DTE

USER TESTING

Local

  • Payload/Line (NI), DTE (T1)

Remote

  • Payload/Line (NI)

Test Patterns

  • 1:8, All 0s, All 1s

PERFORMANCE MONITORING

Performance Data

  • BPVs/CRCs, ES, SES, UAS, %AS, %EF SEC
  • Alarms, Error Rates

Reports

  • NI information stored 24 hrs, every 15 min.

PRMS

  • ANSI Performance Report
  • Messages (User Selectable)

EQUIPMENT INTERFACE

Compliance

  • ANSI T1.403, AT&T 62411

Receiver Performance

  • Automatic Line Build-out for 0-655 ft.

Keep Alive Signal

  • Unframed/framed All 1s loss of DTE signal

USER OPTIONS

Mounting

  • Desktop or Wall Mount (ACE)
  • Single Slot in ADTRAN Smart 16 Chassis

Bantam Jacks

  • Test Signal access to Network & DTE
  • Non-interrupt signal receive: Network & DTE

LED Indicators (ACE)

  • Power
  • Alarms
  • Errors
  • Loopback

LED Indicators (SM 16)

  • Status
  • Net. & Eq. LOS
  • Net. & Eq. AIS
  • Net. & Eq. OOF
  • Net. & Eq. Yellow Alarm
  • Test
  • Net. & Eq. Code Violation

COMPLIANCE

  • FCC part 15, Class A, Part 68, Industry Canada CS03, UL 1459, CUL

ENVIRONMENT

Operating

  • 0° to 50° C (32° to 122° F)

Storage

  • -20° to 70° C (-4° to 158° F)

Relative Humidity

  • Up to 95%, non-condensing

Dimensions

  • ACE: 1.675"H x 7.22"D x 4.05"W
  • Smart 16 Card: Standard ADTRAN SM 16

Weight

  • 1 lb.

Power

  • ACE: -42 to -56 VDC, 2.5W
  • Smart 16 Card: From Smart 16 Chassis
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Ordering Information

 Adtran  ACE  T1 CSU

  • Interface T1 DTE equipment to telco-provided or private T1 facility

  • PBX and transceiver connectivity
  • Transparently passes line coding formats
  • Jitter tolerance in compliance with ANSI T1.403 and AT&T TR 62411
  • Surge protection, loopback testing, alarms and 1s density
  • Test access jacks
  • Type 400 circuit pack available
T1 CSUs
Adtran  ACE T1 CSU - new part #


 		 1203022L1
(old numbers)
1202022L1
1200022L2
Adtran  T1 CSU CP (Type 400 Circuit Pack) 1210018L1



For a data sheet click here.



Adtran T1 ESF CSU ACE

  • Same features as T1 CSU ACE
  • Configurable to switch ESF/SF line coding formats
  • Smart 16/16e rackmount version available
  • Front panel keypad and LCD screen

Adtran T1 ESF CSUs
T1 ESF CSU ACE 1203025L1
T1 ESF CSU (RM) 1202066L1
T1 ESF CSU ACE (4th Gen) 1204025L1

OLD numbers

Ordering Information

T1  T1 CSU T1 CSU ACE 1202022L1
old number
1200022L2		 T1 Channel Service Unit used for interfacing CPE equipment to a T1 line. Powered by 12 to 48 VDC. AC to 12 VDC wall plug included w/ unit. Unit is transparent to ESF and B8ZS. New housing with LEDS on front of unit and interfaces on rear of unit.
T1  T1 CSU T1 CSU ACE Spare Power Supply 1902022L1 12 VDC wall plug power supply.  Converts 120 VAC, 60 Hz power to 12 VDC for T1 CSU ACE (1202022L1).
T1  T1 CSU T1 ESF CSU ACE 1203025L1 T1 ESF CSU used for interfacing CPE equipment to T1 line.  Also provides SF to ESF conversion.  Support for T-Watch and updated menu structure.
T1  T1 CSU T1 ESF CSU ACE Rackmount 1202066L1 Rackmount version of ESF CSU ACE compatible with Smart 16 /16e shelves. Used to interface CPE equipment to T1 line.  Provides SF to ESF conversion with full ESF performance information.
T1  T1 CSU T1 CSU Circuit Pack 1210018L1 Type 400 T1 Channel Service Unit Circuit Pack, used for interfacing CPE equipment to a T1 line. Compatible with T400 shelves (1150092L1).    Powered by -48 VDC.
NT1 ACE 1203019L1 NDNTAAT1AA BRI Network Termination Unit
NT1 ACE3 1200236L1 NDMMLMJ1RA BRI Network Termination Unit
NT1 ACE4 1200242L1 NDMMLPJ1RA BRI Network Termination Unit
