Adtarn TSU 600 T1/FT1 Multiplexer

T1/FT1 Mux / Channel Bank for voice or data

Single-port and dual-port data modules support access to Frame Relay, DDS or Basic Rate ISDN over T1 facilities. Voice modules allow access to analog voice circuits or a PBX. The TSU 600/600e supports mixed-mode networks incorporating voice, data and video.


     Preconfigured TSU 600 and TSU 600e systems offer the functionality of ADTRAN’s fully featured T1 multiplexers in pre-installed and pre-configured equipment packages. These systems utilize the TSU 600 or TSU 600e chassis packed with multiple expansion cards for high volume voice and data applications. Available packages represent the most frequently requested configurations of the TSU 600 and TSU 600e multiplexers, with expansion cards to support 12 data ports, or 24 FXO, FXS or E&M voice ports.

    The TSU 600 and TSU 600e chassis have six expansion slots that accommodate various ADTRAN expansion cards to support user-specific applications, including analog voice, digital voice, DDS, Frame Relay, dial backup, high-speed data and ISDN. Both units include embedded SNMP functionality. The TSU 600e adds an integrated 10BaseT interface to the TSU 600 feature set, along with optional support for internal, dual redundant power supplies. Each hot-swappable power supply is capable of supporting a fully loaded TSU 600e.

    The flexibility of the TSU 600/600e multiplexer provides a clear migration path for growing networks. Each chassis supports up to 24 DTE interfaces. The user may combine plug-in and plug-on modules in various combinations. Single-port and dual-port data modules support access to Frame Relay, DDS or Basic Rate ISDN over T1 facilities. Voice modules allow access to analog voice circuits or a PBX. The TSU 600/600e supports mixed-mode networks incorporating voice, data and video.

    The TSU 600/600e equipment packages are factory-configured before shipping. For ongoing configuration and management, the TSU 600/600e and installed expansion modules are fully SNMP compatible. The TSU 600 communicates management information via a SLIP (EIA-232) port; while the TSU 600e offers the convenience of a 10BaseT port for direct connection to the LAN. Both units include Telnet functionality and a front panel LCD for manual configuration.

    ADTRAN offers two network management software programs to support configuration and management of the TSU 600/600e series. T-Watch PRO™ is a Windows‚ 95 or NT‚ compatible program that facilitates easy configuration and monitoring of all ADTRAN host and remote devices. For HP OpenView networks, ADTRAN offers ADVISION™, an SNMP-based graphical user interface that integrates seamlessly into a UNIX-based enterprise-wide network management system.

PRECONFIGURED PLUG-AND-PLAY


P R O D U C T  F E AT U R E S


Product Specifications

TSU 600 & TSU 600e Systems


Ordering Information

PART #

TSU 600......................................................1202076L2

TSU 600e...................................................1202076L1

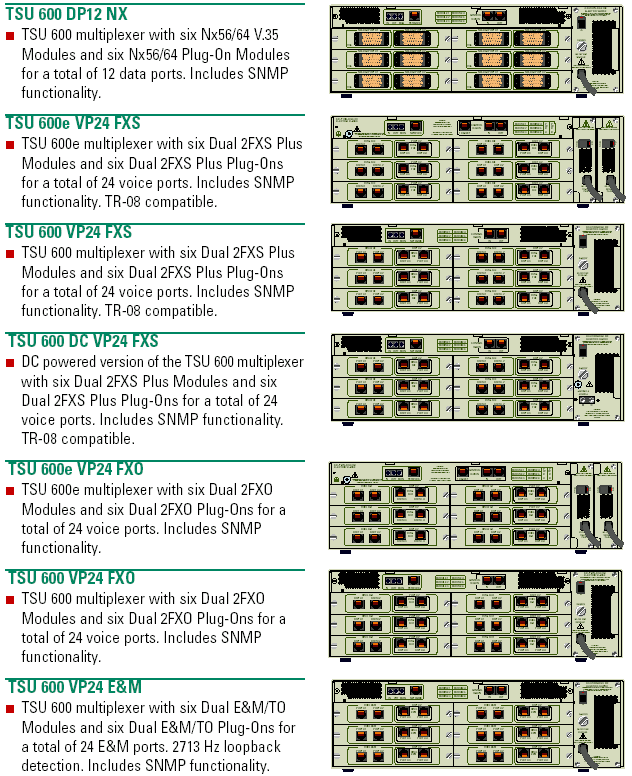

TSU 600 DP12 Nx .....................................4200076L2

TSU 600e VP24 FXS .................................4202076L1

TSU 600 VP24 FXS....................................4200076L1

TSU 600 DC VP24 FXS .............................4200076L1#DC

TSU 600e VP24 FXO .................................4202076L3

TSU 600 VP24 FXO....................................4200076L3

TSU 600 VP24 E&M ..................................4200076L5
