Adtran TSU 100 T1-FT1-DSU/CSU

The TSU 100™ and 100e™ are modular, full-featured T1/FT1 Multiplexers designed to support a wide range of end-user applications. Equipped with a synchronous V.35 DTE interface, the TSU 100(e) supports applications combining high-speed data with additional end user applications. As interface requirements increase, the flexibility of the TSU 100(e) benefits the user with modularity through its expansion slot. The TSU 100(e) provides complete monitoring and control of the T1 network with embedded simple network management protocol (SNMP) provided through a SLIP interface. The TSU 100e also has a built-in 10BaseT Ethernet interface. To support critical data applications, the built-in V.35 interface on the TSU 100e can be converted to provide dial backup functionality during T1 failure conditions. This feature is supported by the interface and is available using an optional V.35 "Y" cable.

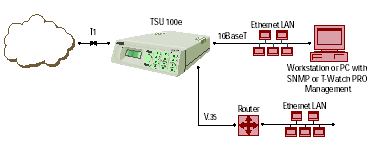

Support for future growth, through the unit’s single expansion slot, is a key feature of the TSU 100(e). The ability to combine many types of plug-in and plug-on modules provides extensive combinations of voice and data interfaces. Several data modules are available for single and dual-port access to Frame Relay, DDS or Basic Rate ISDN services provided over T1 facilities. Voice modules are also easily integrated allowing access to analog voice circuits or additional PBX connections. As a fully functional T1 Multiplexer, the TSU 100(e) supports all mixed-mode networking applications providing termination for circuits containing voice, data and video channels. Configuration and management of the TSU 100(e) is available through a variety of methods. The TSU 100(e) supports SNMP with Gets, Sets and Traps functionality through a built-in agent. ADTRAN MIBs support management for the TSU 100(e) and all installed expansion modules. For access to SNMP features, the TSU 100e has both a 10BaseT Ethernet and a SLIP (EIA-232) connection, while the TSU 100 has a SLIP interface only. In addition to SNMP, the unit utilizes the management capabilities found in optional software products from ADTRAN®. For Windows-based management, the TSU 100(e) is compatible with the popular T-Watch PRO™ software package. For more complex network management systems, ADTRAN’s ADVISION™ operates on an SNMP enterprise management system such as HP OpenView™ and provides full GUI configuration and control via SNMP.

P R O D U C T   F E AT U R E S
