Adtran TSU


TSU

T1-FT1 DSU/CSU

The ADTRAN TSU is a low-cost, full-featured T1/FT1 data service unit/ channel service unit (DSU/CSU). The TSU provides an interface between T1 or Fractional T1 service and the end user's data terminal equipment (DTE) for applications such as LAN to LAN bridging, Frame Relay circuit termination and video-conferencing. The TSU provides access to traditional dedicated point-to-point T1 services as well as network termination for Frame Relay.

Housed in a rugged, metal housing, the TSU supports synchronous data rates from 56 kbps to 1.536 Mbps at Nx56 or Nx64 kbps. A single V.35 physical interface provides a connection to the end user's DTE equipment.

For configuration and testing, the TSU provides the capability to control a remote TSU through the T1 FDL channel. If the FDL channel is unavailable, the TSU can use 8 kbps of the data traffic to provide configuration and control of the remote unit. The in-band control channel is used on an as-needed basis and is automatically controlled by the TSU.

The TSU responds to standard local and remote loopback commands from the telephone company central office. In addition, the user has several built-in test capabilities, including V.54 remote loopback, 511, 1:8 and all 1's BERT patterns. Complete configuration and performance data is available from the front panel keypad and 2-line by 16-character LCD display. For additional configuration and monitoring options, the TSU supports a VT100 terminal configuration and control mode which is available through the control port. For direct serial connections, optional Windows-based PC Management is available through the comprehensive, easy-to-use T-Watch PRO software package.

ADTRAN provides several T1 DSU/CSUs for a variety of customer applications. Additional products in the TSU family include the TSU LT, TSU ESP, TSU 100, TSU 120, TDU 120e and the TSU 600. These T1-FT1 DSU/CSUs offer flexibility, modularity, and end-user configuration.

Features

  • Single V.35 DTE interface
  • Nx56 or Nx64 operation for data rates to 1.536 Mbps
  • Auto and Manual D4(SF) or ESF framing support
  • B8ZS or AMI line coding
  • Easy-to-use front-panel keypad for unit configuration and monitoring
  • Remote TSU configuration via FDL or 8k in-band
  • Local and remote loopback capability
  • Extensive built-in test capabilities
  • Support for T-Watch PRO software for optional PC-based configuration
  • Standard 5-year warranty

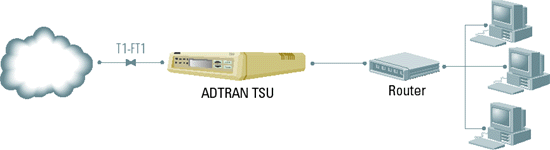

TSU APPLICATION EXAMPLE

TSU REAR PANEL


Product Specifications

NETWORK INTERFACE

  • Line Rate: T1/FT1 (1.544 Mbps)

PHYSICAL INTERFACE

  • RJ-48C: 8-Pin Modular

FRAMING

  • SF/ESF
  • Auto Detection

ESF FORMAT

  • AT&T 54016
  • ANSI T1.403

LINE CODE

  • AMI/B8ZS

INPUT SIGNAL

  • 0 to -36 dB

DSO ASSIGNMENT

  • Contiguous
  • Alternating

T1 TRANSMIT TIMING

  • Loop-Timed
  • Internal
  • DTE

DTE INTERFACE

  • Bit Rate: 56 kbps to 1.536 Mbps, Nx56 or Nx64 kbps (N=1 to 24)

ELECTRICAL

  • CCITT V.35

MECHANICAL

  • V.35 (Winchester Type 34-pin)

PERFORMANCE MONITOR PERFORMANCE DATA

  • BPVs/CRCs, ES, SES, UAS, % AS, % EFSEC, Alarms, Errors
