DigiLink V™ Dedicated All-Rate CSU/DSU

Our First CSU/DSU with QuikConnect™ Interface Modules!

  • Incorporates rate adaptation for both network and DTE interfaces

  • Supports internal, external, or receive recovered clocking
  • Operates in point-to-point or multi-point environments
  • Built-in anti-streaming and auto equalization

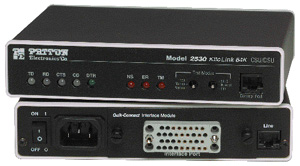

Model 2530

Model 2530

The Patton Model 2530 DigiLink V™ dedicated all-rate CSU/DSU is the latest in our line of standalone access products. The Model 2530 has all the features of Patton’s dedicated All-Rate CSU/DSU, plus compatibility with all of Patton’s QuikConnect™ DTE interface modules. The Model 2530 lets WAN hardware such as routers, multiplexers and servers connect to 4-wire digital services such as DDS and 64 kbps Clear Channel™. Incorporating rate adaptation for both network and DTE interfaces, the Model 2530 boasts a full compliment of diagnostics: telco loops, V.54 compliant local and remote loop and a V.52 BER test pattern generator/receiver. The Model 2530 has eighteen easy-to-read front panel LED indicators (data, control signals, speeds, network, tests). The Model 2530 supports internal, external or receive recovered clocking, and operates in point-to-point or multipoint environments. Other important features include anti-streaming, auto equalization and externally accessible configuration switches. The Model 2530 operates sync or async, and can also be used in a point-to-point campus network.

  • DDS Type: Dedicated DDS-All Rate
  • Transmission Format: Async/Sync
  • Interface: Interface Modules
  • Standards: AT&T 62310 compliant
  • Data Rate: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 56 & 64 Kbps
    (DTE Speeds); 2.4, 4.8, 9.6, 19.2, 38.4, 56 and 64 kbps (dedicated)
  • Control Port: Configuration and diagnostics
  • Transmission Line: 4-wire
  • Applications: Point-to-point or multipoint
  • Indicators: LED indicators for TD, RD, RTS, CTS, CD, DSR, DTR, DDS line rate,
    no signal, error and test, power
  • Diagnostics: V.54 compliant local and remote loopback tests, V.52 compliant
    511 BER tests, auto equalization, TELCO loop, remote testing
  • RX Level: 49 dB
  • Isolation: Minimum 1250V RMS via custom transformers
  • Surge Protection: 600W power dissipation
  • DTE Interface: V.24/RS-232, V.35, X.21, G.703, Data+Voice, Ethernet Bridge
  • Twisted Pair Interface: RJ-48S jack
  • Power: 100-240 VAC, 50/60 Hz (universal input option); 12, 24, 48 VDC (option). 5 watts.
  • Compliance: CE Marked per EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC. UL and cUL Safety Approvals.
  • Dimensions/Weight: 7.3” x 6.6” x 1.62” (18.5 x 16.8 x 4.1 cm); 2.02 lbs. (.92 kg)
