Black Box 232 to 485 Converter

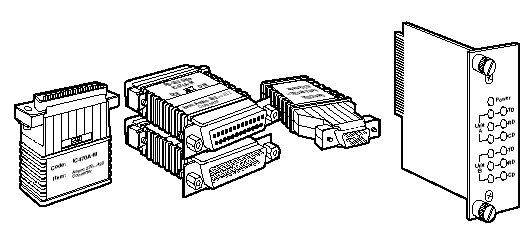

Black Box Async RS232 to RS485 Converter

IC476A-F-R2, IC476A-M-R2, IC478A-F-R2, IC477A-M-R2, IC477A-F-R2, IC478A-M-R2

IC476A-F-R2, IC476A-M-R2, IC478A-F-R2,
IC477A-M-R2, IC477A-F-R2, IC478A-M-R2


  • Async RS-232-422 to RS530:

    •

  • Transmits data over two twisted pairs.

  • Use in point-to-point applications.

  • Data rates up to 19.2 Kbps.

  • Loops back all RS-232

  • handshake signals.

  • Async RS-232-422 to RS485:

    •

  • 4-wire model transmits data and one control signal
     over one or two twisted pairs;

  • 2-wire model transmits data over one twisted pair.

  • Use in point-to-point or multipoint applications.

  • Data rates up to 115.2 Kbps.
2085F 2085FBB IC476A-F-R2 Async 232 <-> 485 Converter IC1476A-F
2085M 2085MBB IC476A-M-R2 Async 232 <-> 485 Converter IC1476A-M
2085F-25M 2085F-25MBB IC478A-F-R2 Async 232 <-> 485 Converter IC1478A-F
2085M-25F 2085M-25FBB IC477A-M-R2 Async 232 <-> 485 Converter
2085F-25F 2085F-25FBB IC477A-F-R2 Async 232 <-> 485 Converter
2085M-25M 2085M-25MBB IC478A-M-R2 Async 232 <-> 485 Converter
