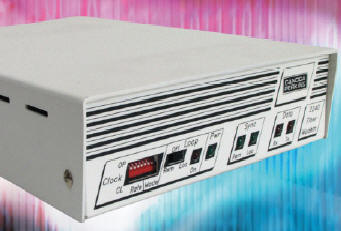

Canoga Perkins 2240 Video Fiber Optic Modem

Canoga Perkins 2240 MC Fiber Optic Modem for Video Conferencing


Canoga Perkins 2240MC Features:

Canoga 2240-MC series products provide various ways of extending videoconferencing circuits from the network
equipment demarcation point to the end point where the actual videoconferencing takes place. This extension is
over fiber optic cable and can be as long as 45 kilometers.

The main feature of the 2240-MC series products is the capability of extending both the video (data) and the dialer
signals over the fiber optic cable. Two basic models are available: In the 2240-MC1 version, the data signal interface
is RS-422/449 whereas the 2240-MC2 the data interface signal is CCITT V.35. In both products, the dialer signal
interface supported is RS-366 through adapters.

The 2240-MC series products can operate at speeds from 56kbps to 2.048Mbps in a variety of applications.
The three most common applications are switched T1 applications, dual switched 56Kbps/64Kbps applications
and multiple 56Kbps/64Kbps switched circuits throughan inverse multiplexer.

To better fit a specific application, the 2240-MC series products are available in either standard or long distance
versions. The standard version is 850nm. The long distance versions include a 1300nm ELED for multi/single mode,
1300nm lasers for both multi/single mode & 1550nm lasers for single mode.

The 2240-MC will operate over all popular sizes of single or multimode fiber optic cable. Input power can be 115
VAC, 230 VAC or -48 VDC. Fiber optic connectors can be SMA, ST or FC/PC.



Specifications

LED INDICATORS
Tx Data Activity Local Sync
Rx Data Activity Remote Sync
Loopback Active Power On

PHYSICAL DIMENSIONS

Standalone
12.8"L X 8.5"W X 2.5"H
PC Card

12.5"L X 7.8"W X1.06"H

WEIGHT

Standalone
3.6 lbs.
PC Card

0.9 lb.

POWER

Standalone & PC Card
115 VAC +10%, 20 watts (max)
115/230 VAC + 10%, 20 watts (max)
47 - 63 Hz (both)
-48 VDC, 20 watts (max)

ENVIRONMENTAL

Operation Temperature
0º to 50ºC
Humidity
Up to 95% (non condensing)



PERFORMANCE

Composite Error Rate
1 in 1010 or better

OPTICAL INTERFACE

Transmitter

LED (850nm), ELED (1300nm)

Laser Diode (1300/1550nm)

Fiber Optic Cable

50/125 or 62.5/125 mm; 8-10/125 sm

Connectors

SMA, ST*, or FC

INTERFACES CONNECTOR(s)

2240-MC1(RS-449 & RS-423)
female DC-37 & female DB-25

2240-MC2 (V.35 & RS-423)
female 34-pin Winchester & female DB-25




DISTANCE GUIDE
