Canoga Perkins 2361
T1 fiber optic modem |
The EdgeAccess® Canoga Perkins 2361
T1 fiber optic modem is G.703 compliant . It is a microprocessor-based T1 fiber modem
that supports the standard speed of 1.544Mbps, for AMI and B8ZS bipolar line
codes.
also view
other T1 Fiber Modems

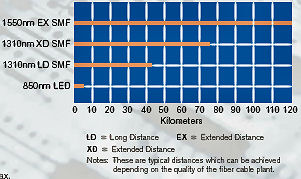

- Optically Extends T1 up to 100km
-
ITU G.703, G.824 Compliant
-
850nm Multimode, 1310nm/1550nm
Single Mode Optics
-
Transparent to AMI and B8ZS Line Codes;
Passes Bipolar Violations
-
Hot-swappable Main Module, ELIMs and OLIMs
-
Local and Remote Loopbacks
-
Redundancy Options
-
End-to-End Side-band Management
-
Management Support for Local and Remote Terminal, SLIP,
PPP, and SNMP
-
Diagnostic LEDs, V.54 Compliant Loopbacks
-
Continuous End-to-end Self-test
-
Dry Contact Input and Output Alarms
|
 |
The Canoga Perkins 2361 is a G.703 compliant T1 fiber optic
modem. It is a microprocessor-based modem that supports the standard speed of
1.544Mbps, providing a transparent fiber optic link extension for AMI and B8ZS
bipolar line codes.
The Canoga Perkins 2361 is modular in design for flexibility and
serviceability. It is composed of three modules: Main Module, Electrical Line
Interface Module (ELIM), and Optical Line Interface Module (OLIM). It is
available as a standalone unit or a rackmount module for installation in a
Canoga Perkins EdgeAccess® Universal Chassis System (UCS). The UCS1000 Chassis
provides capacity for up to 15 rackmount modems. Refer to the UCS1000 product
line data sheet for details on available features.
Full configuration and management for both ends are accomplished
via a local terminal. Using the UCS Domain Manager, menu driven, user-friendly
screens provide end-to-end configuration, status and control of the link.
Full modem redundancy options are available to provide
backup of critical circuits. The redundant modem connects the hardware together,
each with its own fiber path, they become fully redundant. Failure in the
primary modem will cause an automatic switchover.
The standalone version comes in a compact enclosure for desktop,
shelf, rack, or wall mount installations. It has a built-in AC or DC power
supply and utilizes the same ELIMs and OLIMs as the rackmount version.
| DIAGNOSTIC
LEDs |
|
| Status (STA),
Configuration (CFG), Composite Loss of Sync (CLS), Test/Loopback (TST), Loss
Of Sync (LOS), Local Pattern String Optical Signal Quality Level (SQL) |
| SWITCHES |
|
| Recessed Reset
(Standalone and Rackmount) |
| Loopback and
Console (Standalone) |
| ALARMS |
|
| Dry Contact
Output and Alarm Input (Both) |
| Alarm Input
(Standalone) |
| REDUNDANCY |
|
| Full Modem |
|
| PHYSICAL |
|
| Dimensions |
|
| Standalone |
1.7"H x 8.5"W x 11.5"D |
| |
(44
x 215 x 292mm) |
| Rackmount |
1.0"H x 7.9"W x 10.4"D |
| |
(25
x 201x 264mm) |
| Weight |
|
| Standalone |
3.2
lb (1.45kg) |
| Rackmount |
1.2
lb (0.54kg) |
| POWER |
|
| Standalone |
|
| 90 to 275VAC, 47
to 63Hz Autoranging, 7W Max 38 to 72VDC, 7W Max. |
| |
|
Rackmount |
|
|
10W Max. (See UCS 1000 Specifications) |
|
OPERATING ENVIRONMENT |
|
Temperature |
0° to 50°C |
|
Humidity |
Up to 95% (Noncondensing) |
|
ELECTRICAL CONNECTORS AND IMPEDANCE |
|
RJ-48 Interface |
100 ohm Balanced |
|
DA-15 Interface |
100 ohm Balanced |
|
Input Sensitivity |
-6dB |
|
Output Signal Level |
100 ohm 6V pp+10%
(per G |
| |
|
|
OPTICAL INTERFACE CONNECTORS |
| ST
with 850nm LED |
|
|
ST, SC, FC/PC with 1310nm/1550nm Laser |
| |
|
|
PERFORMANCE |
|
Composite Error Rate £10-10 |
|
MANAGEMENT |
|
Local Terminal (VT100) |
|
SNMP Through Dial-in (Optional
for Standalone) |
|
SNMP Through UCS for Rackmount |
| |
|
TEST FUNCTIONS |
|
Local Loopback, Remote Loopback, |
|
Remote Loopback with BERT, |
|
Bi-directional Loopback,
Continuous Self-test |
| |
|
|
Managed Rackmount modem for UCS 1000 or UCS 1001 |
|
|
2361-20-xx-011-0 |
850nm, LED, MM, 16dB, ST, Includes Single Tx/Rx OLIM and ELIM |
|
2361-20-xx-02x-0 |
1310nm Laser, SM/MM*, 17dB, Includes Single Tx/Rx OLIM and ELIM |
|
2361-20-xx-03x-0 |
1310nm Laser, SM/MM*, 26dB, Includes Single Tx/Rx OLIM and ELIM |
|
|
1550nm Laser, SM, 26dB, Includes Single Tx/Rx OLIM and ELIM |
|
|
|
|
|
Optical Connector Type |
|
|
1-ST |
|
|
2-FC/PC |
|
|
4-SC simplex |
|
|
|
|
|
Electrical Connector Type |
|
|
01-DA15 |
|
|
02-RJ48 |
|
Managed Rackmount Modem for UCS 1000 or UCS 1001, Modem Redundancy |
|
|
2361-22-xx-011-0 |
850nm, LED, MM, 16dB, ST, Includes 2 x
2361 Rackmount Modems,
2 x OLIMs, 2 x ELIMs, 1 x Y cable
(Depends on Electrical Connector Type) |
|
2361-22-xx-02x-0 |
1310nm Laser, SM/MM*, 17dB, Includes 2
x 2361
Rackmount Modems, 2 x OLIMs, 2 x ELIMs, 1 x Y cable
(Depends on Electrical Connector Type) |
|
2361-22-xx-03x-0 |
1310nm Laser, SM/MM*, 26dB, Includes 2
x 2361
Rackmount Modems, 2 x OLIMs, 2 x ELIMs, 1 x Y cable
(Depends on Electrical Connector Type) |
|
|
1550nm Laser, SM, 26dB, Includes 2 x
2361
Rackmount Modems, 2 x OLIMs, 2 x ELIMs, 1 x Y cable
(Depends on Electrical Connector Type) ) |
|
|
|
|
|
Optical Connector type |
|
|
1-ST |
|
|
2-FC/PC |
|
|
4-SC simplex |
|
|
|
|
|
Electrical Connector Type |
|
|
01-DA15 |
|
|
02-RJ48 |
