Carrier Access Adit 600
Channel Bank

Adit 600 Channel Bank -
Converged Services Access Gateway


  • Fully modular, carrier-grade converged access platform that simplifies the migration from traditional TDM to advanced new VoIP and IP data services for service providers and SMB customers, while preserving existing capital investments
  • Integrates VoIP gateway, IP access router, IP VPN, Firewall, channel bank, 1/0 DCS, CSU/DSU, and DLC functionality in a compact (2RU high, 8 inch wide) chassis
  • Widely deployed, and proven, with over 120,000 units in service
  • Expandable architecture delivers greater system reliability and scalability while providing a future-ready service migration path - new revenue-generating services can easily be added by installing hot-swappable cards
  • High-capacity integrated SIP- or MGCP-based VoIP gateway supports up to 40 simultaneous calls per chassis (G.711 or G.729 codecs and T.38 Fax)
  • Supports high-densities for T1, ISDN PRI/T1 CAS, FXS, FXO and 10/100 Ethernet interfaces
  • Advanced Ethernet/IP routing functionality includes VPN (IPSec, PPTP, L2TP), Stateful Firewall, NAT, and VLAN tagging








view Manual
 15megs


With over 120,000 units in service, Carrier Asscess AditŪ 600 is the most widely deployed, carrier-grade Converged Services Access Gateway in the industry. Optimized for a wide range of applications, the Adit 600 combines multi-network access and multi-service delivery capabilities into a single chassis. This results in an extremely cost-effective, compact, and flexible access platform that simplifies the migration from TDM to next-generation, IP-based voice and data services for service providers and small to medium business (SMB) customers. The Adit 600 enables a complete range of IP-services such as VoIP, Dedicated Internet Access and managed, secure IP VPNs, as well as traditional TDM voice and data services.


A Broad Range of Services in One Compact, Scalable Platform

Unlike competing devices which provide only fixed configurations, the Adit 600 supports a fully modular architecture and hot-swappable service cards - delivering greater system reliability, scalability and a longer product deployment lifecycle. The Adit 600 integrates the functionality of a VoIP gateway (SIP- or MGCP-based), Ethernet/IP access router, VPN/Firewall, channel bank, 1/0 digital cross-connect, CSU/DSU, and a digital loop carrier in a single compact chassis. The compact, 6-slot Adit 600 shelf is also only 3.5 inches high, and 8.5 inches wide, enabling two chassis to be mounted side-by-side in a 2RU (rack unit) space.

The fully modular design of the Adit 600 is unique in its ability to support new revenue-generating services simply by installing new hot-swappable cards. Any service card can be placed in any of the six available slots. Flexible multi-T1 or 10/100 Ethernet WAN interfaces are supported, as well as a variety of standard customer interfaces and services including long reach FXS, FXO/DPT, 10/100 Ethernet, E&M/TO, V.35, ISDN BRI, Terminal Server Router (TSR), ADPCM, and T1. The Adit 600 provides a high-density design that supports up to 18 T1s, or 48 FXS/FXO ports per chassis.

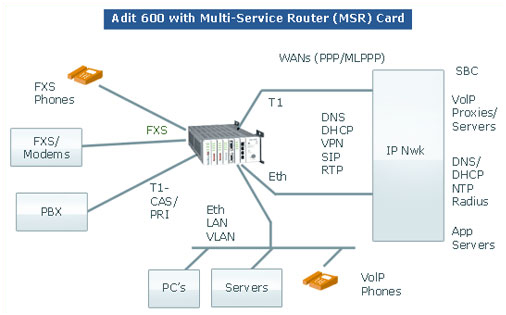

The Application for the Adit 600 with recently released Multi-Services Router Card (MSR) is illustrated below:
