10/100 Mbps Ethernet Drop and Insert Multi-drop Ethernet Fiber converters
Multimode and Single Mode
The D7400RHS Ethernet transceivers provide transmission of 3 10/100 Mbps Ethernet data signals over one optical fiber. The transceivers feature 4 electrical and 2 optical ports and can be configured in a redundant self-healing delineation for added network reliability.


  • 10/100 Mbps Ethernet - Auto-Negotiating - 10/100 Selectable
  • No In-field Electrical or Optical Adjustments Required
  • Auto Network Detection MDI/MDI-X
  • Relay Output for Network Communication Failure Notification
  • Power, Transmit and Receive Data Status LED Indicators
  • Multimode and Singlemode Versions Available
  • Distances up to 60km (37 miles)
  • ST Optical Connectors Standard
  • Hot-Swappable Rack Modules
  • IEEE 802.3 Compliant
  • Comprehensive Lifetime Warranty
  • Tested and Certified by an Independent Testing Laboratory for
    Full Compliance with the Environmental Requirements (Ambient
    Operating Temperature, Mechanical Shock, Vibration, Humidity
    with Condensation, High-Line/Low-Line Voltage Conditions and
    Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
    Specification for Traffic Signal Control Equipment.

  • Outdoor Traffic Management Control
  • – Intra-City and Inter-City Traffic Management
  • Industrial and Factory Automation
  •  High-Speed Computer Links
    – High-Speed Data Transmission
  • CCTV

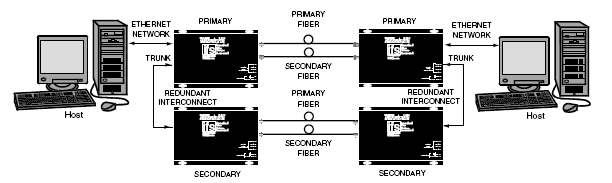

The IFS D7400RHS Series Ethernet transceivers provide transmission of (3) 10/100 Mbps Ethernet data signals in a redundant, self- healing ring network architecture utilizing one optical fiber. The transceivers feature 3 electrical and 2 optical ports and can be configured in a redundant self-healing capacity that allows the user to easily configure a network that is highly reliable. The 3 electrical ports are capable of connecting at 10/100 Mbps Ethernet data 802.3 protocol using auto-negotiating and auto-MDI/MDIX features. Models within this series are available for use with multimode or single mode optical fiber and are compatible with standard 100-FX  networks. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power and link status indicating LED’s for monitoring proper system operation. In addition, 2 continuously active contact closure relays are available to activate an external audible or visual warning signal in the event of a fiber break or loss of power. The modules are available in either stand-alone or rack mount.

SPECIFICATIONS

DATA
Data Interface: Ethernet
Data Rate: 10/100 Mbps
IEEE 802.3 Compliant
Number of Inputs: 3


WAVELENGTH

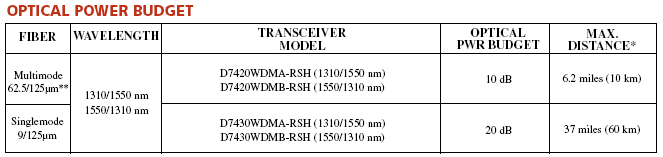

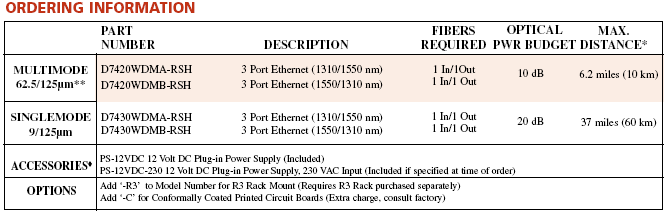

D7420WDMA-RSH 1310/1550 nm
D7420WDMB-RSH 1550/1310 nm
D7430WDMA-RSH 1310/1550 nm
D7430WDMB-RSH 1550/1310 nm



NUMBER OF FIBERS 1

CONNECTORS
Optical: ST
Power: Terminal Plug with screw clamps
Data: RJ-45


ELECTRICAL & MECHANICAL
Power: 12 VDC @800 mA
Number of Rack Slots: 3
Voltage Regulation: Solid-state; independent on each board
Current Protection: Automatic Re-settable Solid-State Current
Limiters
Circuit Board: Meets IPC Standard
Size (in./ cm.) (LxWxH):
Surface Mount: 7.0 x 4.9 x 2.0 in., 17.8 x 12.5 x 5.1 cm.
Rack Mount: 7.7 x 5.0 x 3.0 in., 19.6 x 12.7 x 7.6 cm
Shipping Weight: < 2 lbs./0.9 kg


ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
