Fiber Data and Ethernet Modem Converter

Ethernet & Data Fiber Multiplexer mux one 10/100 Ethernet channel
and 4 to 12 channels of RS-232, RS-422, TTL, or Dry Contact


TC8530
Ethernet & Data
Fiber Optic Multiplexer





  • Multiplexes one 10/100 Ethernet, & 4-12 channels of RS-232, RS-422, TTL, or Dry Contact

  • Network Management (Web, Telnet)

  • Two-Way "One Fiber" Option

  • Multimode or Single Mode (1300/1550nm)

  • Power Redundancy, Optical Redundancy

  • Standard 12VDC, Optional 24VDC, -48VDC, 125VDC or 115/230VAC

  • Industrial Hardened (optional)

  • Hi-Temp2 Version Exceeds NEMA & Caltrans Traffic Control Specs


TC8530S Standalone Unit

on imTC8530R with TCRM195 19" Card Cage


Applications

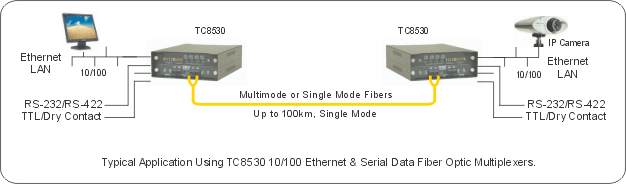

Typical applications include extending SDH/SONET backbones and adding Ethernet and Serial service to existing fiber optic links. Service Providers use the TC8530 as an efficient, cost effective method to provide their customers with Ethernet and Serial connections. The two-way "one fiber," option can double usage of existing fiber optic cable plants.




The TC8530 Ethernet & Data Fiber Multiplexer multiplexes one 10/100 Ethernet channel and 4 to 12 channels of RS-232, RS-422, TTL, or Dry Contact over single mode (1300/1550nm) or multimode fiber (1300/1550nm).

The TC8530 supports distances to more than 100 km and offers a two-way, "one fiber" communication option to maximize fiber cable usage. Optional redundant power and optics include automatic switchover for maximum reliability.

Setup, diagnostics and control is accessed via Serial Terminal, Telnet management ports. Diagnostics include LED indicators, dry contact alarms and local and remote loopback.

The Ethernet port auto-negotiates at 10/100 with full 10Mbps throughput and rate control in increments of 32Kbps. It is IEEE 802.3/802.3u/802.3x compliant. Serial interface are RS-232, RS-422, TTL, Dry Contact.

The TC8530 is available as standalone unit or 1U high "pizza box". Fiber optic connectors are ST, FC or SC. Standard power is 12VDC and includes built-in redundancy. Optional power sources include 24VDC, -48VDC, 125VDC or 115/230VAC with an external power cube. High temperature (-20°C to 70°C) and extreme temperature (-40°C to 80°C) versions are also available.

Specifications

Data Rates
Ethernet 10/100 Mbps (10M on fiber side)
RS-232, RS-422, TTL, Dry Contact Up to 38.4 Kbps
Channel Capacity
Ethernet 1
RS-232, RS-422, TTL, Dry Contacts 12
Optical
Transmitter ELED, ELED, LASER*
Receiver PIN Diode
Wavelength 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST, FC or SC
Loss Budget* (1300nm, 1550nm) Multimode (62.5/125µm): 15dB

Single Mode (9/125µm): 20dB

Electrical
10/100 Ethernet Connectors RJ45 (Female)
RS-232, RS-422, V.35 Connectors RJ45 (Female)




** Future Release
System
Bit Error Rate 1 in 1010 or better
Alarm
Dry Contact Normal Open
Visual Indicators
System PWR A, PWR B, VccA, VccB, ALARM
Channel Status RXD, TXD, Alarm
Optical Signal Status SyncB, Optic in Use, RXA, RXB, VLIN
Diagnostic Functions
Local and Remote Loopback
Power
Standard 12VDC @ 1.2A
Optional 24VDC or  115/230VAC (with external power cube (on Standalone Units)
Optional 24VDC -48VDC, 125VDC or 115/230VAC (on Rack-mount Cards)
Temperature
Operating -10° to 50°C
Hi-Temp (optional) -20° to 70°C
Hi-Temp2 (optional) -40° to 80°C
Storage -40° to 90°C
Humidity 95% non-condensing
Physical (Standalone/Wallmount Unit)
Height (6.70 cm) 2.6"
Width (18.14 cm) 7.1"
Depth (24.80 cm) 9.8"
Weight (1.36 kg) 3 lbs.



jump to fiber Tutorial

jump to related fiber equipment page
jump to  related fiber page
