Ethernet Twisted Pair Extenders |
Long-Distance High Speed Ethernet 10BPS
Extension-Extender
over Twisted pair wire/cable CAT 5-6-7 or
telephone-grade twisted pair
call for your discounted
cost
- Variable rate CopperLINK extender - Easy to configure
- Auto-MDIX Ethernet
- Configurable 10/100, Full/Half, and Auto-Negotiating Ethernet
- Extends network connections up to 5,000 (1.5 km) over 2-wire
24-AWG unconditioned lines
- Switch selectable line rates up to 10 Mbps
- Symmetric or asymmetric settings via DIP switch
- Transparent operation
- LED indicators for Power, Link, Ethernet Link & Activity, and
Remote/Local
for more info view Spec sheet
2150-A4_datasheet.pdf |
 |
The
multi-rate 2150 Ethernet Extenders are ideal for bridging Ethernet spans inside
buildings that are beyond the 328-foot (100-meter) distance limit of Ethernet.

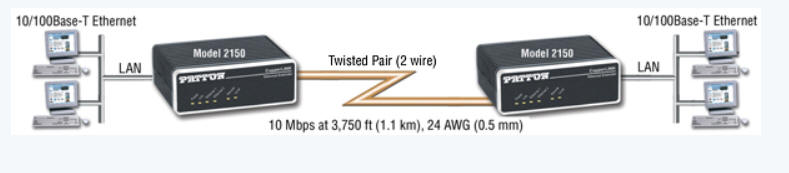

- Long-Distance High Speed Ethernet Extension—Overcome
the 328 ft (100 m) limitation of Ethernet with a
full-duplex 10 Mbps link at distances up to 3,750 ft
(1.1 km).
- Seamlessly Connect and Extend the LAN—802.3
10/100Base-T LAN connection via built-in shielded RJ-45
port.
- Patton CopperLink 2-Wire Connection—Easy
2-wire CopperLink connection via built-in RJ-45 port.
- Dual Auto-sensing Full-Duplex Ethernet—Auto
10 or 100Base-T and full or half-duplex Ethernet
operation.
- Transparent LAN Bridging—Passes higher layer
protocols and supports 802.1Q VLAN tagging.
- Automatic Learning, Aging, and Filtering—Only
allows packets with addresses outside the LAN to be
forwarded.
|
|

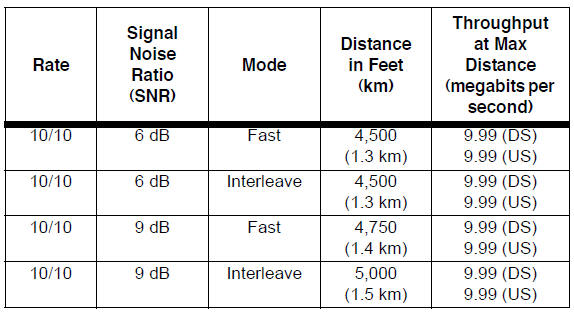

DISTANCE CHART, BASED
ON 24 AWG (0.5 MM)
Note The
actual distance and link performance may vary depending on the environment and
type/gauge of wire used.
Note
DS = downstream, US = upstream
| |
Specs
LAN CONNECTION
•Two shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet
•CopperLINK Connection: Shielded RJ-45 A.2 TRANSMISSION LINE
Two-wire unconditioned twisted pair.
COPPERLINK DISTANCE
•Distance: 5,000 (1.5 km) at 10 Mbps upstream/10 Mbps downstream
Note Distances depend on selected line rate and line conditions.
See
Appendix D on page 19 for details.
LED STATUS INDICATORS
•Power (Green)
•CopperLINK: Link (Green)
•Ethernet: Link (Green) & Activity (Flashing Green)
•Remote (Green)
•Local (Green)
POWER SUPPLY
External AC and DC options:
•AC: 120 VAC, 220 VAC, and UI (120–240 VAC)
•DC: 12 VDC, 24 VDC and 48 VDC
•Power consumption: 860mA at 5V
TEMPERATURE RANGE
0–40°C
HUMIDITY
Up to 90% non-condensing.
DIMENSIONS
1.58H x 4.16W x 3.75D in. (10.6H x 4.1W x 8.8D cm)
POWER
Input to power
supply: universal input 100–240 VAC 50/60 Hz 0.3A |
|
Part Numbers

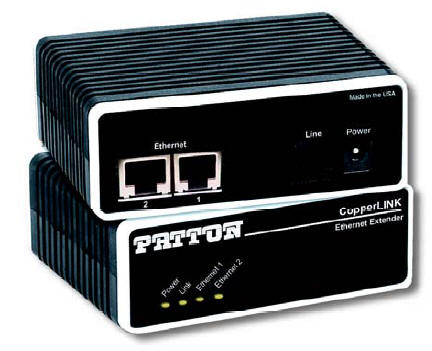

2150/EUI CopperLink 10 Mbps Dual Port Ethernet
Extender; RJ45 Connectors only; 100-240VAC
2150/EUI-2PK CopperLink 10 Mbps Dual Port Ethernet Extender Kit
(1 Local Unit and 1 Remote Unit);RJ45 Connectors only; 100-240VAC
view Spec sheet
2150-A4_datasheet.pdf
Model 2150 User Manual
view other Ethernet
Extenders
