Fiber Phone line converter
Copper Phone line to Fiber Phone line
FXO - FXS lines
- Extend telephone voice transmission from 2km to 120km over fiber
- Network management via terminal, web or SNMP in
AFRM220-CH20
chassis
- Supports telephone voice transmission
- Supports caller ID pass through
- Selectable FXO or FXS mode
- Supports FXS to FXS hot line (ring down)
supports full speed Fax and modems
|
managed
view rack/chassis units
un-managed
rack |
|
Multi-mode
The DCEFRM220FXOFXSASC002 is a POTS (RJ11)
port over fiber optic media converter. The PSTN two-wire POTS
telephone port can be configured either as an FXO (PBX trunk) or
FXS (telephone set/fax machine/dial-up modem) device just by a
simple DIP switch setting. Using a pair of converters, a
telephone line can be extended over a fiber optic circuit,
providing full service and features like Caller ID. The
converter can be used in service mode, alowing connection of 2
telephone sets in between. FRM220-FXO-FXS-ASC002 operates on
multimode fiber up to 2Km (1.3mi) distance. The fiber media
converter is equipped with dual SC type optical connector.
When the DCEFRM220FXOFXSASC002 POTS over fiber converter is
placed in the AFRM220 rack with in-band and SNMP management, the
converters status, type, version, fiber link status, POTS RJ11
port status and alarms can all be displayed. Configuration is
also available to enable or disable the port, reset the port, do
far end fault setting, and initiate local or far end loop-back
tests.
The uniqueness of DCEFRM220FXOFXSASC002 is given by the ability
to convert from standalone media converter to card for the
managed AFRM220 chassis, in matter of minutes. In an always
changing and growing networking environment, such a versatile
feature allows network operators to switch to higher density and
aggregation hubs without the need to purchase new fiber optic
converters. This simple, but so reliable idea, make the
DCEFRM220FXOFXSASC002 media converter the perfect choice for
media converters by data carriers and service providers.
|

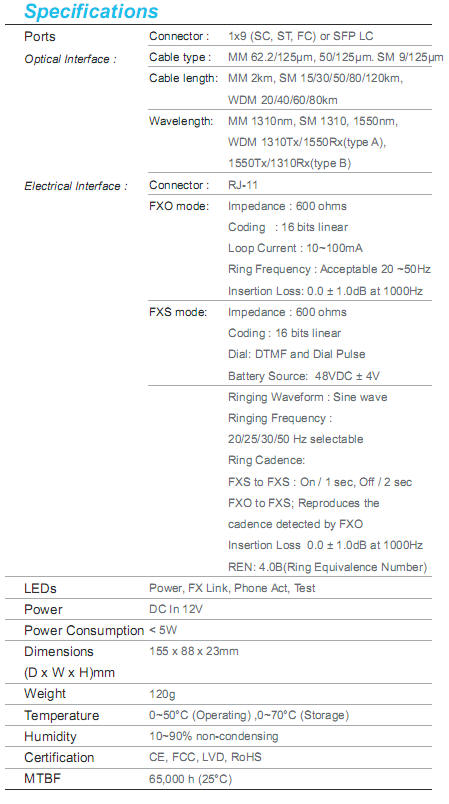

| POTS
Line: |
FXO
(Impedance:600ohms, REN:0.4), FXS (Feedback Voltage: 48VDC,
Ring: 90Vp-p) |
|
Interfaces: |
RJ11 port
600Ohms and dual SC 155M fiber port |
|
Operating wavelength: |
1310nm
multimode |
|
Operating distance: |
2Km on
62.5/125um fiber, works also on 50/125um fiber |
| Optical
connector: |
SC dual
type |
| Front
LEDs: |
Power,
Fiber Link, Di/Do, Test mode |
| Power: |
External
90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades
only), US type main plug |
|
Temperature: |
0 — 50°C
(Operating); 0 — 70°C (Storage) |
|
Humidity: |
20 — 80%
non condensing (Operating); 0 — 90% (Storage) |
|
Consumption: |
less than
5W |
|
Dimensions(WxDxH): |
88mm x
155mm x 23mm |
| Weight: |
330g
(without AC adapter) |
|
Compliance: |
CE, FCC
Class A |
| MTBF: |
65,000
hours |
Single-Mode
The DCEFRM220FXOFXSASC030 is a POTS (RJ11) port over
fiber optic media converter. The PSTN two-wire POTS telephone port can
be configured either as an FXO (PBX trunk) or FXS (telephone set/fax
machine/dial-up modem) device just by a simple DIP switch setting. Using
a pair of converters, a telephone line can be extended over a fiber
optic circuit, providing full service and features like Caller ID.
The converter can be used in service mode, allowing connection of 2
telephone sets in between. FRM220-FXO-FXS-ASC030 operates on singlemode
fiber up to 30Km (19mi) distance. The fiber media converter is equipped
with dual SC type optical connector.
When the DCEFRM220FXOFXSASC030 POTS over fiber converter is placed in
the AFRM220 rack with in-band and SNMP management, the converters
status, type, version, fiber link status, POTS RJ11 port status and
alarms can all be displayed. Configuration is also available to enable
or disable the port, reset the port, do far end fault setting, and
initiate local or far end loop-back tests.
The uniqueness of DCEFRM220FXOFXSASC030 is given by the ability to
convert from standalone media converter to card for the managed AFRM220
chassis, in matter of minutes. In an always changing and growing
networking environment, such a versatile feature allows network
operators to switch to higher density and aggregation hubs without the
need to purchase new fiber optic converters. This simple, but so
reliable idea, make the DCEFRM220FXOFXSASC030 media converter the
perfect choice for media converters by data carriers and service
providers.
ordering info
card and case/enclosure
|
DCEFRM220FXOFXSASC002 |
RJ11 telephone line extender, multi-mode
1310nm, 2Km distance, 11dB optical budget,62.5 or 50/125um fiber, dual SC connector, AC
90~240V power adapter included |
|
|
|
|
DCEFRM220FXOFXSASC030 |
RJ11 telephone line extender, single-mode
1310nm, 30Km distance, 20dB optical budget, 9/125um fiber, dual SC connector, AC 90~240V
power adapter included |
|
|
|
|
DCEFRM220FXOFXSASC20A |
RJ11 telephone line extender, single strand A
type 1310/1550nm, 20Km distance, 9/125um fiber, dual SC connector, AC 90~240V
power adapter included |
|
|
|
|
DCEFRM220FXOFXSASC20B |
RJ11 telephone line extender, single strand B
type 1550/1310nm, 20Km distance, 9/125um fiber, dual SC connector, AC 90~240V
power adapter included |
|
|
|
