IFS D7100 Series Ethernet Optical Transceiver (10/100 Mbps Auto-Sensing)


The IFS D7100 Series Ethernet transceiver is designed to transmit and receive 10 or 100 Mbps data over multimode or single mode fiber. The IFS D7100 Series will function as a 10 Mbps Ethernet link, or as a 100 Mbps Ethernet link without any adjustments. The D7100 Series is environmentally hardened to operate in extreme temperatures. Status indicating LED’s for power and data type are present at the RJ-45 connector and at the fiber optic transceiver end. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The modules are available in either stand-alone or rack mount versions.

---

10/100 Mbps Ethernet  Auto-Negotiating 10/100 Selectable Full Duplex or Half Duplex Data Auto Network Detection MDI/MDI-X Distances up to 45 km (28 miles) Exceeds NEMA TS-1/TS-2 & Caltrans Traffic Signal Control Equipment Environmental Specifications For Operating Temperature, Humidity, Shock, Vibration and Voltage Transient Protection Multimode and Single Mode Versions Available ST Optical Connectors Standard No In-field Electrical or Optical Adjustments Required Power, Transmit and Receive Data Status LED Indicators Hot-Swappable Rack Modules IEEE 802.3 Compliant Comprehensive Lifetime Warranty

---

• SPECIFICATIONS

DATA
Data Interface: Ethernet
Data Rate: 10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex
WAVELENGTH
D7120 1310 nm, Multimode
D7120WDM 1310/1550 nm, Multimode
D7130WDM 1310/1550 nm, Singlemode
NUMBER OF FIBERS
1 or 2
CONNECTORS
Optical: ST
Power: Terminal Plug with screw clamps
Data: RJ-45
ELECTRICAL & MECHANICAL
Power:
Surface Mount: 12 VDC @200 mA
Rack: From Rack
Number of Rack Slots: 2
Voltage Regulation: Solid-state; independent on each board
Current Protection: Automatic Resettable Solid-State Current
Limiters
Circuit Board: Meets IPC Standard
Size (in./ cm.) (LxWxH):
Surface Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm.
Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5 cm
Shipping Weight: < 2 lbs./0.9 kg
ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
† May be extended to condensation conditions by adding suffix ‘–C’ to model
number for conformal coating.

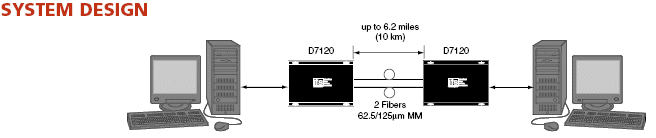

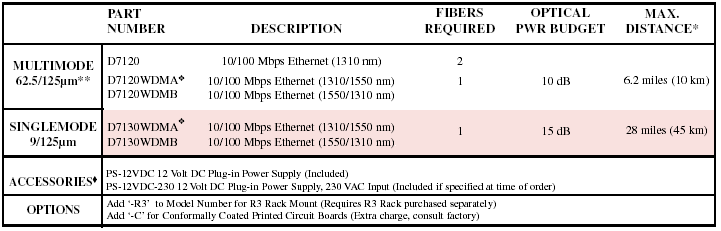

Part numbers to order
