RS232 -
RS422 data fiber modem
- D9110E
- D9110EWDMA
- D9110EWDMB
- D9120E
- D9130E
- D9130EWDMA
| RS232 and RS422 Fiber Data Modem |

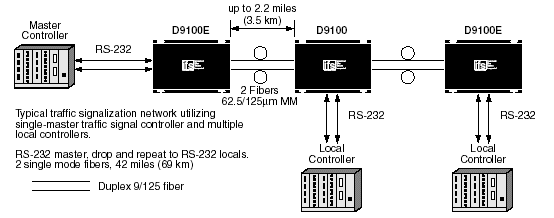

RS-232 Fiber Optic Data Modem for
Point-to-Point or Star Networks

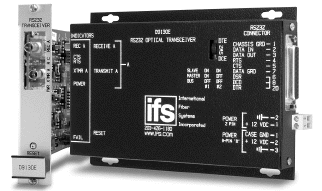

The IFS D9100E series consists of fully-digital transceiver units designed for implementing point-to-point or star traffic signalization/ communications data networks. These environmentally hardened units are ideal for use in unconditioned out-of-plant or roadside installations and may also be utilized in channelized linear drop-and-repeat communications networks as either the local end-of-line transceiver unit or as the master beginning-of-channel device. Optional battery back-up capability provides the highest level of network reliability in the event of loss of local 115 VAC prime operating power. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. LED indicators are provided for rapidly ascertaining equipment operating status, and these units are available in either stand-alone or rack mount configurations.
|
RS232 -
RS422 data fiber modem
|
|
One or Two Fiber Versions Available
Optional Internal Battery Back-up Provides a Minimum of 12
Hours Operating Time in the Event of Loss of 115 VAC Prime
Operating Power, and Maintains Continuous Channel
Communications
LED Status Indicators Provide Rapid Indication of Critical
Operating Parameters
User-Selectable DTE or DCE Interface Ensures
Ease of Installation and Maximum Versatility
Solid-State Current Limiters on all power lines
provide unconditional equipment protection
Wide Optical Dynamic Range: Optical Attenuators are Never Required
NTCIP Compatible
Tested and Certified by an Independent Testing Laboratory for
Full Compliance with the Environmental Requirements (Ambient
Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
Robust Design Ensures Extremely
High Reliability In Unconditioned
Out-of-Plant/
Roadside Environments
User-Configurable Optical and
Electrical Anti-Streaming Provides
Network protection against faulty
streaming controller operation
Comprehensive Lifetime Warranty

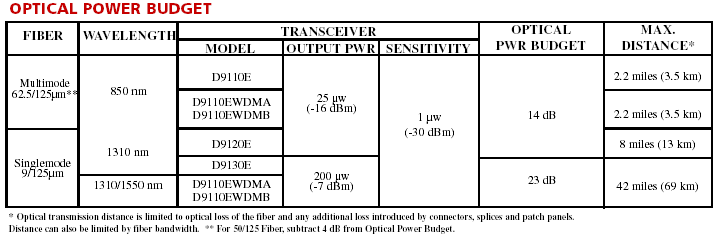

| PART | FIBERS | OPTICAL | MAX. | |||
| NUMBER | DESCRIPTION | REQUIRED | PWR BUDGET | DISTANCE* | ||
| D9110E | Transceiver (850 nm, LED) | 2 | 14 dB | 2.2 miles (3.5 km) | ||
| MULTIMODE | ||||||
| 62.5/125µm** | Transceiver (850/1310 nm, LED) | |||||
| D9110EWDMA | ||||||
| 1 | 14 dB | 2.2 miles (3.5 km) | ||||
| D9110EWDMB | Transceiver (1310/850 nm, LED) | |||||
| D9120E | Transceiver (1310 nm, Laser) | 2 | 14 dB | 8 miles (13 km) | ||
| D9130E | Transceiver (1310 nm, LED) | 2 | 23 dB | 42 miles (69 km) | ||
| SINGLEMODE | ||||||
| 9/125µm | D9130EWDMA | Transceiver (1310/1550 nm, Laser) | ||||
| 1 | 23 dB | 42 miles (69 km) | ||||
| D9130EWDMA | Transceiver (1550/1310 nm, Laser) | |||||
| PS-12VDC 12 Volt DC Plug-in Power Supply (Included) | ||||||
| ACCESSORIES | ||||||
| PS-12VDC-230 12 Volt DC Plug-in Power Supply, 230 VAC Input (Included if specified at time of order) | ||||||
| Add ‘-R3’ to Model Number for R3 Rack Mount (Requires R3 Rack purchased separately) | ||||||
| Add ‘-SC’to Model Number for SC Optical Connectors (For single mode equipment only) | ||||||
| OPTIONS | Add ‘-FC’to Model Number for FC Optical Connector (For single mode equipment only) | |||||
| Add ‘-C’for Conformally Coated Printed Circuit Boards | ||||||
| Add ‘-B’Suffix for NIMH Battery Back-Up Option | ||||||
| * Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. | ||||||
| Distance can also be limited by fiber bandwidth. | ** For 50/125 Fiber, subtract 4 dB from Optical Power Budget. | |||||
| All accessories are third party manufactured. | ||||||
| SPECIFICATIONS | ||
| DATA | ||
| Data Interface: | RS-232 C/D, RS-422 | |
| Data Rate: | DC to 100 kbps | |
| Bit Error Rate: | <1 in 10-9 @ Maximum Optical Loss Budget | |
| Anti-Streaming Time-out: | 4, 8, 16, 32, 64 Seconds, or Infinity | |
| (disabled) | ||
| Operating Mode: | Asynchronous, Simplex or Full-Duplex | |
| WAVELENGTH | 850 or 1310 nm, Multimode | |
| 1310 nm, Singlemode | ||
| NUMBER OF FIBERS | 1 or 2 (see ordering information) | |
| CONNECTORS | ||
| Power: | Terminal Plug with Screw Clamps• | |
| Data: | Type DB-25S | |
| Optical: | ST, SC or FC (see ordering information) | |
| OPTICAL EMITTER | 850 or 1310 nm, Multimode: LED | |
| 1310 nm, Singlemode: Laser Diode | ||
| LED INDICATORS | 1. Transmit Data, Optical Channel A(TD-1) | |
| 2. Receive Data, Optical Channel A(RD-1) | ||
| 3. Receive Data, Optical Channel B(RD-2) | ||
| 4. Power On (PWR) | ||
| 5. Fault / Antistreaming Activated | ||
| 6. Request to Send (RTS) | ||
| 7. Clear to Send (CTS) | ||
| ELECTRICAL & MECHANICAL | ||
| Power: | ||
| Surface Mount: | 12 VDC @ 250 mA | |
| Rack: | From Rack | |
| Number of Rack Slots: | 1 (2 slots required for units with ‘-B’Battery | |
| Back-Up Option.) | ||
| Current Protection: | Automatic Resettable Solid-State Current | |
| Limiters | ||
| Circuit Board: | Meets IPC Standard | |
| Size (in./ cm.) (LxWxH): | 7.0 x 4.9 x 1.0in., 17.8 x 12.5 x 2.5 cm. | |
| 7.0 x 4.9 x 2.0 in., 17.8 x 12.5 x 5.0 cm. | ||
| with "-B" Battery Option | ||
| Shipping Weight: | < 2 lbs./0.9 kg | |
| ENVIRONMENTAL | ||
| MTBF: | > 100,000 hours | |
| Operating Temp: | -40° C to +74° C, ambient | |
| Storage Temp: | -40° C to +85° C, ambient | |
| Relative Humidity: | 0% to 95% (non-condensing)† | |
| BATTERY BACK-UP | ||
| OPTION | Internal, Rechargeable Nickel Metal Hydride | |
| Battery | ||
| Operating Period: 12 Hours, Minimum | ||
| • Optional Type DB-9P: Specify connector style at time of order. | ||
| † May be extended to condensation conditions by adding suffix ‘–C’to model | ||
| number for conformal coating. | ||
| Add suffix ‘-B’to Model Number for Battery Back-Up | ||
