23GHz Microwave Wireless
LAN Radio System

Series 1200 LAN Radio System offers 10/20 Mbps Wireless Switching/Bridging
with Auto-Negotiation 10/100 RJ-45 port.

 DirectWireless 1200 LAN
.5 mile (800m) to 10 miles (16km)

outhwest Microwave's newest radio is a high performance, high bandwidth, point to point radio system incorporating a 10/100 Ethernet Bridge/Switch controller at each radio to optimize wireless connectivity.

The Bridge/Switch controller interface allows our new radios to operate at a continuous 10 Mbps or full duplex mode at 20 Mbps. The high performance switch engine allows for wire-speed filtering and forwarding of traffic.

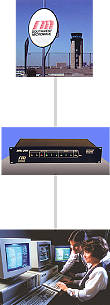

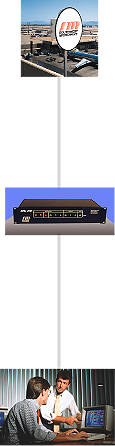

The 1200 is designed for easy deployment, installation and alignment without the need for special tools or equipment. A true plug and play radio which includes integrated 2 foot parabolic antennas, lightning protection modules and our indoor MSi 200 Series interface to your network with an auto-negotiation RJ-45 port. The interface unit also provides power to the radio with an integral power supply.

Multiplexed T1/E1 access is also available for telephony and multimedia applications with our MSi 220 Series.

All Southwest Microwave radios are tuned to a specific frequency to ensure interference free operation and provide a reliable communications link. Frequency and FCC license are easily obtainable. No customer adjustments are required.

1200 Features:
  • Transparent Wireless Switching/Bridging

  • 10/100 UTP, RJ-45, Ethernet Network Interface, Half or Full Duplex, Auto-Negotiation

  • High Data Throughput 2OMbps (lOMbps, 1/2 Duplex)

  • Optional Fiber Optic Interface

  • True Plug & Play Operability, Nothing to Adjust

  • EMI/RFI Protection

  • Multiplexed T1/E1 Channel Optional

  • Licensed Operation Ensures Interference Free Operation

 jump to related pages


System Components
(2) 950 Radios
(2) MSi 200 switched interfaces
(2) Radio mounting brackets

Frequency Range 21.2 GHz - 23.6 GHz
Input Voltage 11 - 24 VDC Range
Modulation FM
Duplex Full Duplex
T/R Separation 1.2 GHz (Adjustable to any CCIR Rec. 637 plan)
System Gain 161 dB w/ 2 Ft. Antenna
Power Consumption 35 W
Size 26 in. dia X 14 in. depth
Weight 20 lbs. (9 kg)
Mounting Bracket attachment to 2.5 in. dia. pole
Emission Designator 24M0F1D
FCC Identifier CA6950
Power Output 18 dBm (Typical)
Frequency Stability +/-.03 %
Type Gunn Diode Oscillator
Sensitivity (lE-6 BER) -65 dBm
Type Single Conversion with AFC
Noise Figure 12 dB
IF Frequency 140 MHz
Polarization Vertical or Horizontal
Size 24 in. (60 cm) 2 ft.
48 in. (120 cm) 4 ft.
Gain 39 dBi - 2 ft.
44 dBi - 4 ft.
Beamwidth 1.6 degrees (3 dB)
0.8 degrees (3 dB)
Operating Temperature -30C to +55C
Storage Temperature -40C to +65C
Relative Humidity Up to 100%
Wind Loading Withstand 125 mph wind
Status and Alarms
  • Power
  • Link Integrity
  • Align
  • Radio TX and RX
  • Collision
  • Automatic Frequency Lock
  • Remote Align
  • Test Tone
