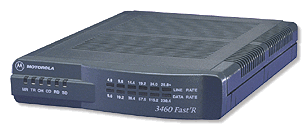

3460 Fast'R Modem

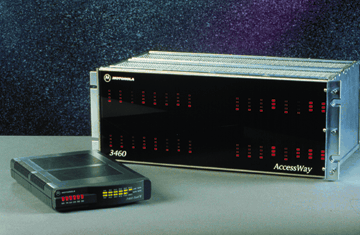

3460 Fast'R Series33.6kbps Sync: Async to 230.4K w/V.42bis Data rates: 33.6K (ITU V.34), 28.8K (V.34), 14.4K (V.32bis), 9600 (V.32), 7200, 4800, 2400 (V.22bis), 1200 (212), 300 bps 2-wire dial leased line and 2/4-wire dial leased line with restoral Available in standalone, stackable, or rackmount for 3460 AccessWay nest supporting up to 16 dual cards per rack Auto-call: AT; V.25bis, LPDA Front panel Speedbar LEDs display configured line rate and actual data rates World wide availability Flash memory for easy upgrades 9000 UX or 9000 PC SNMP manageable remote configuration Extensive security features control unauthorized access Real time line statistics for pro-active network management Fast'R Vu Windows® based Configurator.


Fast'R Vujump to Manual



Fast'R Vu, An Industry First! With the Fast'R Vu manager, implementation and upgrades have never been easier!




Adaptive Rate System (ARS) Automode, Autobaud
Years of modem experience have produced one of the industry¹s best algorithms for selecting the optimum modulation scheme, the highest DTE rates, and automatically falling forward and back data rates to ensure the highest error free data throughput
Extensive security features
Controls unauthorized access - freezes out hackers
integral Circuit Quality Monitoring System (CQMS)
Real time line statistics for pro-active network management
V.54 diagnostic test suite
Industry standard tests isolate any degradation in network performance
Telenetics' Customer Support
Service and support worldwide when you need it
Compliance to Industry Standards
Ensures interoperability and compatibility.
Complies to Relevant Safety & Emissions Standards
Available world wide.
Flash Memory
Easy upgrade of 3460 Fast'R software releases.
Fast'RVu Windows based PC Application Software
Simple and quick installation of central sites - in just minutes!
Pull-down, menu driven GUI Interface
for configuration, test and real time modem status and line quality of both local and remote modems saves valuable time and costly mistakes - anyone can easily set-up and monitor the 3460 Fast'R modems.
9000 UX or PC SNMP management
Full management including extensive user programmable alarms on a wide variety of operational and performance parameters. Reports and statistics on faults and utilization, facilitates optimization of dial pool resources to maximize user satisfaction.
Fast'R PLUS LCD Front Panel
The 16-character display and four pushbuttons let you view and change configuration parameters. It also allows you to initiate tests and view status.



PDF file of specifications

Transmission Rates:
33.6, 31.2, 28.8, 26.4, 24.0, 21.6, 19.2,16.8, 14.4, 12.0, 9.6, 7.2, 3.8, 2.4, 1.2Kbps (+0.01% sync; +/-2.5% asynch). 300 bps in asynch only.

Operating Modes
V.34, V.32bis, V.32, V.23, V.22bis, V.22,V.21, Bell 212, Bell 103

Calling Interfaces
Hayes AT and ITU-T V.25 bis (synchronous only)

Line Types
2-wire dial line or 2/4-wire leased line
Error Correction & Data Compression
V.42, LAP-M & MNP 4; V.42bis & MNP 5

Transmitter Section
: Output level tolerance: +/- 1.0 Db
: Output level: country dependent
: Timing: Selectable internal, external, loopback

Environment
: Operating temperature: +32° to 122°F (0° to 50°C)
: Storage temperature: -40° to 158°F (-40° to +70°C)
: Relative humidity: 0 to 95% non-condensing

Certification Compliance/Approvals
: Safety: UL 1950, CSA 950, IEC 950, EN60950
: Telecom: Country compliance as required, including FCC Part 68 (U.S.), IC-CS-03 (Canada),JATE
: EMC Compliance

Standalone - FCC Part 15, Class B; CISPR 22 and EN 55022, Class B; AS 3548, Class B; EN 50082-1

Nest and Dual Modem Cards - FCC Part 15, Class A; CISPR 22 and EN 55022, Class A; AS 3548, Class A; EN 50082-1

: CE marked for compliance to the EU LVD, EMC and TTE directive

Physical
: AccessWay for 3460 Fast¹R
: Size (H x W x D): 7"x 19"x10.5" (cm: 17.78 x 48.26 x 26.7)
: Power: 100/120/220/240 VAC nominal (switch-selectable),
: Frequency: 50/60 Hz or -48V DC nominal (redundant)
: 3460 Fast'R PLUS Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
: 3460 Fast¹R Standalone size (H x W x D): 1.75" x 6.75" x 9.6" (cm: 4.45 x 17.15 x 24.38)
: 3460 Fast¹R Nest Cards size (H x W x D): 0.9" x 6.75" x 9.6" (cm:2.29 x 17.15 x 24.38)
: 3460 Fast¹R Vanguard Daughter Card size (H x W x D): 0.87" x 2.95" x 8.86" (cm:2.20 x 7.50 x 22.50)

Power Requirements
Standalone: 9V AC, 50/60 Hz, 800 mA
Nest: 100/120/200/240V AC, 50/60 Hz, 1.2/1.0/0.6/0.5 A



To Order

39500 3460 FAST'R S/A U.S.
39600 3460 FAST'R DUAL MODEM NEST Card U.S.
39501 3460 FAST'R S/A CANADA
39601 3460 FAST'R DUAL MODEM NEST Card CANADA
39599 3460 STACKSIX STACKING KIT
39708 3460 ACCESSWAY 110 V RJ TERM
39710 3460 ACCESSWAY -48VDC MASS TERM
39719 3460 ACCESSWAY 110/220V SPR PWR SUPPLY
39720 3460 ACCESSWAY -48VDC SPR PWR SUPPLY
39718 3460 ACCESSWAY -48VDC SPR PWR SUPPLY CARD
29900 3460 FAST'R SLR S/A U.S.
39900 3460 FAST'R SLR NEST Card U.S.
29901 3460 FAST'R SLR S/A CANADA
39901 3460 FAST'R SLR NEST Card CANADA
39733 3460 ACCESSWAY 110 V RJ TERM
39739 3460 ACCESSWAY -48VDC RJ TERM
