Motorola UDS Rack / Chassis

This enclosure features modular, redundant power supplies, multiple backplane configurations and the ability to mount it in either a 19" or a 23" cabinet using a reversible bracket. It supports the following Motorola ISG transmission products: V.3229, V.3400, V,3600 analog modems, UTA 220 ISDN TA, MR64 CSU/DSU, and FT100 T1-Fract. T1 CSU/DSU.


The Versatile Motorola RM16M 16 slot enclosure

Whether using dial or lease line modems with restoral, DSU/CSU's or ISDN, the RM16M is the right choice. Power options include 115 VAC, -48 VDC, 230 VAC; RJ45 or Mass Termination in a rack mount solution, the RM16M shelf is THE product of choice.

Motorola can provide you with the correct solution to your Rack Mount requirements in a simple, easy to use rack system. Whether you need V.3600 modems, FT100 dual port T1 DSU, or a UTA 220 ISDN card, there is a rack to fit your requirements.

(Shown without a power supply)

The RM16M shelf is the ideal 16 slot enclosure for all your transmission product requirements. This enclosure features modular, redundant power supplies, multiple backplane configurations and the ability to mount it in either a 19" or a 23" (19" or 23' wide by 7.25" tall by 10" deep) cabinet using a reversible bracket. It supports the following Motorola  transmission products: V.3229, V.3400, V,3600 analog modems, UTA 220 ISDN TA, MR64 DSU/CSU, and FT100 T1-Fract. T1 DSU/CSU.

Models

The Model 1 enclosure is a 115 VAC enclosure featuring a full backplane to support 16 PSTN V.32XX modems. Each slot is equipped with one RJ45 modular jack and one RS 232 DTE (DB25 F) interface.

Part # 62005201

The Model 2 enclosure. Same as above except the backplane has 2 PSTN 50 pin Mass Termination connectors with 4 port wire wrap in place of the RJ45 connections.

Part # 62005202

The Model 3 enclosure is our modular enclosure for maximum flexibility. This 115 VAC enclosure ships with blank segments instead of a backplane enabling "mix and match" of modems and DSU/CSU's in the same enclosure. DSU/CSU cards (MR64 and FT100) ship with a single slot backplane, modem back-planes are ordered separately.

Part # 62005203

Other shelves include 230 VAC and -48VDC versions of above, as well as lease line and dial back-up via dual modular or dual mass termination back-planes. The following page contains the currently available models as well as options and accessories.



Product
Code Description

62005201

RM16M 19 Model 1 19" by 7.25" tall MOD TEL 115VAC

62005202

RM16M 19 Model 2 19" by 7.25" tall MASS Term 115VAC

62005203

RM16M Model 3 19" by 7.25" tall Segmental 115VAC

62005220

RM16M Model 20 23"by 7.25" tall  Mass Term 48VDC

62005221

RM16M Model 21 19" by 7.25" tall Mass Termination 48VDC

62005223

RM16M Model 23 19" by 7.25" tall Segmental 48VDC

62005224

RM16M Model 24 19"by 7.25" tall MOD TEL 48VDC

62005227

RM16M Model 27 19" by 7.25" tall Dual MOD TEL 115VAC

62005228

RM16M Model 28 19" by 7.25" tall Dual Mass Termination 115VAC

62005233

RM16M Model 33 19" by 7.25" tall Dual MOD TEL 48VDC

62005234

RM16M Model 34 19" by 7.25" tall Dual Mass Termination 48VDC

Product
Code Description

6500205200020

Backplane 19 Left Side Single Mod

6500205300020

Backplane 19 Right Side Single MOD

6500207100010

Backplane 19 Left Side Mass Termination

6500207200010

Backplane 19 Right Side Mass Termination

6500299000010

Backplane 19 Left Side Dual MOD

6500299100010

Backplane 19 Right Side Dual MOD

6500299500010

Backplane 19 Right Dual Mass Termination

6500299600010

Backplane 19 Left Side Dual Mass Termination

Product
Code Description

6500216300000

Blank Segment Assy

6500291000010

Backplane 1 Slot DB25/Dual Modular

6500425400010

Backplane 1 Slot DB25/Single Modular

Product

FT100 backplane options

Code Description

6500378800010

Backplane 2 Slot 4 Port Segment

6500378900010

Backplane 4 Slot 8 Port Segment

6500379000010

Backplane 8 Slot 16 Port Segment

6500446200010

Backplane 8 Slot 16 Port Segment

Product
Code Description

6500204900010

Power Supply RM16 115VAC

6500238500010

Power Supply RM16 Redundant 48VDC

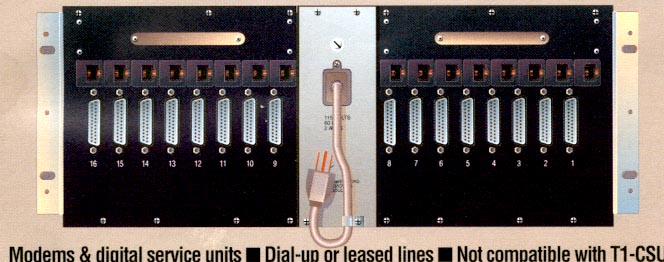

UDS RM16M Model 1 Chassis/Rack fits all older "mini modem cards (stand alone or rack card)" modems (with out dial back-up)

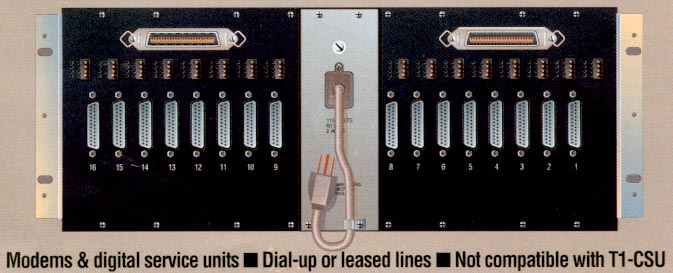

DS RM16M Model 2 Chassis/Rack 50 pin Mass Term / Wire Wrap fits all older "mini modem cards (stand alone or rack card)" modems (with out dial back-up)

UDS_RM16M_Model_27_and 28_chassis-rack.jpg (88766 bytes)

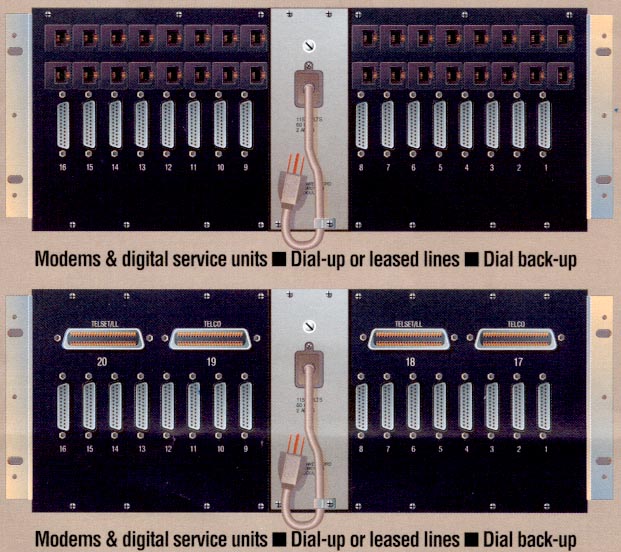

DS RM16M Model 27 and 28 Chassis/Rack 50 pin Mass Term / Wire Wrap - fits all older "mini modem cards (stand alone or rack card)" modems (with out dial back-up) - use this chassis for any modem or CSU that has a dial back-up feature


You  may also want to consider pre-owned gear!

jump to related rack mount modem/CSU pages
