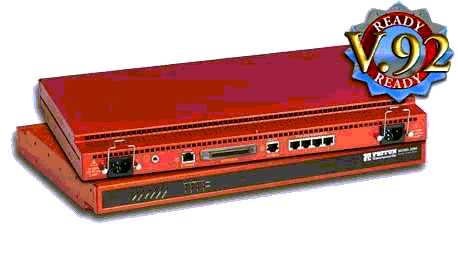

Patton Electronics  2960 & 2996 ISP RAS

48-Port, V.92/V.110/V.90/ISDN, Dial-Up, Remote Access Server (RAS)


The Patton 2960 remote access server provides 48 dial-up ports, each supporting V.92, V.110, V.90, K56Flex™, V.34+, and ISDN connections.


Patton Electronics  2960 & 2996 ISP RAS
 2960/16  2960/30  2960/48  2960/60  2996/96


Patton 2960 /16 16-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS
Patton 2960 /24 24-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS
Patton 2960 /30 30-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS
Patton 2960 /48 48-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS
Patton 2960 /60 60-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS
Patton 2996 /96 96-Port  V.92/V.90/ISDN Dial-Up Remote Access Server RAS



Supports digital ISDN or analog connections
V.92, V.90, K56Flex, V.34+, etc
1U-high 19 inch wide rackmount chassis.
 Dual Redundant Power Supply
Redundant DSP's
V.92 Supported
No Moving Parts
Integrated WWW server for management and configuring
10/100 full duplex, Auto sensing Ethernet LAN


The Patton 2960 RAS is an ideal solution for the established Internet Service Provider that is expanding into a new calling area. By integrating capabilities into our 2960 Remote Access Server, the ISP lowers expansion costs and produces revenue immediately.

The 2960 RAS integrates 48 analog and digital modems, RAS software, a 10/100 Ethernet port, IP Routing, Frame Relay forwarding, and four E1/T1 CSU/DSUs. It connects 48 dial-in-modem V.92, V.90, K56Flex, V.34+ or ISDN users to the Internet, IP LANs, or Corporate Intranets. Load-sharing dual-redundant power supplies and integrated Web-based SNMP/HTTP management system capabilities make our 2960 RAS the most reliable and easiest to use RAS in the business!
