The StarComm 202T modem is a Frequency Shift Keyed (FSK) 202 modem designed for asynchronous operation up to 1800bps. The model 202 modem provides asynchronous, half-duplex communication on 2-wire private line circuits and full-duplex communication on 4-wire private line circuits. All models are available in either rack mount or stand alone version.

SCADA Communications Solutions for Utility and Industrial Automation applications

202 modem 4 wire leased
Solar Power Compatible

Bell 202 202T, 202S MODEMS

202 Modems - The following modems offer Bell 202 modem - 202S and 202T modem compatibility. Custom options are also available for dial operation and onboard protocol support.

For years, the Bell 202 modem has delivered reliable low speed multi-point communications. Today, this device still enjoys great popularity due its ability to communicate under adverse conditions. The Bell 202 remains the right choice for telemetry applications, control systems, transaction applications and for reliable data delivery over RF or cellular connections.

MODERN SEMICONDUCTOR TECHNOLOGY - The StarComm 202ST offers a modem implementation of this classic modulation standard. In this design, we have utilized the latest semiconductor technology to guarantee a level of performance and reliability that cannot be matched by older designs. Like all StarComm communications products, the 202ST is designed and manufactured to withstand the rigors of industrial use. Therefore, you can expect years of trouble free operation.

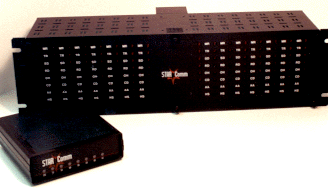

STAND ALONE OR RACK MOUNT - The 202ST is available in our standard stand alone or rack mount configurations. In addition, this device is available at the board level for OEM applications.

STANDARD OR CUSTOM FEATURES - The StarComm 202 modem is offered in two standard versions:

* 4 Wire Leased Line (202T modem )

* 2 Wire Leased Line  (202 modem)

However, the 202ST was designed to allow implementation of a wide variety of OEM applications. Like all StarComm designs, it is micro-controller based so that it may support custom interfaces and protocols. In addition, the line interface of the 202ST is capable of supporting either leased circuits, dial circuits or short haul twisted pair.

FLEXIBLE POWER SUPPLY OPTIONS -
The StarComm 202 modem offers power options to meet a wide range of AC and DC applications.

FEATURES AND SPECIFICATIONS

• ENGINEERED AND MANUFACTURED TO COMMERCIAL STANDARDS.

• EASY TO CONFIGURE.

• FRONT PANEL LIGHTS - MR (DCE) Modem Ready, SD Send Data, DTR Terminal Ready,
  RD Receive Data, OH Off Hook, CD Carrier Detect

• COMPATIBILITY - Bell 202S, 202T compatable with all standard bell 202S or 202T modems

• DTE INTERFACE - RS-232C (V.24) 0 - 1800bps

• CONFIGURATION CONTROL - Parameters set through switches.

• LINE INTERFACE - Standard: 4 wire leased. Optional: 2 wire leased Optional: 2 wire dial.

• POWER (STAND ALONE UNITS) - Standard units automatically adjust to 9VAC or 9-14VDC Optional wide range DC supply operates from 5.5-14VDC.

• POWER (RACK MOUNT) - Standard CC-2016 rack automatically adjusts to 85-265VAC, 27-44OHz. Optional  DC supply automatically adjusts to positive or negative 36-75VDC

• ENVIRONMENTAL - Operating temperature range: 0-50C. Humidity: 90% non-condensing.

• APPROVALS - Standard: FCC Part 68 & Part 15, Class A. Optional: International approvals available.

• PHYSICAL (STAND ALONE UNITS) - Dimensions: 5.30"L x 5.05"W x 1.53"H. Weight: l2oz.

• PHYSICAL (RACK MOUNT) - Fits standard CC-2016 rack. 4.73"L x 4.60"W x.80"H. Weight: 9oz.


jump to DC power connections diagram
(NOTE power plug polarity - center pin is positive and the out side of 5.5 barrel connector is negative)
