Loop-IP6610 E1/T1-Router/Bridge support DB9S console port, which allows users to execute in-service diagnostics and fault isolation from a local or remote terminal. Loop-IP 6610 E1/T1-Router/Bridge also allow remote site to telnet via Ethernet port. The IP 6610 E1/T1-Router/Bridge series also provides multicolor LED indicators on the front panel and ACO (Alarm Cut-Off) button.

IP 6610 E1/T1-Router/Bridge Box

• Support 1 LAN ports
• Support 1 E1/T1 WAN port
• Support built-in 4-port Ethernet switch function (Optional)
• Support 10/100 BaseT speed auto-sensing  and half/ full duplex auto-negotiation.
• Support Router or Bridge mode
• Multicolor LED indicators.
• Local control and diagnostic via DB9S console port.
• Local/ remote management through local console, LAN, or WAN
• Support CLI (command line interface)
• Support SNMP management

OLD part #s click here to see new part numbers

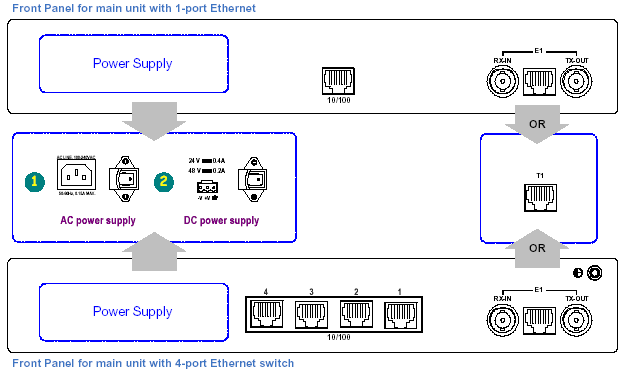

Model Description
Loop-IP 6610-E75-1EH-BR-pp Bridge function with 75 ohm E1 and 1-port Ethernet
Loop-IP 6610-E75-4EH-BR-pp Bridge function with 75 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E75-1EH-RT-pp Router & Bridge function with 75 ohm E1 and 1-port Ethernet
Loop-IP 6610-E75-4EH-RT-pp Router & Bridge function with 75 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E120-1EH-BR-pp Bridge function with 120 ohm E1 and 1-port Ethernet
Loop-IP 6610-E120-4EH-BR-pp Bridge function with 120 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E120-1EH-RT-pp Router & Bridge function with 120 ohm E1 and 1-port Ethernet
Loop-IP 6610-E120-4EH-RT-pp Router & Bridge function with 120 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-T-1EH-BR-pp Bridge function with T1 and 1-port Ethernet
Loop-IP 6610-T-4EH-BR-pp Bridge function with T1 and 4-port Ethernet switch
Loop-IP 6610-T-1EH-RT-pp Router & Bridge function with T1 and 1-port Ethernet
Loop-IP 6610-T-4EH-RT-pp Router & Bridge function with T1 and 4-port Ethernet switch

" where pp is used to select power supply:
pp = Description
AC Fixed AC power supply
DC Fixed DC power supply (For 24Vdc and 48Vdc: 20-60 Vdc)
DC24 Fixed DC power supply (For 24Vdc: 18-36 Vdc)
DC48 Fixed DC power supply (For 48Vdc: 36-72 Vdc)



Loop-IP 6610 E1/T1-Router/Bridge Box Product Specification
Line Interface
Line Rate 2.048 Mbps ± 50 ppm Jitter ITU G.823
Data Rate n x 64Kbps (n=1 to 31) Connector BNC (75 ohm), RJ48C (120
Line Code AMI/ HDB3 Output signal ITU G.703
Input Signal ITU G.703 Electric 75 ohm/ 120 ohm twisted pair

LAN Interface WAN Interface
    Support SNMP management ! Layer 2 protocol: HDLC, PPP
    Physical interface 10/100 Mbps ! Single WAN port
    RJ45 connector ! Remote bridge support (padding/ un-padding
    Built-in 4-port Ethernet switch Ethernet CRC checksum)
Physical Interface Power Interface
    WAN: E1/FE1 or T1/FT1 (Integrated CSU/DSU) ! AC : Full range support 100 - 240
    LAN: 10/100 Base-T Ethernet port ! DC: 24V or 48V support manufacture option
    - Speed auto-sensing (36 Vdc - 75 Vdc)
    - Half/ full duplex auto-negotiation ! Power consumption: Max. 6 watt
    - Auto MDI-X
Routing Protocol NAT
    Static Route ! NAPT
    RIP v1 & v2
Remote Bridge Management
    PPP/BCP ! SNMP v1/v2
    User configurable aging time ! MIB: MIBII, Ethernet MIB, Transmission MIB
    Up to 16K MAC Table ! Telnet
    Cisco ISL packet transparent ! Serial console with CLI
    VLAN packet transparent ! TFTP firmware download
    Bridge with IP ! Configuration upload/ download
    SNMP/ Telnet via data channel
Administration & Diagnostics Console Port
    Access control Connector DB9S
    Ping Electric RS232
    Loopback Protocol CLI
    Telnet
Diagnostics Test
Loopbacks Line Loopback, Payload Loopback, Local Loopback, and Router to Line Loopback
Test Pattern 15-bit PRBS, 3-in-24, 1-in-8, 2-in-8, ALT 1
Idle Channel Use of idle channel to perform PRBS diagnostic test
Performance Monitor
Performance Store Last 24 hours performance in 15-minute intervals and last 7 days in 24-hour summary line, user, and
remote site
Performance Reports Date & Time, Errored Second, Unavailable Second, Bursty Errored Second, Severe Errored Second,
Controlled Slip Second, and Loss of Frame Count
Alarm History Date & Time, Alarm Type, and Location
Alarm Queue Maximum 40 alarm records which record the latest alarm type, location, and date & time
Physical
Dimensions 210 x 140 x 41.5 cm (WxHxD)
Temperature 0 -50°C
Humidity 0-95% RH (NON-CONDENSING)
Mounting Desk-top stackable, wall mount
Power Source (AC) 100 to 240 Vac, 50-60 Hz
Power Source (DC) For 24Vdc and 48Vdc: 20-60 Vdc
For 24Vdc: 18-36 Vdc
For 48Vdc: 36-72 Vdc
