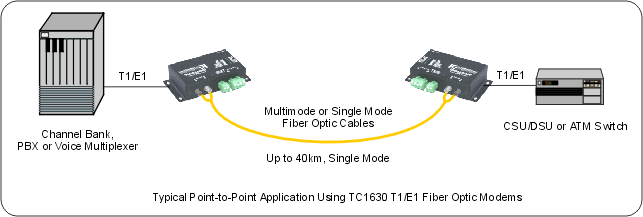

The TC1630 Fiber Optic T1/E1
Modem is typically used to link Channel Banks, PBXs, and M13 multiplexers
to DSX-1 Cross Connects in Video Conferencing and Distance Learning
applications. It is also used to link Customer Premises Equipment to CSU/DSUs
and with metallic medium T1/E1 multiplexers to transmit over fiber optic
cable.
The TC1630 is a T1/E1 Fiber Optic Modem
that offers advanced features such as Jitter Removal, Multiple LEDs and a
replaceable Line Interface Module. Because it is based on modern FPGA (Field
Programmable Gate Array) technology, it offers optimum flexibility,
extremely low current consumptions and high reliability. A rackmount
version is available as
TC1630R.
Transparent to the framing format, the
TC1630 supports AMI, B8ZS and HDB3 line codes and DSX-1 (T1) cross connect
distances from 0 to 655 feet. It includes an internal elastic buffer to
remove jitter from transmit data.
Eight LED indicators help installation and
troubleshooting—one each for POWER, T1/E1, BPV, AIS, ALARM, O-SYNC,
RMT1-0, RMTLB. Eight DIP switches, accessible from the panel, provide
control settings for line code, line length, local loopback or remote
loopback. The intelligent line code setting switch eliminates
confusion—such as when the line code does not match the line length
setting.
The TC1630 is compatible with all popular
types and sizes of optic cable. Fiber optic connectors are ST; FC is
optional. Special four-position and two-position feed-thru detachable
terminals connect the T1/E1 twisted pairs. Input power is 12VDC, 24VDC,
-48VDC or 115/230VAC with an external power cube. An extreme temperature
(-20oC to 70oC), is
available.
Technical Specs
|
Data Rates |
|
T1 |
1.544 Mbps |
|
E1 |
2.048 Mbps |
|
Optical |
|
Transmitter |
ELED, ELED |
|
Receiver |
PIN Diode |
|
Wavelength |
850nm, 1300nm Multimode
1300nm, 1550nm Single Mode |
|
Fiber Optic
Connectors |
ST or FC |
Loss Budget*
(850nm, 1300nm, 1550nm) |
Multimode (62.5/125µm): 20dB
Single Mode (9/125µm): 20dB
(Optional: 25dB and 30dB) |
|
Electrical
|
|
Interface |
T1 or E1 (G.703) |
|
T1 Connector |
(100 Ohm) Terminal Blocks |
|
E1 Connector |
(120 Ohm) Terminal Blocks |
|
E1 Connector |
(75 Ohm) Terminal Blocks and
BNC(Female) Cable |
|
System
|
|
Bit Error Rate |
1 in 1010 or better |
|
|
Visual
Indicators |
|
System Status |
Power, Alarm |
|
T1/E1 Status |
O-Sync, BPV, A1S, T1/E1 OK,
RMT1-0, RMTLB |
|
Diagnostic
Functions |
Local and
Remote Loopback |
|
Power
|
|
Standard |
12VDC @ 250mA |
|
Optional |
24VDC, -48VDC, or 115/230VAC (with
external power cube) |
|
Temperature
|
|
Operating |
-10° to 50°C |
|
Hi-Temp (optional) |
-20° to 70°C |
|
Storage |
-40° to 90°C |
|
Humidity |
95% non-condensing |
|
Physical |
|
Height |
(2.79 cm) 1.1" |
|
Width |
(12.70 cm) 5.0" |
|
Depth |
(6.35 cm) 2.5" |
|
Weight |
(147.0 gm) 5.2 oz. |
|
|
