T1 fiber Modem Extender
Convert T1 Copper to Fiber Optics

Extend T1 or E1 across Fiber Optic Cable
Multi-Mode - Single-Mode and Single Fiber

T1 - E1 Fiber Extender




                       Features

  • Remote unit in-band management

  • Local or Remote Loopbacks on copper or fiber in software mode

  • Loopback switch facilitates local installation

  • Converts the copper ports on T1/E1 devices, such as a PBX or T1/E1 Router, to multimode or single mode fiber

  • Switch selectable RJ-48 connectors for T1 or E1

  • Jitter attenuators optimize Bit Error Rate (BER) performance

  • Network debug procedures make BER testing more convenient

  • Built-in troubleshooting with the addition of a selectable TAOS (Transmit All Ones) switch on the fiber and copper interfaces allows the network engineer to test all T1/E1 equipment on that network segment and ensure the network link

  • Dry relay contacts enable the media converter to be tied into a separate alarm circuit commonly found in a T1/E1 twisted pair environment. Contacts will be activated on loss of power or loss of fiber link.

  • LED provides Alarm Indication Signal (AIS)

  • Can be used with fractional T1/E1 circuits



T1 part numbers

E1 part numbers

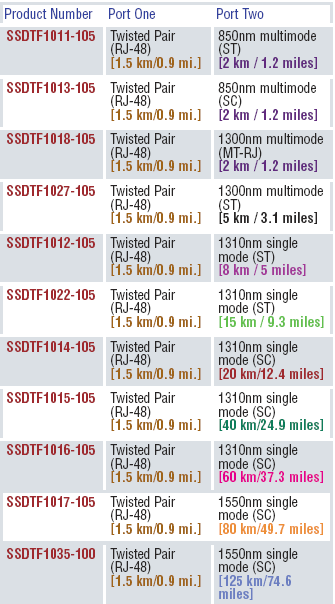

) SSDTF1011-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 850nm multimode (ST) [2 km/1.2 miles]
2) SSDTF1012-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1310nm single mode (ST) [8 km/5 miles]
3) SSDTF1013-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 850nm multimode (SC) [2 km/1.2 miles]
4) SSDTF1014-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1310nm single mode (SC) [20 km/12.4 miles]
5) SSDTF1015-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1310nm single mode (SC) [40 km/24.9 miles]
6) SSDTF1016-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1310nm single mode (SC) [60 km/37.3 miles]
7) SSDTF1017-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1550nm single mode (SC) [80 km/49.7 miles]
8) SSDTF1018-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1300nm multimode (MT-RJ) [2 km/1.2 miles]
9) SSDTF1022-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1310nm single mode (ST) [15 km/9.3 miles]
10) SSDTF1027-105 Twisted Pair (RJ-48) [1.5 km / 0.9 mi.] 1300nm multimode (ST) [5 km/3.1 miles]

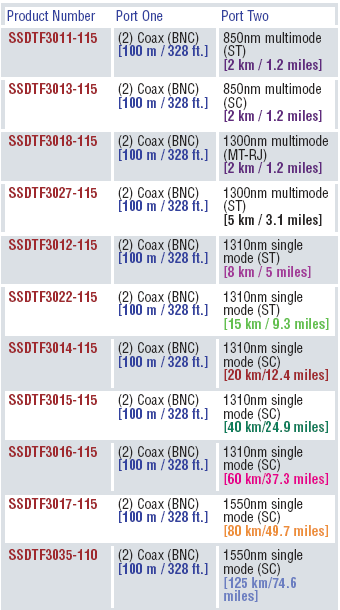

11) SSDTF3011-115 (2) Coax (BNC) [100 m/328 ft.] 850nm multimode (ST) [2 km/1.2 miles]
12) SSDTF3012-115 (2) Coax (BNC) [100 m/328 ft.] 1310nm single mode (ST) [8 km/5 miles]
13) SSDTF3013-115 (2) Coax (BNC) [100 m/328 ft.] 850nm multimode (SC) [2 km/1.2 miles]
14) SSDTF3014-115 (2) Coax (BNC) [100 m/328 ft.] 1310nm single mode (SC) [20 km/12.4 miles]
15) SSDTF3015-115 (2) Coax (BNC) [100 m/328 ft.] 1310nm single mode (SC) [40 km/24.9 miles]
16) SSDTF3016-115 (2) Coax (BNC) [100 m/328 ft.] 1310nm single mode (SC) [60 km/37.3 miles]
17) SSDTF3017-115 (2) Coax (BNC) [100 m/328 ft.] 1550nm single mode (SC) [80 km/49.7 miles]
18) SSDTF3018-115 (2) Coax (BNC) [100 m/328 ft.] 1300nm multimode (MT-RJ) [2 km/1.2 miles]
19) SSDTF3022-115 (2) Coax (BNC) [100 m/328 ft.] 1310nm single mode (ST) [15 km/9.3 miles]
20) SSDTF3027-115 (2) Coax (BNC) [100 m/328 ft.] 1300nm multimode (ST) [5 km/3.1 miles]
