Bell 208 A or B or D,  Comparable to ITU V.27. The first standards to enable higher-speed data transmission (4800 bps) over leased lines for multipoint, multidrop networks. For example, these standards enable us connect IBM mainframes at a central office to terminals in branch office, with fewer modems.

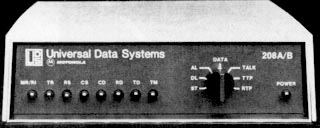

We stock used UDS 208A/B modems

jump to UDS page

jump to PDF file of 208 A/B manual (5.5 megs)

jump to new Racal Vadic / Zypcom 208A/B AC or DC powered modem

Synchronous data transmission, full-duplex operation over 4-wire leased lines, half-duplex operation over 2-wire leased lines; 4800-bps data rate. 208 B: same as 208 A, but over 2-wire dialup lines. Reliable 4,800bps transmission over bad lines with 208A/B and 208 AB/AS (DPSK 8 phase) modem. Multi-Point / Multi-Drop, Dial, 2 or 4 wire lease line.

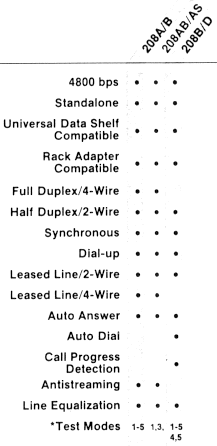

UDS 208 SERIES 4800 bps The UDS 4800 series includes Bell 208 compatible modems which operate 4800 bps half duplex over 2-wire dial-up or leased lines. All models include automatic answer and line equalization, and all are compatible with the Universal Data Shelf". PRODUCT HIGHLIGHTS · 208A/B Operates full duplex over 4-wire leased lines; Includes antistreaming to prevent network tie-ups on multipoint networks · 208AB/AS Transmits asynchronous as well as synchronous data; Also operates full duplex over 4-wire leased lines; Includes antistreaming · 208B/D Includes synchronous automatic dialer which utilizes bisync protocol for DTE dialing communications; Features call progress monitoring for dial tone, busy signal, ring back and answer back tones

TECHNICAL DATA

 GENERAL SPECIFICATIONS

• Data Rate                            4800 bps

• Modulation                          Eight-phase differentially coherent phase shift keying.

• Carrier Frequency              1800 Hz

• Internal Transmit Clock     4800 Hz ± 0.0 1 % Frequency

• External Transmit Clock    4800 Hz ± 0.02 % Frequency

• Transmitter Output Level  0, -2, -4, -6, -8. -9, -10, -12 dBm and externally programmed.

• Line Impedance                  600 ohms, transformer coupled and transient  protected.

• Operation Mode                  2-wire, half-duplex PSTN or private line operation  and 4-wire full-duplex operation.

• Digital Interface                 Conforms to EIA Standards RS-232-C and CCITT V.24.

• Analog Interface                 FCC registered direct connect or leased line circuit.

• Clear to Send Delay           8.5 ms, 50 ms, or 150 ms

• Carrier Detect Range        0 to -34 dBm for private lines or 0 to -44 dBm for PSTN network.

• Line Equalizer                     Equalized for C2 conditioned lines or for 3002 unconditioned lines.

• Function Switch                   Rotary switch for Analog and Digital Loopback, Self Test, Transmit Test Pattern, Receive Test  Pattern, Data and Talk modes.

THE MODEM POWER SUPPLY

The standalone 208A/B modem unit contains a linear type power supply. All the power supply components are contained on the modem board except for the ac step down transformer.

The maximum ac power input to the unit at a line voltage of 110 Vac is 10 watts. The maximum dc power used by the unit is 3.5 watts.

THE MODEM TRANSMITTER

The UDS 208 A/B transmitter is a 4800 bits per second synchronous quadrature modulated transmitter with a Bell 208A/B compatible data scrambler. The transmitter provides the option of a strap selectable fixed pre-equalizer to improve performance on poor quality phone lines.

THE MODEM RECEIVER

The UDS 208A/B receiver is a 4800 bit per second synchronous quadrature demodulator with a Bell compatible 208A/B descrambler. The receiver front-end contains an improved adaptive equalizer that provides for dynamic telephone line equalization.

jump to Racal Vadic page

new units in stock

4800 bps HALF-DUPLEX (AT&T 208) MODEMS

VA4840-PX

RACKMOUNT AT&T 208 A/B compatible, Sync only, Up to 8 cards in a VA1681C chassis

(2 in VA1604). Dial-up or 2/4-wire leased line. Includes: modem, telco cable for dial-up and manual.

Note: 2-/4-wire leased line applications, order optional cable 15044-004.

4850PA

STANDALONE AT&T 208B and ITU-T V.27ter compatible, Sync only. Synchronous SADL

autodialer, front panel control w/LCD, Integral 801 ACU. Dial-up or 2-wire leased line. Includes: modem,

110V power supply, telco cable and manual, 801 ACU applications, order optional cable 91009-094.

• jump to Codex/Motorola Modems

• jump to Multi-Drop Multi-Point modems

• jump to SCADA modems

• jump to VDC power modems

• jump to Industrial grade modems

• jump to Related modem pages

• jump to SCADA CSU/DSU
