Performance Multi Rate,
range - SEVERE ENVIRONMENT
Now available with a power input option of 12, 24 or 48 VDC. The input floats so ground loops are eliminated. The input total power requirement is under 3.5 watts. Power input can be from solar cells or regular battery. Wide voltage swings can be tolerated - temperature range of -30 to +150 degrees Fahrenheit - power input option of 12, 24 or 48 VDC -
The VRL-1 Variable Speed CSU/DSU that allows users to connect to the Digital Network without making obsolete their existing equipment. The VRL-1 performs Bell compatible encoding and decoding, system timing, the proper interface and complete diagnostics in a small reliable package. The VRL-1connects to the digital network at speeds of 56K, 19.2K or 9.6 K. At the 19.2K and 9.6K speeds, the terminal speeds and the line speeds are the same. At 56K, the VRL-1 can operate at 56K terminal speeds or it can provide speed adaptation, allowing connected terminals to run at speeds less than 56K. Speeds of 1.2K through 38.4K are possible in this mode.

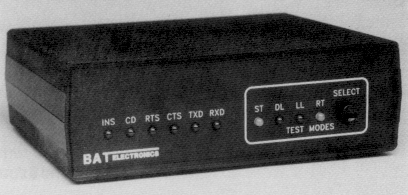

BAT VRL-1 Variable Speed CSU/DSU
jump to User Manual PFD file
The table on the Specifications illustrates the products flexibility.
Using Programmable Logic Technology the VRL-1 provides the interface buffering to convert your terminal speed to 56K line signaling. This means that you can install your high speed digital lines today at 56K without having to upgrade your terminal equipment. In fact, the VRL-1 provides the appropriate interface and conversions. The process is completely transparent to your system. As an added benefit, you can also connect asynchronous devices.
Adaptive Distance Compensation Circuitry Automatically analyzes your link and compensates for distortions. This assures that the VRL-1is tuned to the optimum performance for your particular installation, and eliminates the need for user adjustments.
Interface Flexibility Assured The VRL-1 provides speeds from 56K down to 1.2K. Both V.35 and RS-232 connectors are provided as well as the interface circuitry.
DIAGNOSTICS THAT WORK FOR YOU and with you to provide the tools needed to manage your circuits. All the appropriate telco loopbacks are provided. The BAT VRL-1 can be used to assist you to trouble shoot every part of your link.
The VRL-1 is covered by BAT Electronics' EZ Lifetime Warranty
|Line Rate:||56K, 19.2K, 9.6K auto adaptive|
|Operating Modes:||Dataphone Digital Service (DDS) in point to point or multi-point applications.|
|May also be used as Limited Distance Modem.|
|Standard Features:||Slave and master timing.|
|Adaptable terminal side rates.|
|Both RS-232 and V.35 connectors and interfaces provided.|
|Test Features:||Ten front panel status and test indicators. Front panel push button selects the following test modes: Self Test, Digital Loop, Local Loop, Remote Loop.|
|Responds to Bell defined CSU and DSU loop backs from the Central Office.|
|Internal test pattern generator.|
|AC Power:||117 VAC +/- 10%, 60 Hz, 12w|
|Environment:||0 to 50 C, up to 95% humidity.|
|Connectors:||Both V.35 and RS-232 connectors and interfaces provided.|
|Mode 1:||Telco Line Speed 56K|
|56.0K||V.35 / RS-232||YES||NO|
|38.4K||V.35 / RS-232||YES||YES|
|19.2K||V.35 / RS-232||YES||YES|
|9.6K||V.35 / RS-232||YES||YES|
|4.8K||V.35 / RS-232||YES||YES|
|2.4K||V.35 / RS-232||YES||YES|
|1.2K||V.35 / RS-232||YES||YES|
|MODE 2:||Telco Line Speed 19.2K|
|Terminal Config.:||19.2K||V.35 / RS-232||YES||YES|
|MODE 3||Telco Line Speed 9.6K|
|Terminal Config.:||9.6K||V.35 / RS-232||YES||YES|
|Data Format:||Synchronous or Asynchronous (7/8 data bits one stop bit)|
|Interface:||Standard registered RJ-48s jack on the rear panel.|
|RX Levels:||Supports 40 db attenuation (exceeds requirements by 6 db).|
|Equalization:||Automatic, no user adjustment needed.|
