Ethernet Broadband Wireless

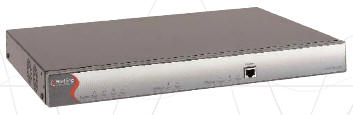

AN-50e Broadband Wireless System


  • Up to 72 Mbps raw 49 Mbps net Ethernet throughput

  • Lowest end-to-end latency in its class

  • Dynamic time division duplex (TDD) transmission

  • Bi-directional dynamic adaptive modulation

  • PMP 802.1Q VLAN Support

  • Redundant AC/DC Power Supplies

  • DFS and ATPC


The award-winning AN-50e is the world's first high-performance, low-cost multi-service backhaul and specialized access solution for carriers and service providers looking to expand their networks and provide high quality access to customers.

Operating in the 5.4 GHz and 5.8 GHz unlicensed bands, Redline's groundbreaking OFDM technology delivers an industry-leading 72 Mbps and supports long-range operations of over 80 km (50 mi) in clear line of sight (LOS) conditions. For both point-to-point (PTP) and point-to-multipoint (PMP) applications, the carrier-grade AN-50e system employs advanced technologies to address inter-cell interference, non LOS deployments, and over-the-water applications.

The AN-50e provides cost-effective site-to-site connectivity for demanding applications including transparent LAN, VoIP, and high-quality video streaming. Enterprise customers, municipalities, schools, and hospitals can add new multi-service access where costs for traditional wired services would be significantly prohibitive. The long- range capability provides wireless connectivity between widely dispersed locations using a minimum number of repeater stations.

The AN-50e is fully supported by RedAccess, Redline's full-featured carrier-class Network Management System (NMS). Use RedAccess to manage BFW products and achieve maximum performance from your wireless system. High throughput, long range, and low cost installation make the AN-50e your compelling choice for expanding your wireless networking services. Leading the WiMAX Revolution Industry Leading Broadband Wireless Solutions

These products deliver an unmatched combination of range, capacity, security, and reliability, even in
very challenging environments. Best-in-class data rates and spectral efficiencies conserve valuable
spectrum and reduce the costs of providing high-performance access. This technology advantage
includes several patents necessary for building the OFDM-based wireless broadband systems that deliver
our characteristically robust, extreme-distance/high-bandwidth performance. With built-in security
encryption, and many other advantages, Redline products provide the reliability you need to grow your
systems into the future.

System Capability: LOS, optical-LOS, and non-LOS (OFDM)
RF Band: 5.470-5.850 GHz, TDD
Channel Size: 20 MHz (5 MHz steps)
Data Rate: Up to 49 Mbps average Ethernet rate
Max TX Power: 20 dBm (region specific)
Rx Sensitivity: -86 dBm @ 6 Mbps (BER of 1x10e-9)
IF Cable: Up to 228 m (750 ft)
Network Attributes: Transparent bridge, automatic link
distance ranging1, 802.3x1, 802.1p1,
DHCP pass-through, 802.1Q VLAN2,
Modulation: BPSK to 64 QAM (bidirectional dynamic adaptive)1

Dynamic Channel Control: DFS, ATPC
MAC: PTP, PMP, concatenation/
fragmentation2, ARQ
Range: Beyond 80 km (50 mi) LOS
@ 48 dBm EIRP
Network Connection: 10/100 Ethernet (RJ-45)
System Configuration: HTTP (Web) interface, SNMP,
CLI, console (RS-232)
Network Management: SNMP: standard/proprietary MIBs
Power: 110-240 VAC 50/60 Hz,
18-72 VDC, dual
Compliance: EN 60950, EN 301 893, EN 301 390,
EN 301 489-1 & 17, FCC part 15
1Point-to-Point Mode only, 2Point-to-Multipoint mode only
