Canoga Perkins 9119
Fast Ethernet Media Converters

Canoga Perkins  9119 Fast Ethernet Media Converters provide network designers with a new set of LAN Extension tools that allow design flexibility regardless of interface media.  The Canoga Perkins 9119is a cost-effective, compact, rack-mountable solution that transforms signals from 100BASE-TX to 100BASE-FX and is transparent to half and full-duplex operation.  The Canoga Perkins 9119 Media Converter also supports connectivity of up to 3km over multimode fiber in half-duplex mode, and up to 120km over single mode fiber optic cable in full-duplex mode. Canoga Perkins Fast Ethernet products comply with the latest industry standards ensuring connectivity to other compliant data transmission devices.

Features for the Canoga Perkins 9119


  • Transparent Half and Full-duplex Fast Ethernet Operation

  • Multimode and Single Mode Fiber Optic Media Support

  • Single Fiber Bidirectional Interface

  • Full-duplex Connectivity up to 120km

  • Link Loss Forwarding and Remote Fault Alarms

  • Dry Contact Relays for Power, UTP, and Fiber Interface Alarms

  • Standalone Unit or Rack-mountable in 9101 Chassis

  • SC or ST Connectors

  • NEBS Level 3 Tested and Certified

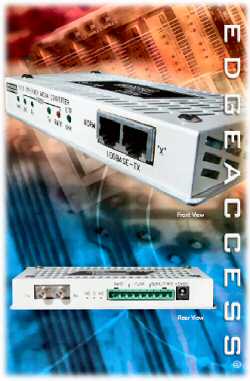

  Canoga Perkins 9119
Fast Ethernet 100BASE-TX to 100BASE-FX
 Fiber Media Converter

  • Modules supported in the Model 9101 LAN Chassis:

  • Model 8829 Media Converters

  • Model Canoga Perkins 9119 Fast Ethernet Media Converters

  • Model 9120 Gigabit Ethernet Media Converters

  • Model 9125 1 Gigabit Fibre Channel Xtender

  • Model WA-2 Passive WDM Modules


EdgeAccess® 9000 Family - The optional 9101 LAN Chassis, 8829 10Mbps, Canoga Perkins 9119 100Mbps, and  Canoga Perkins 9120 1000Mbps media converters, along with the 9135, 9135G, and 9140 Switches form a complete set of 10/100/1000Mbps Copper or Fiber LAN Extension building blocks for simple, cost-effective, and manageable solutions.  The 9101 Chassis is available with 120/240VAC or -48VDC power supplies for use with powered media converters. It is designed to accommodate a mix of up to twelve rack-mounted modules.


DISTANCE GUIDE (km)

Canoga Perkins Canoga Perkins 9119
Canoga Perkins 9119 Fast Ethernet Media Converter
For the 9101 Platform
MODEL DESCRIPTION
Canoga Perkins 9119-XXX-X-X Fast Ethernet Media Converter
FIBER OPTICS OPTIONS
MULTIMODE
Canoga Perkins  9119-411-1-0 100BASE-FX 1310nm MM LED w/ ST
11db w/62.5/125 Fiber
No AC Adapter-Use in 9101 powered LAN chassis

 Canoga Perkins  9119-411-1-1 100BASE-FX 1310nm MM LED w/ ST
11db w/62.5/125 Fiber
120/240VAC AC Adapter

Canoga Perkins  9119-412-1-0 100BASE-FX 1310nm MM LED w/Duplex SC
11db w/62.5/125 Fiber
  No AC Adapter-Use in 9101 powered LAN chassis

Canoga Perkins 9119-412-1-1 100BASE-FX 1310nm MM LED w/Duplex SC
11db w/62.5/125 Fiber
120/240VAC AC Adapter

SINGLE MODE
Canoga Perkins 9119-611-1-0 100BASE-FX 1310nm SM  Laser w/ ST
10db w/8-10/125 Fiber
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-611-1-1 100BASE-FX 1310nm SM  Laser w/ ST
10db w/8-10/125 Fiber
120/240VAC AC Adapter

Canoga Perkins 9119-612-1-0 100BASE-FX 1310nm SM  Laser w/Duplex SC
10db w/8-10/125 Fiber
   No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-612-1-1 100BASE-FX 1310nm SM  Laser w/Duplex SC
10db w/8-10/125 Fiber
120/240VAC AC Adapter

Canoga Perkins 9119-617-1-0 100BASE-FX  1310nm SM  Laser w/ ST
26db w/8-10/125 Fiber
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-617-1-1 100BASE-FX  1310nm SM  Laser w/ ST
26db w/8-10/125 Fiber
120/240VAC AC Adapter

Canoga Perkins 9119 Fast Ethernet Media Converter
For the 9101 Platform
MODEL DESCRIPTION
Canoga Perkins 9119-XXX-X-X Fast Ethernet Media Converter
  FIBER OPTIC OPTIONS
SINGLE MODE

Canoga Perkins 9119-618-1-0 100BASE-FX  1310nm SM  Laser w/Duplex SC
26db w/8-10/125 Fiber
   No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-618-1-1 100BASE-FX  1310nm SM  Laser w/Duplex SC
26db w/8-10/125 Fiber
120/240VAC AC Adapter

Canoga Perkins 9119-717-1-0 100BASE-FX  1550nm SM  Laser w/ ST
  26db w/8-10/125 Fiber
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-717-1-1 100BASE-FX  1550nm SM  Laser w/ ST
26db w/8-10/125 Fiber
120/240VAC AC Adapter

Canoga Perkins 9119-718-1-0 100BASE-FX  1550nm SM  Laser w/Duplex SC
26db w/8-10/125 Fiber
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-718-1-1 100BASE-FX  1550nm SM  Laser w/Duplex SC
26db w/8-10/125 Fiber
120/240VAC AC Adapter
MODEL DESCRIPTION
Canoga Perkins 9119-XXX-X-X UTP to Single Fiber Fast Ethernet Media Converter, RJ45
Must Use in Pairs (1310/1550)
FIBER OPTICS OPTIONS
Canoga Perkins 9119-620-0-0 Single Fiber / SC / 100Mbps / 1310nm /SM / 20km
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-720-0-0 Single Fiber / SC / 100Mbps / 1550nm / SM / 20km
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-640-0-0 Single Fiber / SC / 100Mbps / 1310nm / SM / 40km
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-740-0-0 Single Fiber / SC / 100Mbps / 1550nm / SM / 40km
 No AC Adapter -Use in 9101 powered LAN chassis

Canoga Perkins 9119-620-0-1 Single Fiber / SC / 100Mbps / 1310nm / SM / 20km
120/240VAC AC Adapter

Canoga Perkins 9119-720-0-1 Single Fiber / SC / 100Mbps / 1550nm / SM / 20km
120/240VAC AC Adapter

Canoga Perkins 9119-640-0-1 Single Fiber / SC / 100Mbps / 1310nm / SM / 40km
120/240VAC AC Adapter

Canoga Perkins 9119-740-0-1 Single Fiber / SC / 100Mbps / 1550nm / SM / 40km
120/240VAC AC Adapter
