MULTITECH

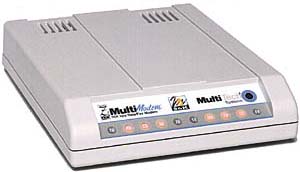

MuItiModem ZDX modem

The MuItiModemZDX is a family of compact desktop modems that offers the ideal feature set, including 56K for super fast Internet access. This modem is perfect for the mainstream PC user market and vertical niche markets, such as UNIX', medical and retail point-of-sale applications.


Features

  • Downloads files at 56K speeds and uploads files at 33.6K bps on 56K models

  • Faxes at rates up to 14.4K bps

  • Handles voice mail and full-duplex speaker phone with voice models

  • Supports asynchronous equipment over dial-up lines

  • Stores phone numbers for automatic dialing

  • Answers calls automatically

  • Detects rate automatically

  • Supports custom installations with features like I I -bit support, Multi-Tech command set, and remote configuration (depending on model)

  • Ships with data communication, fax, voice, and other value-added software

  • Features a full-service, ten-year warranty


ZDX Family Highlights


High Speed. If you need high speed performance for PC users and the ease of Plug and Play installation, the MuItiModemZDX 56K model fits the bill, Take full advantage of the wealth of on-line information available by visiting Internet sites that feature multimedia, video clips, and live audio broadcasts at significantly faster speeds than a 28.8K modem.

Integrated Voice, Data Communications, and Fax Software. The MuItiModemZDX includes powerful data and fax communications software with an easy-to- graphical interface for Windows' 3.lx, Windows 95, Windows 98, and Windows NT'. And when used with the MultiModemZDX voice models, you can take advantage of voice messaging and full-duplex, hands-free speakerphone features. Also included are a number of free value-added applications, such as a web browser, Internet telephony, and on-line services.

Advanced Features on 33.6K Models. The MuItiModemZDX 33.6K models are best suited for applications requiring advanced modem control. Remote configuration lets IS administrators set up and control modems from any location. The Multi-Tech full-featured, enhanced AT command set lets you configure modems for unique applications. And, the 11-bit feature means the 33.6K models can communicate with other 11-bit devices, such as security systems.

Consolidate Space and Power Requirements. For applications that require rack-mounting, the ZDX family is ideal. All models have a rack-mountable chassis that consolidates space and power requirements for up to twelve modems when using the Multi-Tech ZDXRack.

Comprehensive Service and Support. The Multi-Tech commitment to service means we provide a ten-year product warranty and lifetime service that includes free technical support and 24-hour web site, FTP and BBS support.

Client Solutions. Multi-Tech carries a complete line of internal, external, 56K analog, and ISDN modems to meet the needs of home users, SOHOs, telecommuters, and businesses.

Corporate Site Solutions. Multi-Tech offers remote access server solutions that take the worry out of establishing and maintaining remote access. For midsize to large companies and ISPs, the CommPlete communications server supports up to 192 dial-up users with T1/E1 and PRI ISDN. For small companies and branch offices, the plug and play RAS-Finder has three built-in 56K modems to support three dial-up users. And, for small to large companies, the cost-effective Intelligent Serial Interface card family supports up to eight dial-up users when connected to Multi-Tich modems, while populating only one ISA or PCI slot on a server. Visit the Multi-Tech web site at www.multitech.com for more information.


Model

Description

Region
MT5600ZDX 56K Data/Fax Modem Global
MT5600ZDXV 56K Voice/Data/Fax Modem Global
MT3334ZDX 33.6K Data/Fax Modem US/Can
MT3334ZDXV 33.6K Voice/Data/Fax Modem Global
MT2834ZDXb 33.6K Data/Fax Modem US/Can
MT2834ZDXV 33.6K Voice/Data/Fax Modem US/Can

MT5600ZDX
This high speed data/fax modem for
the mainstream PC-user market features:
V90 and K56flex for 56K bps downloading speeds

  • Class I faxing
  • U.S. Caller ID reporting
  • Plug and Play operation
  • V80 video conferencing support
  • Flash memory
  • Storage for four phone numbers

MT3334ZDX
This affordable data/fax modem for
the mainstream PC-user market features:

  • Enhanced V34 for 33.6K bps data transfer speeds
  • Class I and Class 2 faxing
  • U.S. Caller ID reporting
  • Plug and Play operation
  • V80 video conferencing support
  • Remote configuration
  • 11 -bit support
  • Storage for four phone numbers

MT2834ZDXb
This flexible data/fax modem for
vertical niches requiring unique modern
configurations, such as UNIX, medical and retail
POS applications, features:

  • Enhanced V34 for 316K bps data transfer speeds
  • Class 2 faxing
  • V80 video conferencing support
  • Remote configuration
  • DTMF tone detection
  • 11 -bit support
  • Standard AT and Multi-Tech commands accepted
  • Storage for two phone numbers

MT5600ZDXV
This high speed data/fax/voice modem for the mainstream PC-user market features:

  • V90 and K56flex Am 56K bps downloading speeds
  • Voice mail and full-duplex speaker phone support
  • Class I faxing
  • U.S. Caller ID reporting
  • DTMF tone detection
  • Plug and Play operation
  • Flash memory
  • Storage for four phone numbers

MT3334ZDXV
This affordable data/fax/voice modem
for the mainstream PC-user market features:

  •  Enhanced V34 Am 331K bps data transfer speeds
  • Voice mail and full-duplex speaker phone support
  • Class I and Class 2 faxing
  • U.S. Caller ID reporting
  • Plug and Play operation
  • Remote configuration
  • DTMF tone detection
  • 11 -bit support
  • Storage for four phone numbers

MT2834ZDXV
This flexible data/fax/voice modem for
vertical niches requiring unique modem configurations,
such as UNIX, medical and retail POS applications,
features:

  • Enhanced V34 for 33.6K bps data transfer speeds
  • Voice mail and full-duplex speaker phone support
  • Class 2 faxing
  • U.S. Caller ID reporting
  • Remote configuration
  • DTMF tone detection
  • 11 -bit support
  • Standard AT and Multi-Tech commands accepted
  • Storage for two phone numbers


Specifications


Rates
Dan: 316K bps 56K downloading speeds from digital
56K servers with 56K models
Fax: 14.4 K bps
Standards
Data: Enhanced V.34; V.90 & K56flex on 56K models
Error Correction: V.42
Data Compression: MNP Class 5; V.42bis
Fax: V.17, Group 3
Connectors
One DB-25S (ETA RS-232C/D or V.24)
Two RJ- I I for phone & line (not included on
MT2834ZDXb)
One miniature speaker & one microphone jack (ZDXV models)

Operating System Support
Windows 3.Ix, Windows 95, Windows 98, Windows NT
Physical Description
4.3" w x 1.0" h x 5.6" d; 8 oz
10.8 cm x 2.5 cm x 14.2 cm; 224 g
Operating Environment
Operating Temperature: 32-120'F (0-50'C)
Humidity Range: 20-90% noncondensing

Approvals
FCC Parts 15B & 68; UL 1950; CE Mark on international models

jump to a more complete matrix  of  Specifications PDF file
