BlueTree GSM-GPRS
Cell Cellular Modem

The BT-2000 GSM GPRS cell modem is designed to military (MIL) and automotive (SAE) specifications for ruggedness in harsh environments, including temperature, humidity, vibration and shock. Integrated mounting feet make it suitable for mounting in a vehicle or other harsh environments

  • BT-2000 GPRS Standard GSM Cellular Modem

  • RUGGED - RELIABLE - HIGH PERFORMANCE


  • Rugged Design

  • Dual-Band GPRS 850Mhz and 1,900Mhz

  • High-Speed Data

  • Maximum Power and Coverage

  • Standard Communications Protocols

  • Modem Management Software - BlueVue

  • Proven Reliable RF Module

The BT-2010 modem is designed to military (MIL) and automotive (SAE) specifications for ruggedness in harsh environments, including temperature, humidity, vibration and shock. Integrated mounting feet make it suitable for mounting in a vehicle or other harsh environments

The BT-20x0 modem supports both North American GPRS frequencies, including 850 MHz and 1,900 Mhz.

The BT-2010 supports GPRS Class 8, meaning it provides the highest  possible throughput available on GPRS networks (up to 56 kbps).

The BT-2010 modem uses a full power transceiver and high-efficiency screw-on antenna connector. Users benefit from optimum signal strength and coverage.

The BT-2010 modem supports: GPRS packet data connections CSD circuit-switched (dial-up) data connections Serial RS-232 (or optional USB adapter)

Communications protocols: AT commands and PPP

BlueVue modem management software provides a Windows™-based graphical interface that allows you to: Program the modem Monitor status of connections Initiate connections/data sessions View diagnostic info, such as signal strength, and network status GPS - display and redirection

The BT-2010 uses the RIM1902G GPRS RF module. The result is the ultimate in reliability from the industry leaders in GPRS technology.

Customers benefit from the support of our Value-Added Resellers and from the knowledge of BlueTree's development team. Our 1-year warranty is included, plus optional 3-year extended warranty for total protection.

BlueTree focuses exclusively on wireless modems for mobile and industrial applications. The BT-series modem provides all the ruggedness you need without additional features you don't.

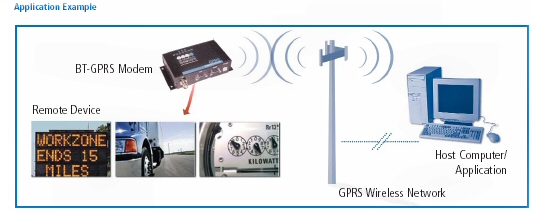

APPLICATION EXAMPLES





see Cell Modem manual

BT-2000 GPRS Standard GSM Cellular Modem with GPS PDF sheet
