Cellular Ethernet / Internet Gateway

Cell - Cellular 2.5G / 3G Ethernet / Internet Gateway

Highly Integrated Wi-Fi and 2.5G/3G Mobile and Portable Hot Spot Solution

  • Pure Wireless & Mobile

  • Simple to install and maintain

  • Top security and reliability

  • Low total cost for service provider and enterprise

  • Provide Wireless Internet Access anywhere at anytime

Cell - Cellular Ethernet / Internet Gateway




The Cell - Cellular 2.5G / 3G Ethernet / Internet Gateway

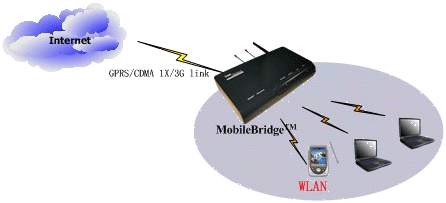

Top Global MB™ is a patented, mobile/portable wireless communication gateway.  MB-8000 is the industrial first and the most integrated WLAN and WWAN solution for Enterprise, Mobile Hot Spots, and WISPs.  The product is secure, simple to use, and easily scalable to enable new applications of Wi-Fi.  Top Global mobile hot Spot solution based on MB-8000 combines the best of Wi-Fi technology and 2.5G/3G mobile communications technology. It leverages the existing and widely available 2.5G/3G infrastructures with the flexible, low cost and simple to use WLAN technology for enterprise applications and for rapid deployment of hot spots anywhere around the world. The solution comes with a complete suite of software package including security, network management, and AAA (Authentication, Authorization, and Accounting) features.

Top Security Design
MB-8000 utilizes the TKIP scheme, offers the secure “Always on, anywhere, anytime” wireless connectivity to subscribers. It also supports VPN and gives the Enterprise user maximum protection.

Flexible Authentication and Accounting

No client software is mandatory. 802.1x is available to provide high security for your wireless data traffic. RADIUS Client in MB-8000 supports various accounting methods. Operators and WISPs could choose their preferred business model and accounting policies.

Network Management

Users can manage their MB-8000 via Internet by web page.

Ideal for Mobile and Remote Office

Mobile professionals can bring own broadband wireless network while visiting clients or work in remote location.

Features of MB ™ - The Most Convenient and Rapid Installation
Available instantaneously with only electric power required and no wired backhaul necessary. Total investment and time for the wireless network/Hot Spot construction could be reduced dramatically. Sharing Wifi Router accepts approved wireless cellular data cards via external PCMCIA slot.

Serial interface:
    8-Pin Female MiniDin RS232 connector

Dimensions & Weight:
    2.7 cm X 13 cm X 25.4cm
    1.1 in X 5.1in X 10 in
    1.97 lbs

    Boot Loader and Power On Self Tests (POST)
    CLI compatible with generic Telnet and Terminal clients.
    Serial port Interface is compatible with most ASCII terminals

4 LEDs:
    Wireless WAN Activity
    Wireless LAN Activity
    Wired Ethernet

Environment Specifications:
    Operating 0° to 50°C (32° to 122°F) @ 20 to 90% relative humidity
    Transport -40° to 60°C (-40° to 140°F) @ 15 to 95% relative humidity (no condensation allowed)
    Storage -10° to 60°C (14° to 140°F) @ 10 to 90% relative humidity (no condensation allowed)
    Ethernet interface One 10/100 Base-T, RJ-45 female socket

Wireless interface: IEEE 802.11b (MiniPCI slots for radio NIC Card)



UMTS: Novatel 530, 520


EDGE: Sierra AC775

Receiver sensitivity: 1 Mbps BPSK,

EVDO: Sierra AC575, AC580

8% PER -89 dBm

CDMA 1x: Sierra AC555


GPRS: Sierra AC750, Option EE828

WARRANTY: 1 year


• MAC access control

• IP Port Forwarding

• DNS Relay

• NAPT between LAN and WWAN

• Bridge between LAN and WLAN

• DHCP Server

MTBF (Mean Time Between Failures): 244,048Hrs
100/240 VAC high quality and worldwide safety approval


• SNMP V1/V2


• Syslog

• HTTP server for web-based management

• CLI & Telnet Server for command line management

• Scan tool for upgrade management

• Standard and Extended MIBs




• Wireless user isolation

• 64-bit WEP & 128-bit RC4 encryption

• 802.1x, TKIP support

• Access Control Table and RADIUS Authentication/Accounting

• HTTPS for Web management

• VPN passthrough for PPTP and UDP encapsulated IPSec

• Web Portal

• Password protected for web access

• Closed system
