The 202 - 202T modem operates at 0 to1200 bps asynchronous, with FSK modulation.
It uses the latest DSP modem circuitry to insure excellent performance.

Full duplex 202 202T modem to 1200 bps Asynchronous RS-232 4-wire, full duplex line application 900 Hz soft carrier turn off Anti-streaming Standalone or rack mount High stability transmit and receive frequency Ruggedized for full temperature range Quiet multi-layer board Fully compatible with other 202T's DIP settings

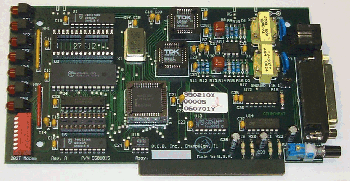

The 202T modem operates at 0 to1200 bps asynchronous, with FSK modulation. It uses the latest DSP modem circuitry to insure excellent performance and future availability. It has 900 hz soft carrier turn off for multi-drop and an anti-streaming option. 7.25" half card size, standalone and custom OEM board configurations are available. The pc card version uses the internal PC ISA bus only for power from the pc bus. The PC card fits into a 20 slot rack mount chassis that is only 7" high. The phone line connector is an RJ-11 for 4-wire leased line operation. Transmit is on positions 2 and 3, receive 1 and 4 of the 4 position RJ-11connector. The modem has a push/push switch for local digital loop on or off. The loop back switch is located on the rear of the unit, next to the DB-25 terminal connector.

• Analog full duplex, 4-wire, 600 ohm balanced, Frequency Shift Keying:
• Mark-1200 hertz, Space-2200 hertz, Speed 0 to 1200 bps
• 900 Hertz Soft Carrier Turn Off for multidrop operation
• Transmit level control 0 dBm or -16 dBm
• Will drive up to 30 Km of cable depending upon wire gauge
• Switched carrier or constant carrier operation (RTS forced on or terminal controlled)

• RS-232, DB-25S
• Signals are Tx, Rx, RTS, CTS, DSR, DCD
• RTS/CTS delay is 12 or 20 ms in switched carrier mode or RTS can be forced on
• Rx data is clamped to mark when no receive carrier detect is present.
• 202T Modem - FSK Analog Modem, Async

Controls and Indicators

• Power, Tx Data, Rx Data, RTS, CTS, DCD, Test
• Digital loop via rear panel switch and front DIP switch
• Controlled carrier (with RTS/CTS delay) or constant carrier with RTS/CTS on
• Anit-streaming option (8 seconds), Loop back or normal operation
• Transmit level - 0 db or -16db, 900 Hz Soft Carrier turn off On or Off

Physical and Electrical

• -35C to +70C operating temperature range, PC ISA bus format or standalone version,
• PC bus for power and ground only, standalone unit uses 110V wall mount supply
• Half size PC card, 7.25"D x 4.25"H
• Stand alone: 5.5" W x 7.375"D x 1.5" high, 110VAC wall mount supply (9VDC, 500 ma)
• Other DC power supply voltages, 12, 24, -48, 125 VDC, available on special order
• A 1.5" x 19" fixture available to rack mount up to 3 standalones in a single 1U height
• 20 slot rack chassis on slide guides is 19"W x 16"D x 7"H, 110VAC 250 W power supply

see PDF file of manual

Standalone rack fixture - 18.95" x 1.5" high	Single Unit Rack Mounts
