Dual Band RS-232 Digital CDMA cell cellular modem

CCL-201 cellular modem  with dual band 820-850Mhz and 1.9Ghz Band - digital cell modem


Overview

CCL 201 wireless cellular modem used for data communications solution for use over digital (CDMA) network across North and South America. It is very easy to use - a DIP switch enables full configuration without a tedious set up process using a PC!

The hardware and software interface for CCL 201 is similar to a standard landline modem. This allows compatibility with popular software packages such as Procomm, HyperTerminal, Bitcom, etc.

Features

Data throughput- up to 57.6 Kbps with V.42bis compression

• Dual Band CDMA (800 and 1900 MHz) digital cellular

• DIP Switch Configurable (PC not required)

• Modem "AT" Command Set Compatible

• Galvanically isolated power supply (Eliminates ground loops)

• Serial Interface: DB9 RS232 port



uses dip switch settings to set up modem

Specifications
Data Rate Up to 14400 bps
Data Compression MNP 2-4, V42.bis,
Error Correction MNP 5, V42
Data Rate Upto 14 400 bps
DTE Rate Upto 115200 bps
  (DIP Switch selectable)
Transmit Power 600 mW
Interface RS 232 Asynchronous
Signals Supported TXD, RXD, CD, DSR, RTS,
  CTS, RI

Power Supply 9-18 VDC @ 500mA
  (24, 48 VDC options
  available)
Current Consumption 100 mA @ 12 V (standby,
  Receive ON)
  180 mA (maximum)
Mechanical 6.5"L x 3.75"W x 1.25"H
Operating -10°C to +60°C
Environment 40°C to +70°C
Humidity 0- 90% RH non-condensing

Ordering Information
CCL 201 - 12V (9-18 VDC)
CCL 201 - 24V (18-36 VDC)
CCL 201 - 48V (36-72 VDC)

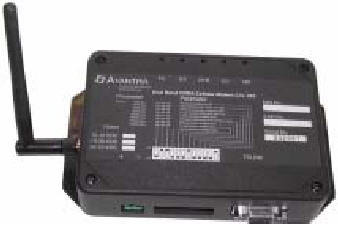

unit comes with antenna (shown above), data cable, manual on a disk, and 115VAC power wall cube

jump to user manual PDF




jump to Cell modem terms Glossary

    Jump to Cellular Digital coverage map

   Jump to CDPD coverage map

  Jump to AMPS and Digital  coverage map

   Jump to PDF file on 3G

   Jump to 2G-3G Cellular Wireless

data transport terminology

  Jump to

  Jump to What is CDMA

   Jump to CDMA Wireless Academy

  Jump to What is MNP-10EC

  Jump to What is Throughput X-Cellerator TX-Cel






jump to cellular antenna installation guidelines
