Fiber - Ethernet - RS232
Phone Line Extenders

Extend phone lines with fiber
Multi-Mode and Single mode and single fiber
Ethernet and RS232

The  "Quick-Talk" Phone Extender can turn a fiber optic network or Ethernet  or RS-232 circuit into a voice network simply by plugging a telephone set into an RJ-11 connector.  It is compatible with most PBXs or Key Systems. Quick-Talk provides 2-wire FXS (foreign exchange subscriber) on the telephone side with ring down capability and FXO (foreign exchange office) on the PBX side.  When both sides are set to FXS, a "Hot Link" can be established; when one side lifts up the handset, the other side starts ringing. The TC1901 will also handle 2 and 4 wire analog on all the time modem-fax lines. Units also have dry contact relay closure-detector available.



  "Quick-Talk" (Model TC1900 RS232 and TC1901 fiber)       Related Products TC8000, TC8116, TC8800
  • Extend Telephone Link with Fiber or Async RS-232
  • Async Baud Rate From 9.6Kbps
  • 16 LEDs/4 DIP Switches for Diagnostics
  • PBX and Key System Compatible, FXO/FXS Selectable
    TC1901 fiber has 2 and 4 wire analog-lease lines for modem and fax
  • Voice Bandwidth from 300Hz to 3.4Khz for Toll Quality Sound
  • Built-In Dry Contact Relay for External Alarm and Ringer Connection
  • 12VDC, Optional 24VDC, -48VDC or 115/230VAC with Power Adapter
  • Built-In Power Redundancy
  • Rackmount or Standalone
  • Dimensions: Chassis Style SD10

jump to manual

optional one fiber version available
TC1903

optional Dry contact relay closure-detector
TC1905

IP based Ethernet TC1910 unit



Applications

The TC1900 is often used to extend telephone service in campus networks, power plants, substations, etc or use an existing service data channel to set up a telephone link.  It is also used to set up "Hot Links" telephone service via existing RS-232 links on satellite, fiber optic or microwave networks.  Other applications include using the inherent benefits of fiber optics to reduce noise/EMI or maximize security/isolation.

  The TC1901 will also handle 2 and 4 wire analog (on all the time) modem-fax lines.


Description

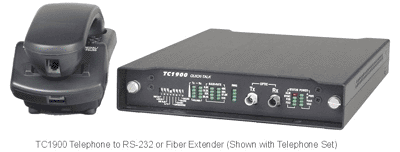

The TC1900 "Quick-Talk" Phone Extender can turn a fiber optic network or RS-232 circuit into a voice network simply by plugging a telephone set into an RJ-11 connector.  It is compatible with most PBXs or Key Systems.

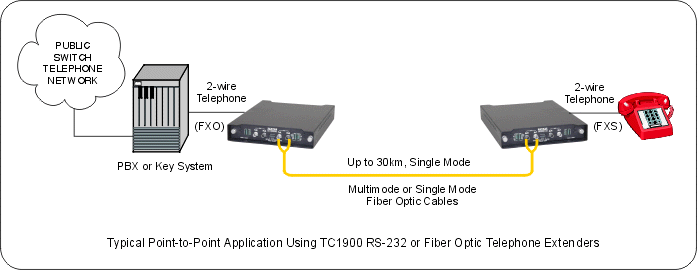

Quick-Talk is typically used to extend dial-up phone service to remote sites over a fiber optic or RS-232 circuit.  For example, a user can extend a secured phone link to a remote site via an existing satellite or microwave RS-232 data connection.  With the optional fiber optic front end, Quick-Talk can extend a phone line up to 20 miles away.

Quick-Talk provides 2-wire FXS (foreign exchange subscriber) on the telephone side with ring down capability and FXO (foreign exchange office) on the PBX side.  When both sides are set to FXS, a "Hot Link" can be established; when one side lifts up the handset, the other side starts ringing.

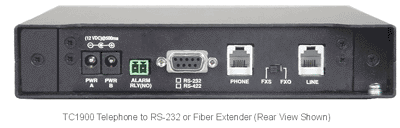

Available in standalone (TC1900S) or rack mount (TC1900R) versions, it is compatible with all popular types and sizes of fiber optic cable. Diagnostic aids include 16 diagnostic LEDs for indicating power, ring, FXS, FXO, and audio activity. The TC1900R PC Card version fits into TCRM191 and TCRM195 rack mount card cages.

Quick-Talk is available with RS-232 or optical interfaces.  The optical interface is available in multimode (850/1300nm) or single mode (1300/1550nm) versions, with ST or FC connectors. A local dry contact relay is also provided for external alarm and ringer connection.

Power is 12VDC or 115/230VAC with an external power cube. Power options include 24VDC
or  -48VDC.  Power redundancy is standard.  Electrical connectors are RJ-11 Female for the telephone set, DB9 female for RS-232.

Specifications

Audio Bandwidth
   .................................300Hz to 3.4 Khz
Optical (Optional)

   Transmitter..........................LED/ELED
   Receiver...............................PIN Diode
   Wavelength
   .....................850nm/1300nm Multimode
   ................1300nm/1550nm Single Mode
   Fiber Optic Connectors
   .................................. ST, FC Optional
   Loss Budget* - 850/1300/1550nm
   Multimode @ 62.5/125µm..............15dB
   Single Mode @ 9/125µm...............15dB
Electrical

Phone Connector.............RJ11 Female
   RS-232............................ DB9 Female
   Baud Rate.........9.6k, 19.2k, 32k, 38.4k
   .............................48k, 56k, 57.6k, 64k

    * Contact factory for higher requirements

Visual Indicators

Tx and Rx volume, Local off-hook,
   Remote off-hook, FXO, FXS, Ring,
   Optic Rx, Electric  Rx, VccA, VccB,
   PWR A, PWR B
Alarm

Dry Contact ...................Normal OPEN
Power
   Standard....................12VDC @ 500mA
   Optional..................24VDC, -48VDC, or
   ................115/230VAC with power cube
Temperature
   Operating..........................-10° to 50°C
   Storage.............................-40° to 90°C
   Humidity...............95% non-condensing
Physical
   Height.............................(3.53 cm) 1.4"
   Width............................(18.10 cm) 7.1"
   Depth............................(24.80 cm) 9.8"

Weight.......................(835 gm) 1.85 lbs.
