Gigabit Multi-Mode to
Single-Mode converter |
convert Gigabit SX MM to Gigabit LX SM
using the SFMA700S85 and the SFSA7010AL31
in a FIB1A-1000DS chassis
view
Copper to Fiber MM and SM

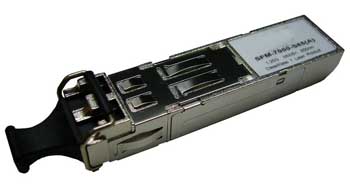

SFMA7000S85
1000Base-SX, Multi-Mode, 550m, 850nm SFP
transceiver module
and
SFSA7010L31
1000Base-LX, Single-Mode, 10Km, 1,300nm SFP
transceiver module
SFP (miniGBIC) optical modules
are all equipped with the industry standard LC
optical connector. The capacity of
SFMA7000S85 module is 1.25Gbps (Gigabit
rate). The transceiver extended range allows
operation on either 50/125um or 62.5/125um
multi-mode fiber for up to 550m distance.(Note:
for 62.5/125um fiber, maximum operating distance is
only 275m). The fiber standard for SFMA7000S85
is 1000Base-SX. (the SFSA7000L31 can work
out to 2KM)SFP (miniGBIC)
optical modules are all equipped with the industry
standard LC optical connector. The capacity of
SFSA7010L31 module is 1.25Gbps (Gigabit rate).
The transceiver is able to work on 9/125um
single-mode fiber for up to 10Km distance. The fiber
standard for SFSA7010L31 is 1000Base-LX.
Using the
FIB1A1000DS series of standalone Giga media
converters can be equipped with miniGBIC/SFP optical
modules.
SFP's or miniGBIC modules are extremely versatile,
working with any active equipment that support the
SFP type of interface: Ethernet switches, routers
and any other networking equipment. Our SFPs have
been tested and found 100% compatible with various
Ethernet switches from major manufacturers like:
Cisco, Nortel, Extreme, ZyXEL, D-Link or Netgear.
Fiber power budget
according to available models
fiber connector is LC
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| SFMA7000S85 |
550m |
850nm |
-9.5 |
-18 |
8.5 |
| SFMA7000L31 |
2Km |
1310nm |
-9 |
-19 |
10 |
| SFSA7010L31 |
10Km |
1310nm |
-9.5 |
-20 |
10.5 |
| SFSA7040L31 |
40Km |
1310nm |
-4 |
-24 |
20 |
| SFSA7050X55 |
50Km |
1550nm |
-4 |
-24 |
20 |
| SFSA7080Z55 |
80Km |
1550nm |
0 |
-24 |
24 |
| SFSA7120Z55 |
120Km |
1550nm |
0 |
-30 |
30 |
| SFSA7010WA |
10Km |
Tx:1310nm Rx:1550nm |
-9 |
-21 |
12 |
| SFSA7010WB |
10Km |
Tx:1550nm Rx:1310nm |
-9 |
-21 |
12 |
| SFSA7020WA |
20Km |
Tx:1310nm Rx:1550nm |
-8 |
-23 |
15 |
| SFSA7020WB |
20Km |
Tx:1550nm Rx:1310nm |
-8 |
-23 |
15 |
| SFSA7040WA |
40Km |
Tx:1310nm Rx:1550nm |
-3 |
-23 |
20 |
| SFSA7040WB |
40Km |
Tx:1550nm Rx:1310nm |
-3 |
-23 |
20 |
| SFSA7060WA |
60Km |
Tx:1310nm Rx:1550nm |
0 |
-24 |
24 |
| SFSA7060WB |
60Km |
Tx:1550nm Rx:1310nm |
-2 |
-25 |
23 |

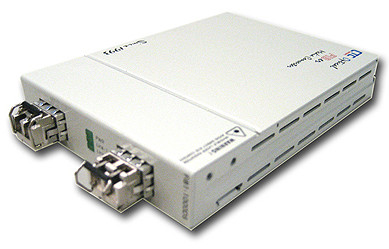

FIB1A1000DS, SFP
to SFP, universal optical media
converter
Product description
The core strength of
FIB1A1000DS media
converter is the ability
to convert any signaling
rate, from 155Mbps to
1.25Gbps, being an
Universal Fiber
Converter - ideal for
any communication
standard like: Fast and
Giga Ethernet, STM-1 and
STM-4, OC-1, OC-3, OC-12
and OC-24, FDDI or Fibre
Channel.
The FIB1A1000DS
Universal Fiber
Converter is the state
of the art versatile
optical fiber media
converter for
1000Base-SX/LX/LHX/ZX,
WDM /CWDM to
1000Base-SX/LX/LHX/ZX or
WDM/CWDM. FIB1-1000DS
can accomodate any type
of miniGBIC (SFP)
optical modules, either
multimode or singlemode
type, being a perfect
choice for applications
requiring change from
multimode to singlemode
fiber operation or to
single strand WDM fiber
needs. Unit is offering
unparalleled flexibility
and easy migration from
short-haul to long haul
fiber connections by
simply changing the
optical module
interface.
The unit can be used
also as a repeater, to
extend fiber optic
communication, unit
working as a 2R device
(reshape and
re-amplify).
The uniqueness of
FIB1A1000DS universal
converter series is
given by the ability to
convert from standalone
media converters to
cards for FRM301
chassis, in matter of
minutes. In an always
changing and growing
networking environment,
such a versatile feature
allows network operators
to switch to higher
density and aggregation
hubs without the need to
purchase new fiber optic
converters. This simple,
but so reliable idea,
made the FIB1-1000DS
Giga Ethernet media
converter one of the
best choices of media
converters for data
carriers and service
providers.
Technical specifications
|
Interfaces: |
two SFP slots
supporting
multi-rate up to
1.25Gbps |
|
Connectors: |
two SFP(Small
Form Pluggable)
slots for
optical modules |
|
SFP slot: |
multi-rate OC1,
OC3, OC12, OC24,
STM-1, STM-4,
FDDI, Fibre
Channel 1G, Fast
and Gigabit
Ethernet rates
supported |
|
Functions: |
2R, reshape and
re-amplify, SFP
2 copies the SFP
1 slot rate; it
is mandatory
that SFP modules
run at same rate |
|
Front LEDs: |
PWR, SFP1 link,
SFP2 link |
|
Power: |
External 90-260V
AC switching
adapter 12VDC@1A
with NEMA1-15(2
blades only), US
type main plug |
|
Temperature: |
0 — 50°C
(Operating); -20
— 70°C (Storage) |
|
Humidity: |
20 — 80% non
condensing
(Operating); 0 —
90% (Storage) |
|
Consumption: |
less than 4W |
|
Dimensions(WxDxH): |
85.6mm x 122.6mm
x 20mm |
|
Weight: |
340g (without AC
adapter) |
|
Compliance: |
CE, FCC part 15
Class A |
|
MTBF: |
50,000 hours |
|
