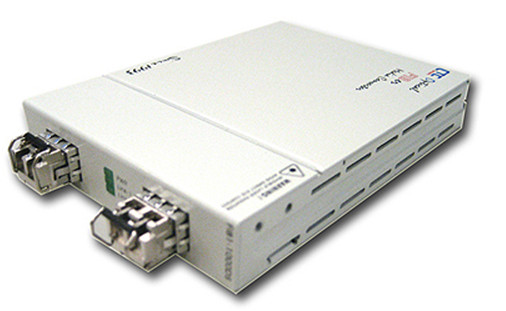

FIB1-1000DS, SFP to SFP,
universal optical media converter
AFIB1-1000DS
The core strength of
AFIB1-1000DS media converter is the ability to
convert any signaling rate, from 155Mbps to
1.25Gbps, being an Universal Fiber Converter - ideal
for any communication standard like: Fast and Giga
Ethernet, STM-1 and STM-4, OC-1, OC-3, OC-12 and
OC-24, FDDI or Fibre Channel.
The AFIB1-1000DS Universal Fiber Converter is the
state of the art versatile optical fiber media
converter for 1000Base-SX/LX/LHX/ZX, WDM /CWDM to
1000Base-SX/LX/LHX/ZX or WDM/CWDM. FIB1-1000DS can
accommodate any type of mini GBIC (SFP) optical
modules, either multimode or single-mode type, being
a perfect choice for applications requiring change
from multimode to single-mode fiber operation or to
single strand WDM fiber needs. Unit is offering
unparalleled flexibility and easy migration from
short-haul to long haul fiber connections by simply
changing the optical module interface.
The unit can be used also as a repeater, to extend
fiber optic communication, unit working as a 2R
device (reshape and re-amplify).
The uniqueness of AFIB1-1000DS universal converter
series is given by the ability to convert from
standalone media converters to cards for FRM301
chassis, in matter of minutes. In an always changing
and growing networking environment, such a versatile
feature allows network operators to switch to higher
density and aggregation hubs without the need to
purchase new fiber optic converters. This simple,
but so reliable idea, made the FIB1-1000DS Giga
Ethernet media converter one of the best choices of
media converters for data carriers and service
providers.
Technical specifications
| Interfaces: |
two SFP slots supporting multi-rate up
to 1.25Gbps |
| Connectors: |
two SFP(Small Form Pluggable) slots for
optical modules |
| SFP slot: |
multi-rate OC1, OC3, OC12, OC24, STM-1,
STM-4, FDDI, Fibre Channel 1G, Fast and
Gigabit Ethernet rates supported |
| Functions: |
2R, reshape and re-amplify, SFP 2 copies
the SFP 1 slot rate; it is mandatory that
SFP modules run at same rate |
| Front LEDs: |
PWR, SFP1 link, SFP2 link |
| Power: |
External 90-260V AC switching adapter
12VDC@1A with NEMA1-15(2 blades only), US
type main plug |
| Temperature: |
0 — 50°C (Operating); -20 — 70°C
(Storage) |
| Humidity: |
20 — 80% non condensing (Operating); 0 —
90% (Storage) |
| Consumption: |
less than 4W |
| Dimensions(WxDxH): |
85.6mm x 122.6mm x 20mm |
| Weight: |
340g (without AC adapter) |
| Compliance: |
CE, FCC part 15 Class A |
| MTBF: |
50,000 hours |
see
Gigabit Multi-Mode to Single-Mode converter SFPs
|
