Temperature Hardened, VDC Power -
 Switching/Bridging Fiber Optic Ethernet Media Converter

The optional high temperature version provides a range of -20°C to 70°C. A hardened temperature version is also available and provides a range of -40°C to 80°C which exceeds NEMA and CALTRANs specifications.


    Hardened Temperature - DC power
                      (Model TC3220)
              Related Products:
TC3105, TC3105R, TC3210, TC3300, TC3705

  • Bandwidth Control (128K to 64M)
  • Web-Based, Telnet or Serial Configuration
  • Hardened Temperature version exceeds NEMA & CALTRANS specs
  • Distances up to 100Km
  • 10/100 Auto-Negotiating
  • Multimode or Single Mode (1300/1550nm)
  • Two-way One Fiber Communication (optional)
  • Built-In Power Redundancy
  • Local Dry Contact Alarm Relay
  • Rackmount or Standalone

Switching/Bridging Ethernet Fiber Media Converter w/Bandwidth Control


TC3220S Standalone/Wallmount


TC3220S Standalone/Wallmount
(Optional 1-fiber version shown)

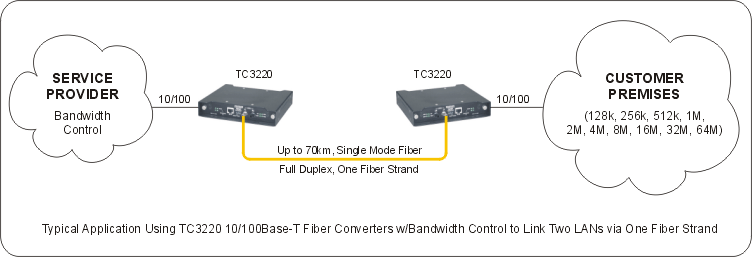

Applications

The TC3220 is frequently used where the Hardened Temperature option enables it to be used in extreme environments.

Top


Description

Featuring Bandwidth Control, the Model TC3220 10/100M 2-port Switching/Bridging Fiber Optic Ethernet Media Converter converts or connects 10/100Base-TX (UTP) networks to 100Base-FX (Fiber Optic) networks.

Bandwidth Control gives users, especially data service providers, the ability to control or limit bandwidth. Data rates for Bandwidth Control can be set at none, 128K, 256K, 512K, 1M, 2M, 4M, 8M, 16M, 32M and 64M. It can be managed through any Web Browser, Telnet or Serial Console. Password protection is provided.

The TC3220 includes a built-in switch that enables distances up to 100km without additional hardware (e.g. Switch or Router). It provides 10/100Mbps Auto-Negotiation and automatically adapts to full or half-duplex mode. Transparent to the network, it operates effectively even during high-demand traffic loads.

Standard temperature range is -10°C to 50°C. The optional high temperature version provides a range of -20°C to 70°C. A hardened temperature version is also available and provides a range of -40°C to 80°C which exceeds NEMA and CALTRANs specifications.

The TC3220 supports single mode distances up to 100 km (1550nm laser) and works with all types and sizes of fiber optic cable. A two-way "one fiber" single mode version is available. Fiber optic connectors are ST, FC or SC. The UTP connector is RJ-45 Female.

Dry contact alarms are provided for connection to remote network management systems. A local loop-back feature, eight LED indicators and an Uplink/Downlink slide switch are provided on the front panel to assist with installation and troubleshooting.

Standard power is 12VDC and includes built-in redundancy. Optional power sources include 24VDC, -48VDC, 125VDC or 115/230VAC with an with an external power cube. The TC3220S is the standalone/wall-mount unit. The TC3220R rack-mount version fits into the TCRM192 or TCRM196 19" rack-mount card cages.

Top


Technical Specifications

Data Rate
10/100 Mbps
Bandwidth Control None, 128K, 256K, 512K, 1M, 2M, 4M, 8M, 16M, 32M and 64M
Optical
Interface 100Base-FX
Transmitter ELED, LASER*
Receiver PIN Diode
Wavelength 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST, FC or SC
Loss Budget*
(1300nm, 1550nm)
Multimode (62.5/125µm): 15dB
Single Mode (9/125µm): 20dB
Electrical
Interface 10/100Base-T Ethernet
Connector (UTP) RJ45 Female
System
Bit Error Rate 1 in 109 or better

* Contact factory for higher requirements
Alarm
Dry Contact Normal OPEN
Visual Indicators
Power Status PWRA, PWRB, Vcc
UTP Signal Status Auto Neg. Detect, TP, 10M, 100M
Optic Signal Status FO, 10M, 100M
Power
Standard 12VDC @ 600 mA
Optional 24VDC, -48VDC, 125VDC, 115/230VAC (with external power cube)
Temperature
Operating 0° to 50°C
Hi-Temp (optional) -20° to 70°C
Extreme Temp (optional) -40° to 80°C
Storage -40° to 90°C
Humidity 95% non-condensing
Physical (Wallmount Base Unit)
Height (3.53 cm) 1.4"
Width (18.14 cm) 7.1"
Depth (16.57 cm) 6.5"
Weight (501 gm) 1.1 lbs.
