Multitech MultiDSU
CSU/DSU

DSU Data Service Units, CSU Channel Service Units

T1/Fractional T1 (T1/FT1), 64K, 56K, or sub-rate digital service support -Synchronous and/or asynchronous equipment supported at single- or multi-rates - T1/FT1 WAN connectivity lines for 56K to 1.536M rates - D4 Super-frame or Extended Super-frame, B8ZS or AMI, and Facilities Data Link (FDL) support. The Multi-DSU family is a combination Data Service Unit/Channel Service Unit (DSU/CSU) used to connect a router, frame relay device, or other DTE device to a high-bandwidth digital service. These DSUs are ideal for corporate point-to-point applications.

see other DSU CSU pages


 Family Features

T1/Fractional T1 (T1/FT1), 64K, 56K, or sub-rate digital service support
Synchronous and/or asynchronous equipment supported at single- or multi-rates
Built-in diagnostics
Two-year warranty

T1 Model Features

T1/FT1 WAN connectivity lines for 56K to 1.536M rates
Sync/1.536M serial port
D4 Superframe or Extended Superframe, B8ZS or AMI, and Facilities Data Link (FDL) support
Statistical reporting
Local and remote configuration using a terminal or modem with the built-in menus
Model Description Region
MTT1DSU   56K-T1 Sync DSU   US/Can

64K Model Features

64K Clear Channel or 56K DDS digital service support
Sync 64K or async 57.6K serial port
Automatic DDS line rate detection
Speed conversion for sub-rate DTE compensation
Model Description Region
MT64DSU   56K-64K Sync/Async DSU   N. Am.

56K Model Features

56K DDS support
Sync/56K or async/19.2K serial port (except MT56DSU-S)
Desktop and rackmount models

Model

Description

Region

MT56DSU2   19.2K-56K Sync/Async DSU   US/Can
MT56DSU-S   56K Sync DSU   US/Can
MT56DSUR   19.2K-56K Sync/Async Rack DSU   US/Can

A DSU/CSU for Connecting DTE Equipment to High-Bandwidth Digital Service

Supports T1/Fractional T1 (FT1), 64K, 56K, or sub-rate digital service

Provides single-rate or multi-rate support for synchronous and asynchronous equipment

Configures easily with DIP switches or a terminal or PC

Includes built-in diagnostics

Conforms with AT&T® and ANSI standards

Includes external and rackmount models

Provides a V.35 interface (all models) and a RS-232C/D interface (some models)

Includes one 115v AC, 50/60 Hz power supply

Features a full-service, two-year warranty

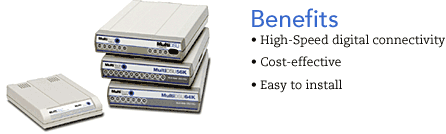

Benefits - High-speed digital connectivity Cost-effective Easy to install
The MultiDSU family is a combination Data Service Unit/Channel Service Unit (DSU/CSU) used to connect a router, frame relay device, or other DTE device to a high-bandwidth digital service. These DSUs are ideal for corporate point-to-point applications.

Features

 MultiDSU





MultiDSU Family Highlights

Competitively Priced.  The MultiDSU family has been streamlined to provide the most important DSU features, while eliminating costly extras you'll never use. This means Multi-Tech DSUs are competitively priced, easy-to-use, yet highly reliable.

Easy to Setup and Maintain.  The MultiDSU family installs easily, and once installed requires little to no maintenance. You simply plug the line service and DTE equipment into the MultiDSU, configure with dip switches or terminal, and you're up and running. And when necessary, built-in test capabilities let you quickly troubleshoot line problems.

Cost-Effective.  Manage high-speed connectivity costs with the right MultiDSU and line service. In limited use applications, a 56K MultiDSU and switched 56K digital dial-up service are ideal. You pay a low monthly fee and only for the time used. To provide 24-hour on-line service, use a 56K or 64K MultiDSU and Digital Data Service (DDS) for up to 56K or 64K Clear Channel® dedicated service over a 4-wire line. For data intensive applications, like video conferencing and LAN-to-LAN routing, a T1 MultiDSU and T1 line provide dedicated 1.544M service.

T1 MultiDSU

The T1 MultiDSU is a low-cost, full-featured DSU/CSU that provides access to digital networks at T1/FT1 speeds. It provides access to traditional dedicated point-to-point T1 services, Frame Relay, SMDS, and ATM services. The T1 MultiDSU is ideal for LAN-to-LAN bridging, Frame Relay, and video conferencing applications.

Supports synchronous equipment at 56K to 1.536M
Connects to T1/FT1 lines for 56K to 1.536M rates
Provides one V.35 DTE interface
Supports D4 Superframe or Extended Superframe and B8ZS or AMI line coding
Supports Facilities Data Link (FDL)
Provides BPV/CRC, ES, SES, FS, OSS, and alarms
Provides a terminal interface for configuring and monitoring

64K MultiDSU

The 64K DSU combines the flexibility of an RS-232 or V.35 DTE interface with 56K dedicated, 56 switched, or 64K DDS line connectivity.

Supports synchronous equipment at 9.6K to 64K and asynchronous equipment at 9.6K to 57.6K
Connects to a 56K switched, 56K dedicated, or 64K Clear Channel DDS line
Provides one RS-232C/D and one V.35 DTE interface
Detects DDS line rate automatically
Supports DTE speed conversion
Includes AT, V.25bis, and DTR dialing

Multi-Rate 56K MultiDSU

This flexible multi-rate 56K DSU supports synchronous and asynchronous equipment. The rackmount or external model is ideal for 56K or sub-rate digital service.

  Supports synchronous equipment at 2.4K to 56K or asynchronous equipment at 2.4K to 19.2K
  Connects to a dedicated 2.4K, 4.8K, 9.6K, 19.6K, or 56K DDS line
  Provides one RS-232C/D and one V.35 DTE interface

Single-Rate 56K MultiDSU

The single-rate 56K DSU is a cost-effective solution to terminate DDS services.

  Supports synchronous equipment at 56K
  Connects to a dedicated 56K DDS line
  Provides one RS-232 or V.35 DTE interface
  Features a compact, durable chassis

Other Multi-Tech Solutions and Services

Single-Source Vendor.  Multi-Tech offers a complete line of communication solutions, including remote access servers, Internet access servers, modems, and serial cards. The MultiDSUs are a perfect complement to applications using Multi-Tech MultiFRADs™ and RouterFinders™ that require a DSU. With 28 years of experience, you can count on Multi-Tech to provide complete end-to-end, reliable solutions.

Comprehensive Service and Support.  The Multi-Tech commitment to service means we provide a two-year product warranty and lifetime service that includes free telephone technical support and 24-hour web site, FTP, and BBS support.

More Information.  Visit our web site at www.multitech.com to learn more about our communications solutions.

Specifications

T1 DSU
Network Service Rate: 56K to T1/FT1 N × 56K or N × 64K (N=1 to 24)
DTE Rates: 56K-1.536M sync
DTE Interface: V.35
Connectors: One 34-pin, one RJ-48, & one RJ-45
Physical Description: 6.0" w × 1.6" h × 9.0" d; 2 lbs 15.2 cm × 4.1 cm × 22.9 cm; 0.9 kg
64K DSU
Network Service Rate: 56K & 64K DTE Rates: 9.6K, 19.2K, 56K, & 64K sync; 9.6K, 19.2K, 38.4K, & 57.6K async
DTE Interface: RS-232C/D and V.35
Connectors: One DB25F, one 34-pin, & one RJ-48S
Physical Description: 6.2" w × 1.4" h × 9.0" d; 2 lbs 15.6 cm × 3.5 cm × 22.9 cm; 0.9 kg
Multi-Rate 56K DSU
Network Service Rate: 2.4K, 4.8K, 9.6K, 19.2K, & 56K
DTE Rates: 2.4K, 4.8K, 9.6K, 19.2K, & 56K sync; 2.4K, 4.8K, 9.6K, & 19.2K async
DTE Interface: RS-232C/D and V.35
Connectors: One DB25F, one 34-pin (external DSU), & one RJ-48S
External DSU Physical Description: 6.2" w × 1.4" h × 9.0" d; 2 lbs 15.6 cm × 3.5 cm × 22.9 cm; 0.9 kg
Rackmount DSU Physical Description: 5.5" w × 0.9" h × 10.5" d; 1.5 lbs 14.0 cm × 2.2 cm × 26.7 cm; 0.7 kg
Single-Rate 56K DSU
Network Interface Line Rate: 56K DTE Rates: 56K sync
DTE Interface: RS-232C/D or V.35
Connectors: One DB25F & one RJ-48S
Physical Description: 4.3" w × 1.0" h × 5.6" d; 8 oz 10.8 cm × 2.5 cm × 14.2 cm; 224 g
All MultiDSUs
Power: 115v AC, 50/60 Hz
Operating Temperature: 32-120°F (0-40°C)
Relative Humidity: 0-95% noncondensing
Approvals: FCC Part 15A & 68, UL, IC CS03, & CUL

Ordering Information

Model Description Region
MTT1DSU 56K-T1 Sync DSU US/Can
MT64DSU 56K-64K Sync/Async DSU N. Am.
MT56DSU2 19.2K-56K Sync/Async DSU US/Can
MT56DSUR 19.2K-56K Sync/Async Rack DSU US/Can
MT56DSU-S 56K Sync DSU US/Can
