The UDS V.3225 is a
high-speed data modem fully compatible with the V.32 specification and capable of
throughput rates up to 19,200 bps. The V.3225 stand alone 62095136, RM16M V.3225
modem card 62095137, V.3225DC modem 62095156 transmits both synchronous and
asynchronous data full duplex over both dial-up and
leased lines.
- Fully compatible
with the CCITT V.32 specification
- Maximum throughput
rate of 19,200 bps using
MNP Level 5 data compression and error control
- Automatically adjusts data rate to
9600, 4800, 2400,
1200 or 300 bps
(CCITT V.32, V.22bis and Bell 103)
- Operates full duplex over dial-up lines or
- 2-wire or
4-wire leased lines in synchronous
or asynchronous mode Tolerates high line noise using trellis-coded
modulation at 9600 bps
- Automatic dial back-up for dedicated lines
- Automatic dial and
- answer- Hayes-' compatible "AT" command
set
- Easy-to-use LCD display for set-up and operation
|
V3225 stand alone - 62095136
RM16M V3225 modem card - 62095137
V3225DC modem - 62095156
|
| |
jump to
part
numbers |
Description
The UDS V.3225 is a high-speed modem ideally suited for
applications requiring high data throughput and failure free operation. The modem adheres
to both the CCITT V.32 standard for data transmissions up to 9600 bps (bits per second)
and to the MNP Levels 2 through 5 specifications for error control and data compression.
The V.3225 has a maximum throughput rate of 19,200 bps with outstanding data integrity.
The V.3225 transmits full duplex,
synchronous or asynchronous data at 9600, 4800, 2400 or 1200 bps and asynchronous data at
300 bps. An intelligent modem, the device automatically adjusts the data rate and
modulation scheme to match the remote V.32, V.22bis or Bell 103 modem with which data is
being exchanged.
For reliable performance, the V.3225's
advanced microprocessor design incorporates near- and far-end echo canceling, automatic
adaptive line equalizing and trellis coding techniques. The V.3225 includes auto dial and auto answer features
for convenient, easy use. The auto dialer is compatible with the industry standard Hayes
"AT" command set. Dial back-up from leased line to dial line is included to
allow the unit to operate in the event of a leased line failure.
Integral diagnostics aid the user in
isolating communication faults to the data communications equipment, data terminal
equipment or the phone line. For easy setup and for determining the status of modem
operation, the V.3225 data modem features a 2-line by 16-character liquid crystal display
with three control pushbuttons and six LED indicators.

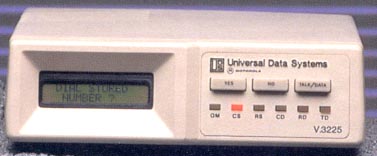

The V.3225 is both a standalone unit (shown) or a plug-in
card for use in the Universal Data Shelf- enclosure.
Test Features
• Analog Loop-back
• Analog Loop-back with Test Pattern
• Local Digital Loop-back
• Remote Digital Loop-back
• Remote Digital Loop-back with Test Pattern
• Test Pattern Generation/Checking
V.3225 Data Modem
Specifications
- Data Rates:
CCITT V.32 compatible 9600 or 4800 bps; CCITT V.22bis compatible 2400 or 1200 bps; Bell
103J compatible 300 bps; (4-wire V.32 mode only)
- Operation:
Full duplex over 2-wire dial-up or 2- or 4-wire leased lines
- Modulation:
QAM (9600, 4800 and 2400 bps); Trellis (9600 bps); PSK (CCITT V.22 1200 bps); FSK (Bell
300 bps)
- Carrier Frequency:
1800 Hz, CCITT V.32; 1200 Hz Originate, 2400 Hz Answer, CCITT V.22bis
- Transmitter Output Levels:
Programmable 0 to -15 dBm in 1 dBm increments for leased line. An external programming
resistor option may be selected for dial-up.
- Carrier Detect Level:
Dynamic
- Line Equalization:
Automatic Adaptive
- Timing:
Internal, external or receive
- Internal Transmit Clock Frequency:
Selected bit rate ±0.01 %
- Testing:
V.54 Remote Loop-back control, 511 PN Pattern (per V.52)
- Environmental:
0 to 50C, 95% relative humidity, non-condensing
- Mechanical:
Width: 7.0 in., Height: 2.5 in., Depth: 9.6 in.
- Power Requirements:
115 VAC ±1 0%, 47-63 Hz, 10 Watts, maximum
Certification: Appropriate FCC and DOC certifications in place or
pending. UL and CSA certifications in place or pending where applicable.
Easy-to-use controls and indicators For easy set-up and use, the UDS
V.3225 can be completely programmed using three front panel keys and a liquid crystal
display. Pressing the keys as prompted by the menu programs all modem parameters including
strap options. The display is also used for system status, keeping the user informed on
call status and modem operations.
Controls:
Yes:
Push "Yes" to answer affirmatively to questions on the LCD
No:
Push "No" to answer negatively to questions on the LCD.
Talk/Data:
Push "Talk/Data" to end the programming sequence and to determine whether the
telephone line is to be connected to the telset or to the modem.
Indicators
- QM (Quality Monitor):
On when the signal quality of the modem has diminished. QM is only indicated when the
probable bit error rate (BER) is greater than 1 X 10-1.
- CS (Clear to Send):
On when the DCE (Data Communications Equipment -the modem) is ready to accept data from
the terminal (DTE).
- RS (Request to Send):
On when the DTE (Data Terminal Equipment - PC or terminal) provides a request to send
signal
- CD (Carrier Detect):
On when the received audio signal is detected.
- RD (Receive Data):
On when the modem is receiving data. The RD indicator is on for a space (off for a mark)
at the receive data output activity.
- TD (Transmit Data):
On when the modem is transmitting data. TD is on for a space (off for a mark) at the
transmit data input, to indicate transmit input data activity.
V3225 modem stand alone - 62095136
RM16M V3225 modem card - 62095137
V3225DC modem stand
alone - 62095156
|
these are PDF 5.0 files -
you may need the newest version of Acrobat |
V.3224/V3225 manual - chapters
V.3225/V.3225L manual
(you may want to rotate pages for viewing with Acrobat V5.0
these pages are setup to print)
- jump to chapter Table
of Contents
- jump to chapter Chapter 1
Introduction
- Describes modem functions and features;
- jump to chapter Chapter 2
Installation
- Contains instructions for mechanical and
electrical installation of the modem;
- jump to chapter Chapter 3
Option
Selection - Describes both hard strap and front panel
display options;
- jump to chapter Chapter 4
Operation
- Describes standard control and indicator
functions, dialing procedures, and secure operation;
- jump to chapter Chapter 5
Asynchronous
Operating Commands -
Describes commands and displays;
- jump to chapter Chapter 6
Status
Registers - Describes status registers;
- jump to chapter Chapter 7
V.25
bis Auto-dialer - Defines operation
and commands for the V.25 bis auto-dialer;
- jump to chapter Chapters 8 and 9
8.
Protocols - Describes MNP error control and flow control
protocols;
9. Maintenance - Provides information for maintaining the
modem;
- jump to chapter Appendix A-B-C-D
A.
Modem Specifications;
B. Phone Jack Descriptions;
C. Fault Isolation Procedure;
D. Command Index and Defaults;
- jump to chapter Appendix E-F and Index
V32 V32E V32EL
V3225 V3225L V3225
rack cards RM16MV32 RM16MV32E RM16MV32EL RM16MV3225 RM16MV3225L
UDS V32 series
modems are a high-speed data modem fully compatible with the V.32 specification
and capable of throughput rates 9,600 to 19,200 bps. T
- V.3225 - Part No: 62095136
9600 bps modem with maximum data rates of 19,200 bps,
MNP Levels 2-5 with V.22 bis, V.22, 103 compatibility; automatic dial
restorable; LCD.
- V.3225L modem - Part No: 62095290
Same functionality as the V.3225; LED.
- V.32 modem - Part # 62095086
V.32 external LARGE SIZE, async, sync, dial-up,
leased line modem up to 9600BPS speed.
V.32E modem 9600 bps - Part No: 62095104
V.32 modem; with V25bis, autodial; LCD; touch configure; V.22bis V.22, Bell
103.
up to 9600bps
speed.
V.32EL modem - Part No: 62095284
Same functionality as the V32E; LED only; configure through AT command set.
RM16M V.3225 modem - Part No: 62095137
Card modem for Universal Data Shelf; 9600 bps modem with maximum data rates of
19,200 bps; MNP level 2-5 with V.22 bis, V.22, 103 compatibility; automatic
dial restoral; LCD.
RM16M V.3225L modem - Part No: 62095289
Same functionality as the RM16M V.3225; LED.
RM16M V.32E modem - Part No: 62095337
Card modem for the Universal Data Shelf; 9600 bps V.32 modem; V.22 bis
V.22,103 compatible; LCD.
RM16M V.32EL modem - Part No: 620952283
Same functionality as the RM16M V.32E; LED, configure through AT command set.
V.3225DC modem - Part No: 62095156
9600 bps modem with maximum data rates of 19,200 bps, MNP Levels 2-5 with V.22
bis, V.22, 103 compatibility; automatic dial restorable; LCD. 12 to 60 VDC
power
