UDS V.32 high-speed, 9600 bps data modem V.32 2 or 4 wire lease line and dial

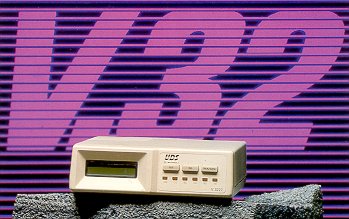

UDS V.32 modem

The UDS V.32 is a high-speed, 9600 bps data modem fully compatible with the V.32 specification. The V.32 transmits both synchronous and asynchronous data full duplex over both dial-up and leased lines.

Fully compatible with the CCITT V.32 specification

Automatically adjusts data rate to 9600,4000,2400, 1200 or 300 bps (CCITT V.32 and V.22bis and Bell103)

Operates full duplex over dial-up lines or 2-wire or 4-wire leased lines in synchronous or asynchronous mode

Tolerates high line noise using trellis-coded modulation at 9600 bps

Automatic dial back-up for dedicated lines

Automatic dial and answer -- Hayes"' compatible "AT" command set

Easy-to-use LCD display for set-up and operation

part numbers
RM16M card modem 62095104
stand alone 62095086 or 62095284

The U DS V.32 is a high-speed modem well suited for applications requiring extensive use of data communications over dial-up or leased lines. The modem adheres to the CCITT V.32 standard for data transmissions missions up to 9600 bps (bits per second) and transmits data with outstanding data integrity.

The V.32 transmits full duplex, synchronous or asynchronous data at 9600,4800,2400 or 1200 bps and asynchronous data at 300 bps . An intelligent modem, the device automatically adjusts the data rate and modulation scheme to the remote V.32, V.2 2 bis or Bell 103 modem with which data is being exchanged.

For reliable performance, the V.32's advanced microprocessor design incorporates near- and far-end echo canceling, automatic adaptive line equalizing and trellis coding techniques. The V.3 2 includes auto dial and auto answer features for convenient, easy use. The auto dialer is compatible with the industry standard Hayes "AT" command set. Dial back-up from leased line to dial line is included to allow the unit to operate in the event of a leased line failure.

Integral diagnostics aid the user in isolating communication faults to the data communications equipment, data terminal equipment or the phone line. For easy setup and for determining the status of modem operation, the V.32 data modem features a 2 line by 16 character liquid crystal display with three control pushbuttons and six LED indicators.
The V.32 is a standalone unit that can become a plug-in card for use in the Universal Data Shelf enclosure.

Test Features
• Analog Loopback
• Analog Loopback with Test Pattern
• Digital Loopback
• Remote Digital Loopback
• Remote Digital Loopback with list Pattern
• Test Pattern Generation/Checking
